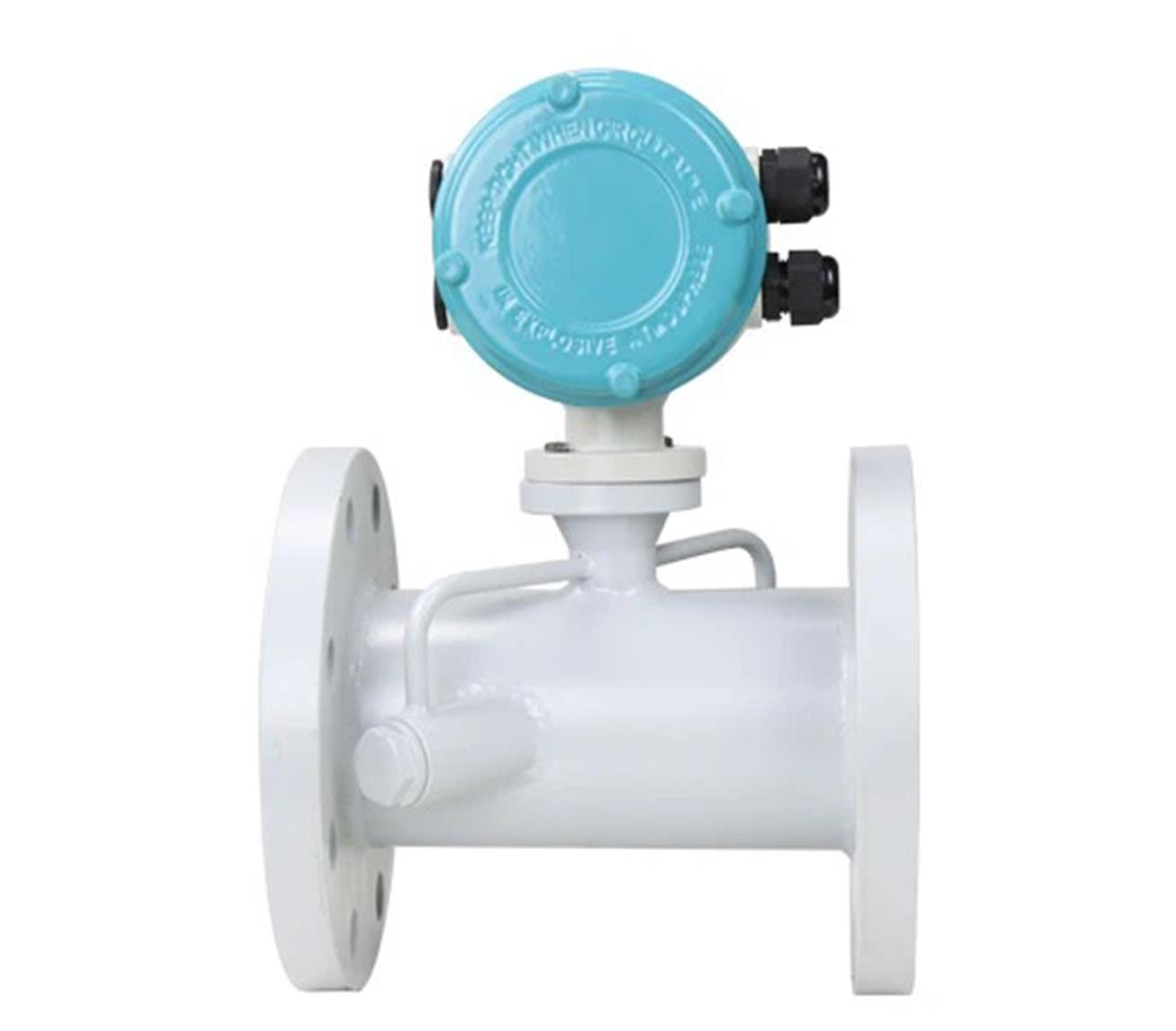

One type of affordable liquid flow meter is the TSonic 301 Inline Flange ultrasonic flow meter, which is primarily used to measure different types of pure liquids, including drinking water, alcohol, sea water, and clean water. Additionally, it is appropriate for industrial environments where clean, homogeneous liquids with low concentrations of suspended particles or gases need to have their flow and heat continuously measured.

                                                            Size
                                                            DN15~DN6000

                                                            Accuracy
                                                            Better than ±1.0%

                                                            Velocity range
                                                            0~±10m/s

                                                            Liquid temperature
                                                            0~160℃

                                                            Liquid Type
                                                            Water, sea water, waste water, alcohol, beer, various kinds of oil etc which can conduct ultrasound single uniform liquid

                                                            Pipe material
                                                            Steel, stainless steel, cast iron, copper, PVC, aluminum, FRP etc, all kinds Of dense pipeline, can be liner inside

                                                            Output signal
                                                            1 channel 4-20mA output, inpedence 0-1K ; 1 channel OCT pulse output, pulse width 6-1000ms, (default is 200ms); 1 channel relay output

                                                            Communication
                                                            RS485 MODBUS RTU

                                                            Protection
                                                            IP65

                                                            Power Consumption
                                                            1.5W

                                                            Power supply
                                                            DC8-36V or AC85-264V

                                                            Input Signal
                                                            4-20mA input Connect with three wire PT100, can achieve heat measurement

Flange Ultrasonic Flow Meter Applications
A temperature sensor can be connected to an inline ultrasonic flow meter to create a single calorimeter, which is widely used in the food, oil and gas, chemical, water treatment, trade settlement, and power industries.

Flange Ultrasonic Flow Meter Benefits

More accurate than ±1.0%.
Low cost, excellent performance, and high dependability.
measurement of flow in both directions.
No wear, no pressure loss, no moving parts, and no maintenance required.
Conductivity and nonconductivity liquid measurements Show the heat, total flow, instantaneous flow, positive flow, and negative flow.
To guarantee excellent measurement accuracy, the sensor is fitted in highly precise machined pipe sections before they leave the factory.
