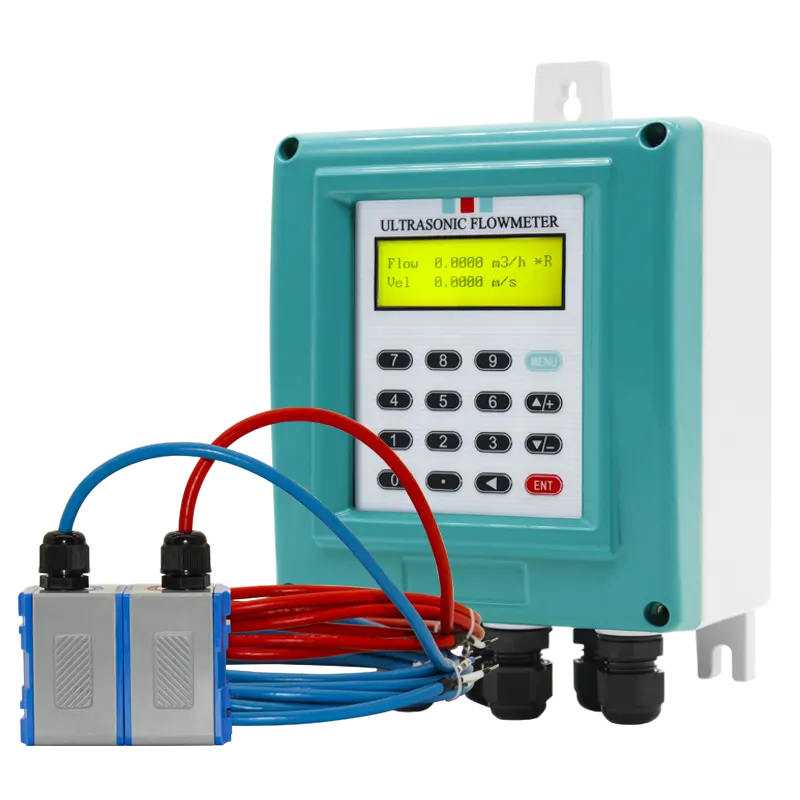

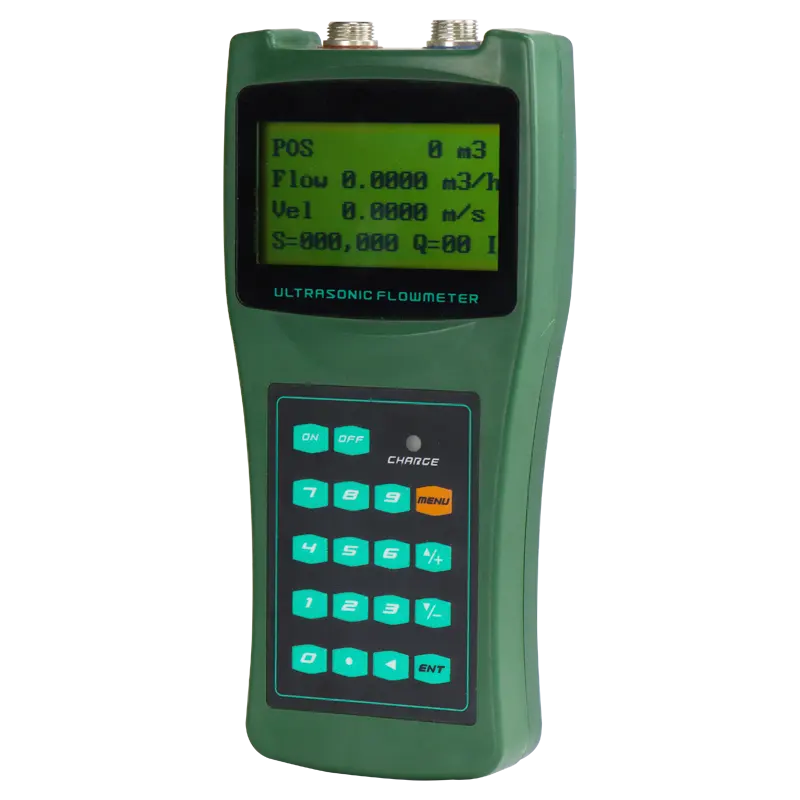

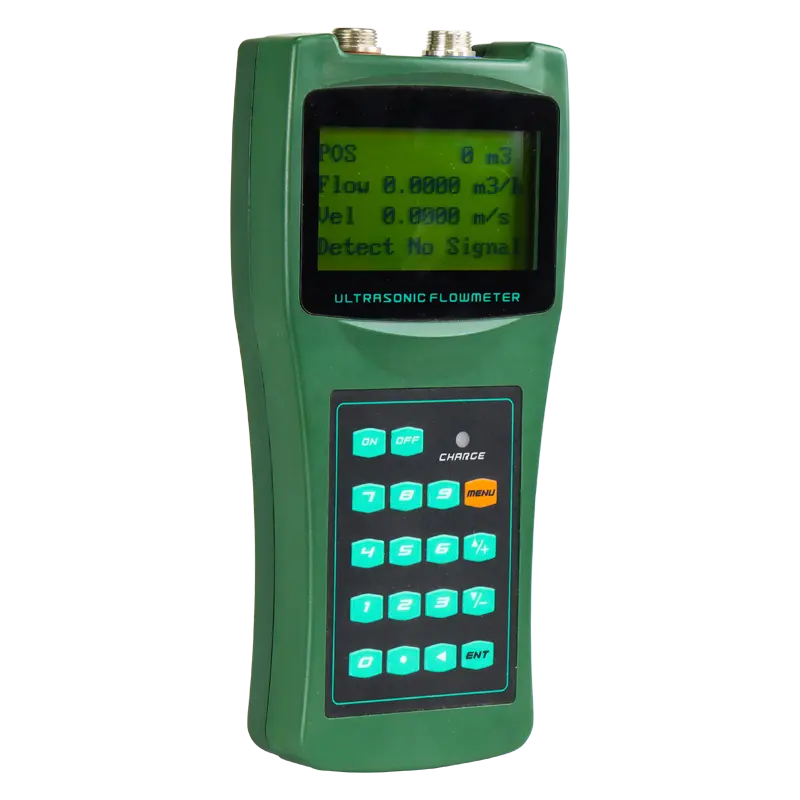

Wall Mount Type Ultrasonic Flow Meter

(0 reviews)

Get Price

(1027) Views

(0) Contacts

Contact Company

WESDOM

Henan, China

(1963) Views

(4) Contacts

Description of Ultrasonic Flow Meter

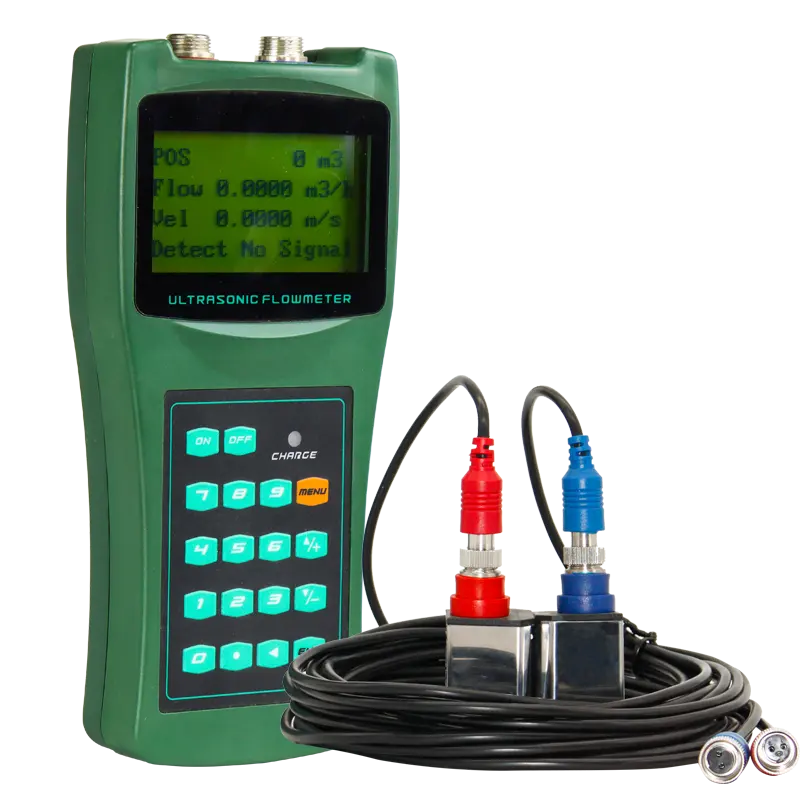

Wall mount type ultrasonic flow meter is designed to measure the fluid velocity of liquid within a closed conduit. The transducers are a non-contacting, clamp-on type, which will provide the benefits of non-fouling operation and easy installation.
Wall mount type ultrasonic flow meter principle working:

The flow meter operates by alternately transmitting and receiving a frequency-modulated burst of sound energy between the two transducers and measuring the transit time that it takes for sound to travel between the two transducers. The difference in the transit time measured is directly and exactly related to the velocity of the liquid in the pipe.
Installation of Ultrasonic Flow Meter
The state of the pipeline for measuring the flow will greatly affect the measurement accuracy, the detector installation location should be selected in a place that meets the following conditions:
1. It must be ensured that the straight pipe section where the probe is installed is: 10D on the upstream side(D is the pipe diameter), SD or more on the downstream side, and there must be no factors that disturb the fluid (such as pumps, valves, throttles, etc.) in the 30D on the upstream side. And try to avoid the unevenness and welding position of the pipeline under test.
2. The pipeline is always full of liquid, and the fluid should not contain bubbles or other foreign objects. For horizontal pipelines, install the detector within 245 of the horizontal centerline. Try to choose the horizontal centerline position.
3. When installing the ultrasonic flow meter, need to input these parameters: pipe material.pipe wall thickness and pipe diameter. Fluid type, whether it contains impurities or bubbles, and whether the tube is full.

                                                            Accuracy
                                                            11% of reading at rates >0.2 mps A

                                                            Repeatability
                                                            0.2%

                                                            Principle
                                                            Transmit Time

                                                            Velocity
                                                            32mms

                                                            Pipe Size
                                                            DN15mm-DN6000mm

Application of Ultrasonic Flow Meter

This flow meter is widely used in tap water, heating, water conservancy, metallurgy chemical, machinery, energy, and other industries. It can be used for production monitoring, flow verification, temporary detection, flow inspection, water meter balance debugging, heating network balance debugging, and energy-saving monitoring, and it is a necessary tool and meter for timely flow detection.
Water Treatment
Paper Industry
Food Industry
Chemical Monitoring
Pharmaceutical Industry
Metallurgical Industry.
THE
Petrochemical
Public Drainage
