UV-C LEDs perform the same functions as conventional mercury-vapor lamps but have many benefits in comparison

Contact Company

Agua Topone

Zhejiang, China

(713) Views

(14) Contacts

The UVC region of the UV spectral range refers to wavelengths between 100 nm to 280 nm. ln the case of disinfection, the optimum wavelength is in the region of 260 nm to 270 nm, with germicidal efficacy falling exponentially with longer wavelengths.
UV-C LED technology is set to provide new, improved, and expanded solutions in both air and water treatment.

Input Water Quality

UV led for water disinfection is extremely effective against microorganisms but only if the UV light can pass This means that the quality of your water is very important in order to ensure healthy water exceeds the listed parameters AGUA TOP ONE highly recommends that appropriate pretreatment equipment be installed (equipment required will depend on parameters being treated

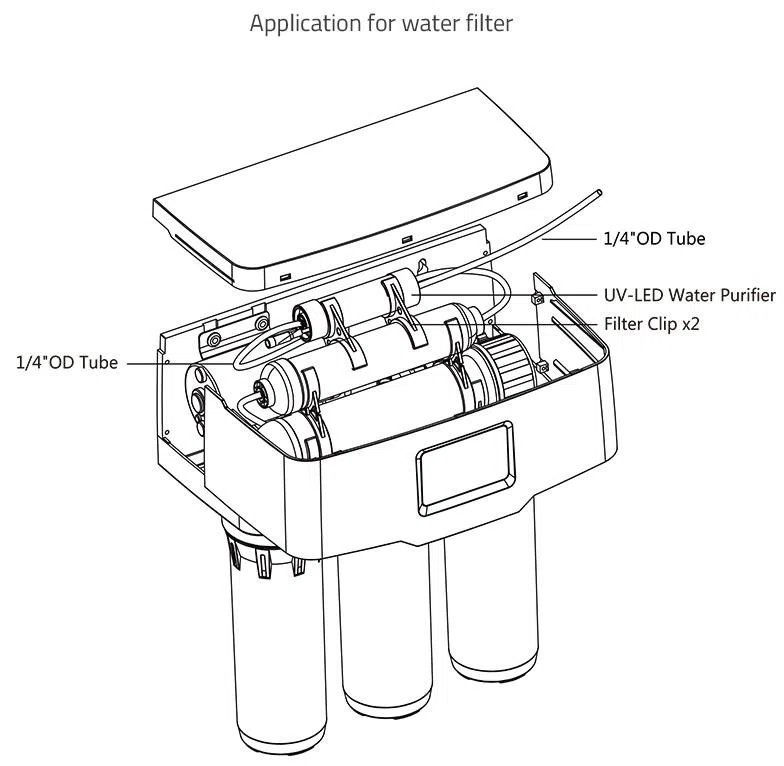

AGUATOPONE UV led for water disinfection includes a robust design and small footprint, which make this technology appropriate for POU applications where traditional water treatment technologies may not be optimally used.
UV LEDs can be on when water is treated and off when it is not being treated.
As a result, for POU applications where water is being used and treated intermittently, UV LEDs will likely not require replacement for the entire life of the device (resulting in lamp replacement cost savings) and consume only a fraction of the energy (resulting in considerable energy cost savings).

                                                            UV transmittance
                                                            <93%

                                                            Hardness
                                                            <120 (mg/L)

                                                            Manganese
                                                            <0.05 (mg/L)

                                                            Iron
                                                            <0.3 (mg/L)

                                                            Temperature
                                                            0-45,0(32-132 °F}

                                                            Tannins
                                                            <0.1 (mg/L)

                                                            Turbidity
                                                            <1 (NTU)

                                                            Model
                                                            AGLED-40001

                                                            Flow rate@(16mj/cm² at95% UVT)
                                                            1GPM(4LPM)

                                                            UVT(%)
                                                            Recommend above 90%

                                                            Max Pressur
                                                            8bar(116PSI)

                                                            Max amblent temperture
                                                            50℃(122℉)

                                                            Operating water temperature
                                                            0-45℃ (32-132℉)

                                                            water connections
                                                            1/4″OD tube

                                                            Input Voltage
                                                            12-24VDC

                                                            Input Power
                                                            8W

                                                            LED life
                                                            1000hrs
