Multi-Media Filters
(0 reviews)
Get Price
(31) Views
(0) Contacts


Contact Company

Levalve Technology Co., Ltd.
Anhui, China
(135) Views
(0) Contacts

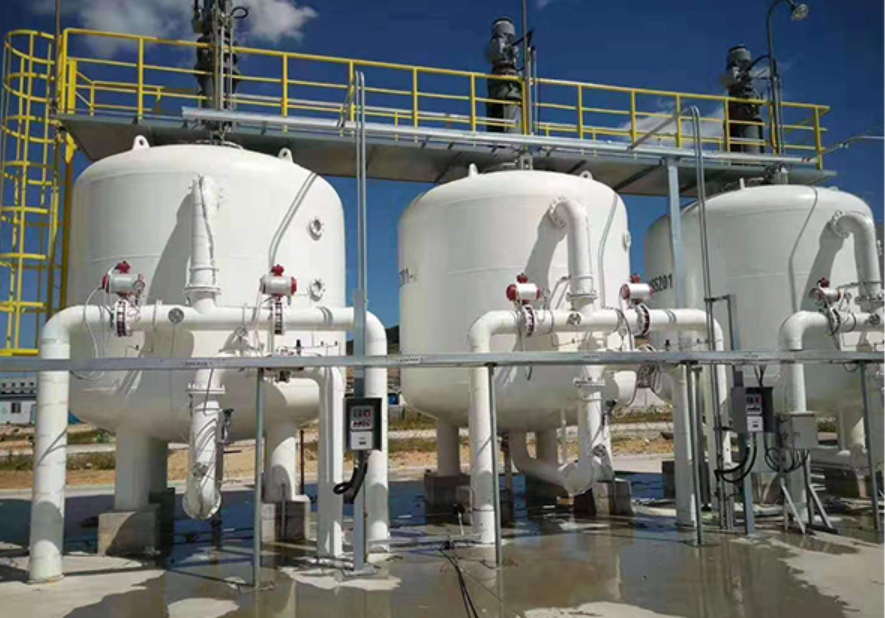

Multi-media filters are designed to enhance water quality by effectively removing organic and inorganic particles smaller than 5 μm. These pressure filters are filled with high-quality quartz sand and anthracite media, leveraging the porous adsorption of anthracite for efficient contaminant removal. Compared to single-media filters, they offer greater dirt-holding capacity and improved performance.
With their simple structure, mature technology, and high cost-effectiveness, FDZ multi-media filters are widely used across municipal, industrial, and commercial water treatment applications.
System Design of Multi-Media Filter
The FDZ series consists of one or more standard filter units.
Flow Process: Raw water passes through an internal distributor → filter media layers → water collector, where contaminants are efficiently removed.
Standard Range: Diameters from 32" (800 mm) to 126" (3200 mm), with a general height of 60" (1500 mm).
Custom Options: Units can be tailored for specific requirements. By installing multiple filters in parallel, system capacity can be infinitely expanded.
The FDZ system ensures long-term stable operation, characterized by high flow rates, low-pressure drop, and minimal maintenance requirements.






Applications of Multi-Media Filter
  1. Municipal water supply and treatment
  2. Industrial water purification
  3. Pretreatment for reverse osmosis (RO) and other advanced processes
  4. Process water recycling systems
  5. Groundwater and surface water treatment


Performance characteristics of the Multi-Media Filter
Modular Design: Multiple filter units can be flexibly combined to meet flow rate and space requirements.
Efficient Backwash System: No separate backwash pump required; easy operation with automatic start triggered by time or pressure difference.
Continuous Operation: Units backwash in sequence, ensuring uninterrupted water production.
Optimized Backwash Efficiency: Even water distribution, no dead angles, short backwash cycle, and low water consumption.
Compact Footprint: Flexible unit arrangement adapts to available land area.
Eco-Friendly: Energy-efficient and environmentally sustainable operation.
