Filtration is the process of eliminating suspended particles from water, including colloidal and course particles, which adsorb undesirable colors, odors, and other substances. Filtration may seem straightforward, but it's actually one of the most advanced treatment methods. The process is not entirely explicable and is not always connected to exact physics laws.
The process by which an impurity is transferred from a liquid to a solid's surface is known as adsorption. The process by which a suspended, water-borne particle adheres to a solid surface is known as adsorption. In contrast to occlusion, adsorption eliminates occluded particles from a process flow because they are too big to fit through a physical barrier in the media. The majority of the time, weak chemical interactions enable adsorbed particles to stick to a solid's surface. Adsorbed particles attach themselves to a media's surface and become a weakly held component of the solid. When occluded particles are trapped against a restrictive surface, the water's flow holds them in place.
In general, "depth filtration" refers to filtration that takes place throughout the media layer as a result of suspended particles adhering to the media's surface. Instead of only using the media bed surface (surface filtration or occlusion), the full thickness of the media layer is utilized. Only the media bed's influent surface is truly eliminating particles during surface filtration.
In order to achieve efficient filtration, particles must slow down enough to be held on the surface of a substance. Due to a lack of surface interaction time, high flows may inhibit adsorption. Second, adsorbed particles can be sheared off the filtering media by a high enough flow.
Removal of Chlorine:
Chlorine removal is another application for the filtration process in addition to particle filtration.
A unique type of carbon known as activated carbon is created by heating organic materials—like coal, walnut shells, and coconut shells—without oxygen. The majority of the organic material is pyrolyzed by the heat, which also releases trapped moisture and gases, leaving the residual material with a slight positive surface charge.
The ability of an activated carbon bed to adsorb or electrostatically hold particles allows it to remove dissolved organics, colloidal particles, small suspended particles, and chlorine. Weak electrostatic attraction between the particles' negative surface charge and the carbon's positive surface charge would allow these particles to move between the carbon grains. Additionally, particles may become trapped in the activated carbon's porous structure, where they will be weakly held. It should be noted that activated carbon filters are rarely used in this way and are not very effective at eliminating the majority of organic compounds from water.

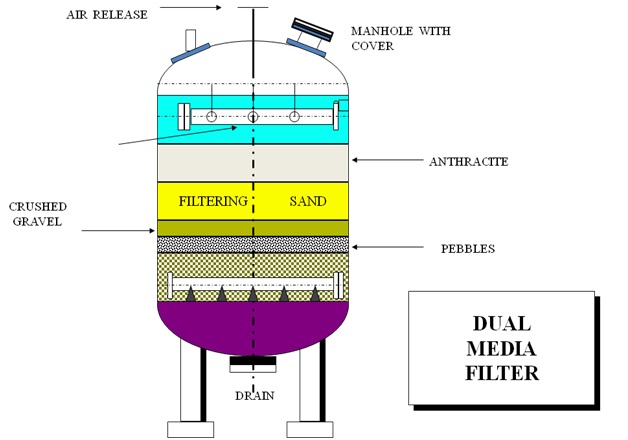

In industrial filtration applications, pressure vessels with sand or other loose filtration media are frequently utilized. These vessels can be made of carbon steel or FRP (smaller flows). The backwash flow is used to clean these filters. The filter bed is raised and fluidized to remove accumulated particles during a backwash cycle. The filter bed is given time to settle following the backwash cycle. The filter bed media will classify as it settles, with the lightest particles settling on top and the heaviest particles settling first.
Sometimes air scour isalso employed to facilitate backwashing. The air scrubs against the media, loosening the dirt particles attached to it. There is less backwash waste water generated when air scouring is employed.
As can be seen in the aforementioned images, the filters come in both vertical and horizontal configurations. The use of horizontal filters is used to filter large flows. Depending on the application, various filter media are used, including pumice, garnet, anthracite, and fine sand.

Applications:
Turbidity and suspended solids are eliminated from the service water through media filters. A media filter is required if the service water's turbidity is higher than 1 NTU. In order to shield downstream equipment from suspended solids, the media filter is typically situated at or close to the upstream of the water treatment system.
Some typical applications for filters in water treatment include the following:
