Stainless Steel Ball Valve With Handle Lock

(0 reviews)

2 USD

(231) Views

(0) Contacts

Category: Ball Valves

>= 100 pieces
$2.00

Contact Company

Anhui Sunval International Trading Co., Ltd.

Anhui, China

(939) Views

(0) Contacts

Stainless steel one-way ball valve, stainless steel ball valve

Optional body structure

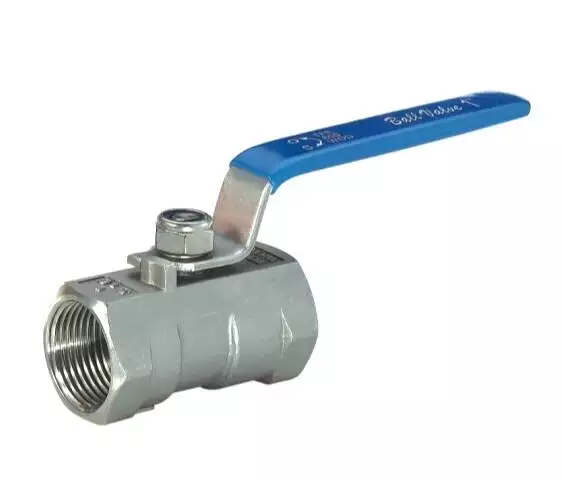

1 PC: Economical and Practical

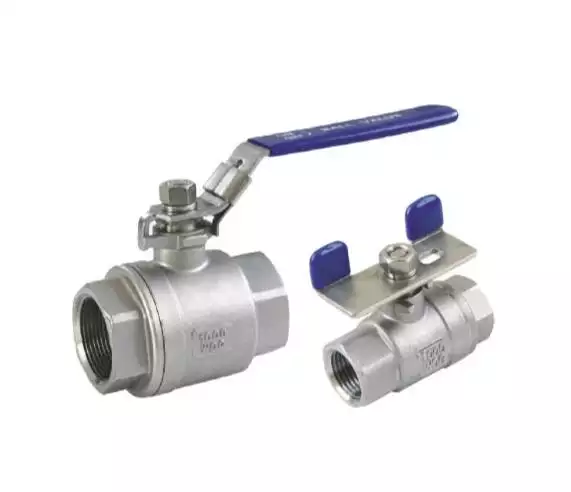

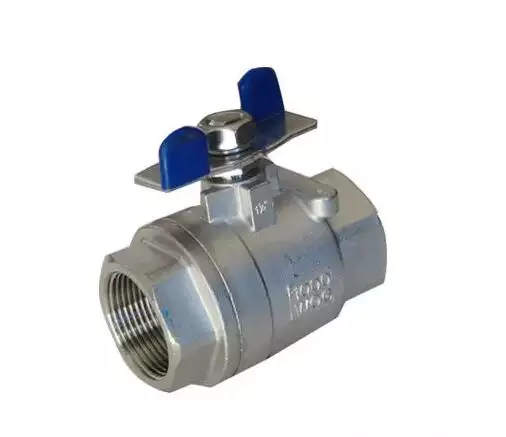

2 PC: Easy to repair, Popular choice

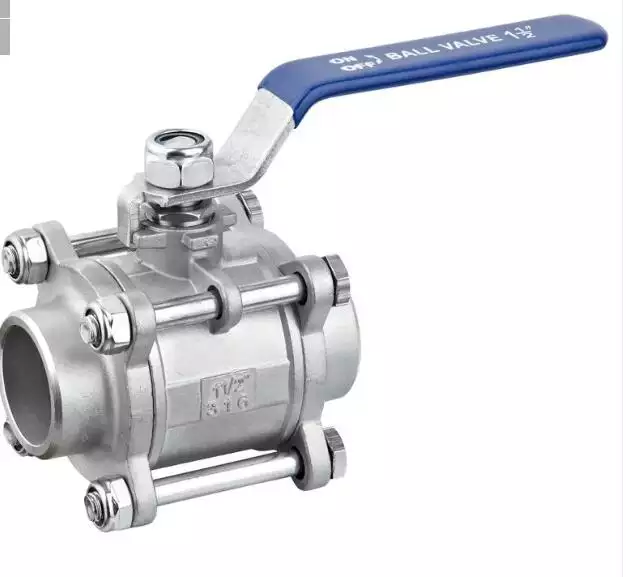

3 PC: Swing-out construction makes the valve easy to repair in line
INVESTMENT CASTING BODY

Improves dimensional control and reduces porosity
Full Port
Full port construction improves flow characteristics for greater process efficiencies
Optional Locking Device

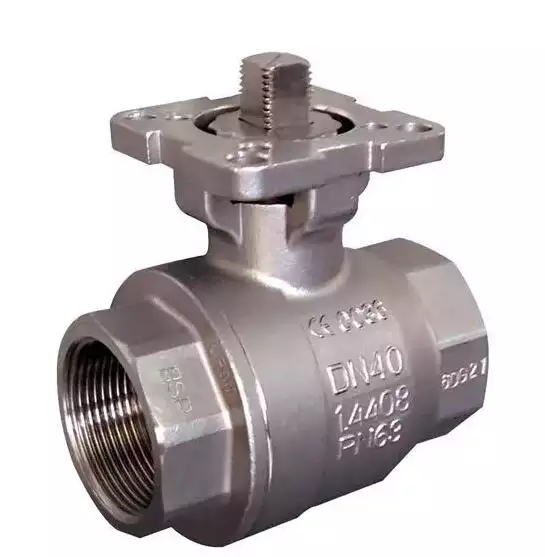

Dual Pattern ISO 5211 Direct Mount Pad

No bracket or drive coupling is needed for automation
Eliminates exposed moving parts for the safer work environment
Direct drive eliminates play and improves actuator positioning
A dual pattern pad fits a wide range of actuator sizes

Corrosion Resistant

Blow-Out-Proof Stem
The stem is bottom loaded to prevent removal during operation
Thread Connection: BSPT, NPT, BSP, etc.
Size Range: 1/4" (DN8) - 4" (DN100)
All valves shell and seat tested to ANSI/ASME B16.34, API 598 and MSS-SP-110
Connected flange specification would comply with ASME B16.5

                                                            Type
                                                            BALL VALVES

                                                            Temperature of Media
                                                            Normal Temperature

                                                            Power
                                                            Manual

                                                            Media
                                                            Water

                                                            Structure
                                                            BALL

                                                            Port Size
                                                            1/4

                                                            port type
                                                            full port

                                                            Connection
                                                            Female Thread

                                                            locking device
                                                            Optional

                                                            technology
                                                            Investment Casting
