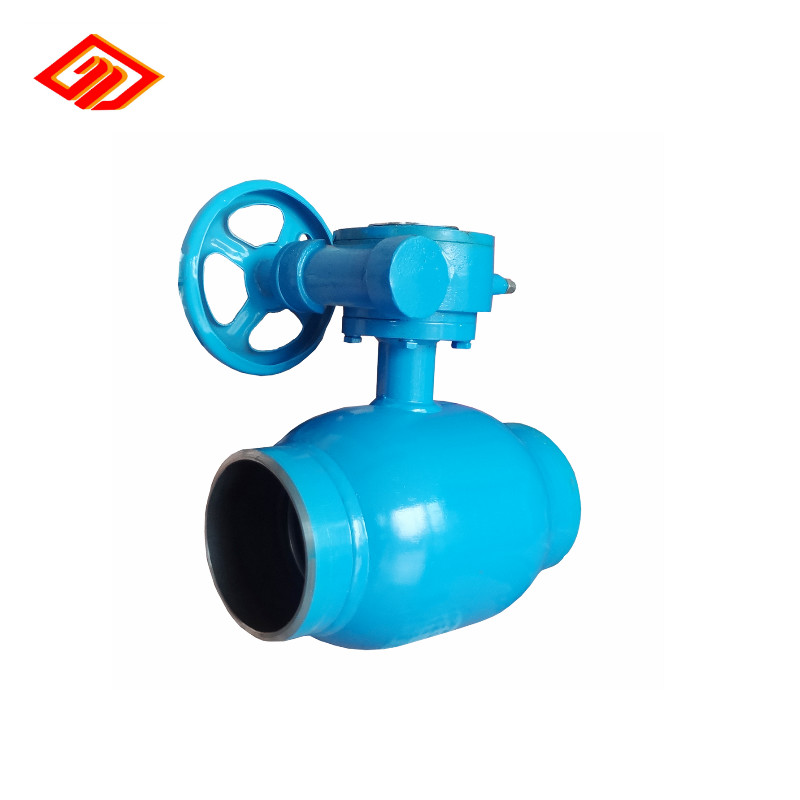

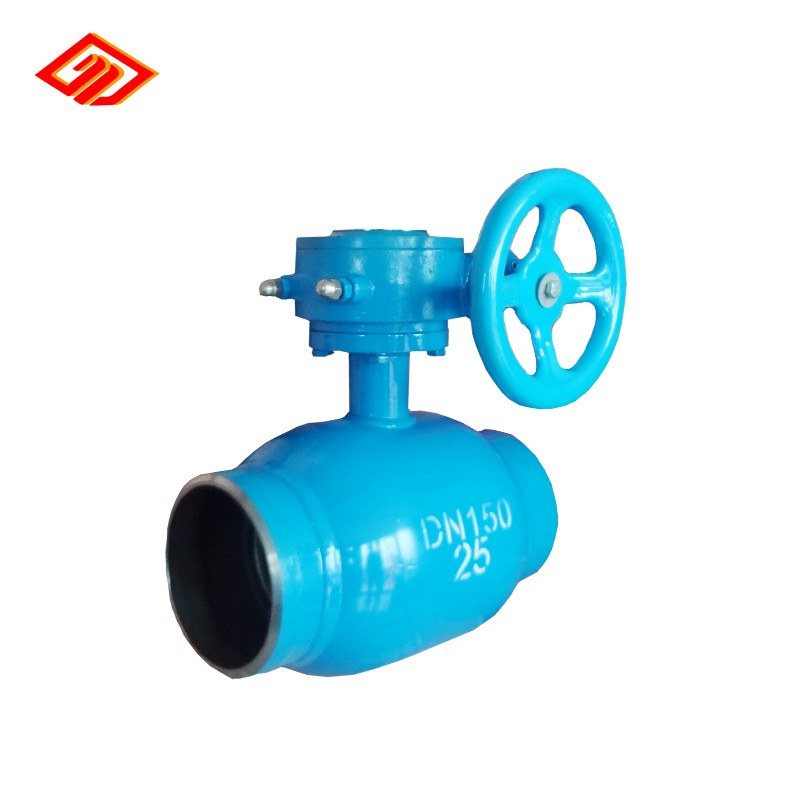

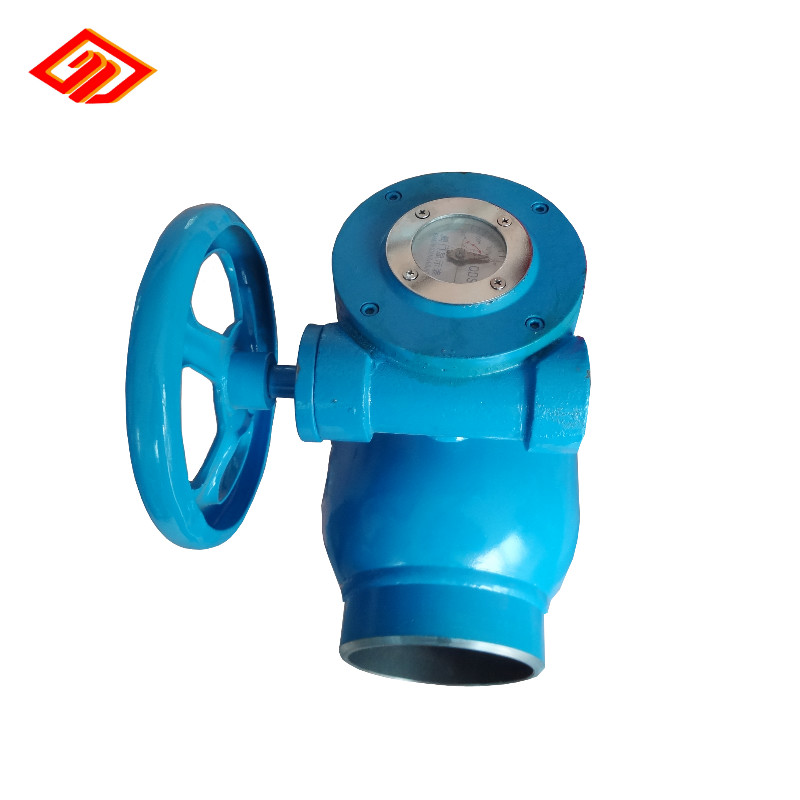

Q361F-16C Worm Gear Driven Float Fully Welded Ball Valve

(0 reviews)

32.8 USD

(271) Views

(0) Contacts

Category: Ball Valve

1 set/sets

$32.80 - $439.90

Contact Company

Xi'an Liangjing Valve Co., Ltd.

Shaanxi, China

(665) Views

(8) Contacts

The fully welded ball valve body is welded from a steel pipe.
The ball pad is made of reinforced polytetrafluoroethylene.
The valve stem is explosion-proof.

Basic feature:

The integral welded ball valve is composed of a fully welded body and carbon-reinforced fleuron gasket, which can be operated frequently with impurities and chemicals for a long time.
Integral welded ball valve including fine stainless steel ball can ensure years of open and close freely, reliable operation.
Integral welded ball valve with floating ball structure, bevel elastic seal ring to ensure tight pressure on the ball even in the case of unstable pressure, the valve can ensure the good sealing effect.
The integral welded ball valve uses two "o" rings to make the stem turn freely and seal tightly.
The integral welded ball valve is easy to install, has a long-term reliable operation, and has no need for maintenance, adjustment, and lubrication, with low operating costs.

                                                            Connection
                                                            Flange ends

                                                            Quality warranty
                                                            1 year after receiving products

                                                            Type
                                                            ball valve

                                                            Structure
                                                            ball

                                                            Media
                                                            water, oil, steam

                                                            Pressure
                                                            Low pressure

                                                            Material
                                                            WCB

                                                            Temperature of Media
                                                            Normal Temperature

                                                            Power
                                                            Manual

                                                            Port Size
                                                            DN15-300

                                                            Size
                                                            DN15-300

                                                            Temperature range
                                                            -60-200 °C.

Fully welded ball valves are widely used in long-distance pipelines such as natural gas, petroleum, heating, chemical, and thermoelectric pipe networks.
1. City gas: gas output pipeline, mainline and supply lines for each branch line.
2. Central heating: large heating equipment output pipeline, main line, and branch line.
3. Heat exchanger: the pipeline and each circuit are opened and closed.
4. Steel plants: various fluid pipelines, exhaust gas selection pipelines, gas and heat supply pipelines, and fuel supply pipelines.
5, Q61F integrated welded ball valve for a variety of industrial equipment: various heat treatment pipelines, various industrial gas, and heat pipes
