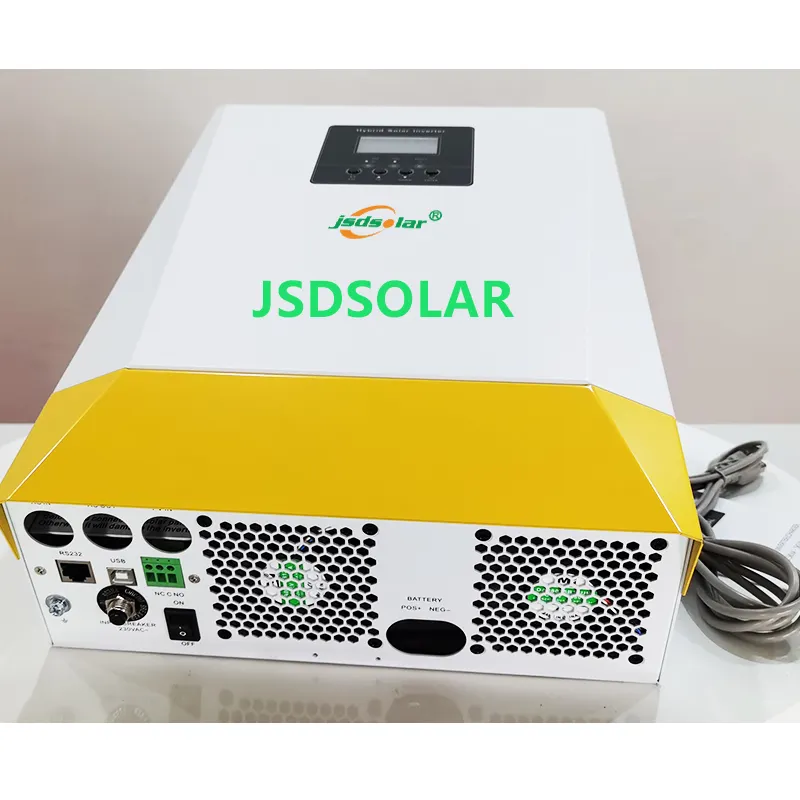

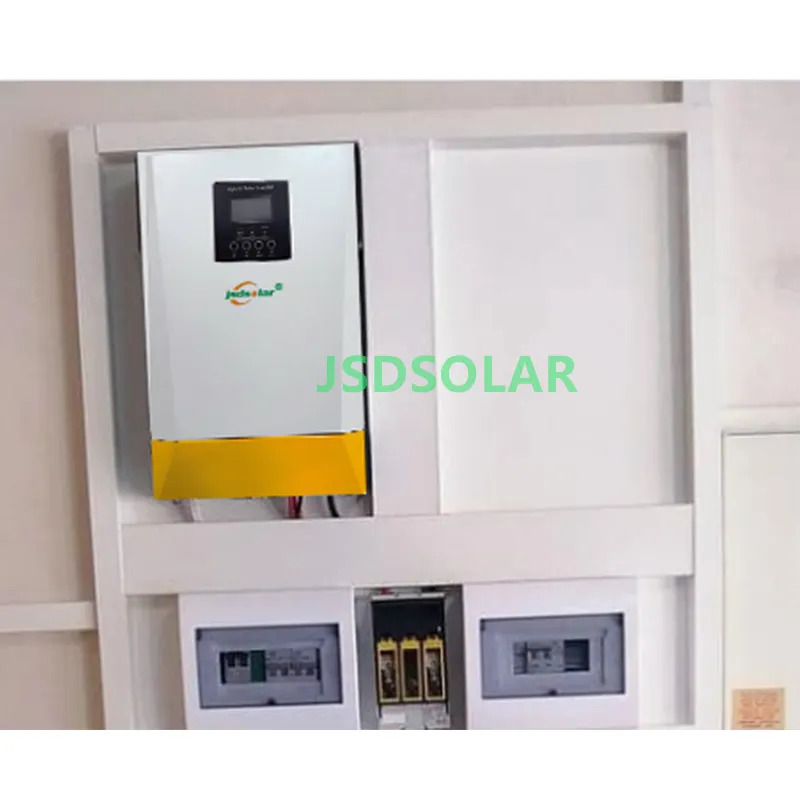

Off Grid 3KW to 30KW High Frequency Solar Inverter

(0 reviews)

(661) Views

(0) Contacts

The solar inverter is a multi-functional inverter/charger, combining functions of inverter, solar charger, and battery charger to offer uninterruptible owner support in a portable size, its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

$370.00 - $450.00/ 1 set/sets

Contact Company

Shenzhen Jinsdon Lighting Technology Co., Ltd.

messages.no address inserted..

(1890) Views

(5) Contacts

                                                            MODEL
                                                            Glory M1500 HHS-24,	Glory M3000 HHS-24,	Glory M5000 HHS-48,	Glory M5000 HHP-48

                                                            Communication Method
                                                            USB/RS232/Dry Contact

                                                            Capacity
                                                            1.5KVA/1.5KW,	3KVA/3KW,	5KVA/5KW,	5KVA/5KW

                                                            Gross Weight (kg)
                                                            8.5,	9,	10,	10

                                                            Packing Size (L*W*H)
                                                            565mm*380mm*190mm

                                                            Parallel Capability
                                                            NO,	NO,	NO,	YES, 9units

                                                            Size (L*W*H)
                                                            448mm*295mm*105mm

                                                            Nominal Voltage
                                                            230VAC

                                                            Humidity
                                                            5% to 95% Relative Humidity (Non-condensing)

                                                            Acceptable Voltage Range
                                                            170-280 VAC (For Personal Computers),90-280 VAC (For Home Appliances) Frequency	50/60HZ (Auto sensing)

                                                            Nominal Voltage
                                                            220/230VAC ± 5%

                                                            Storage Temperature
                                                            (-15℃~60℃)

                                                            Surge Power
                                                            3000VA,	6000VA,	10000VA,	10000VA

                                                            Operating Temperature
                                                            (-10℃~50℃)

                                                            Frequency
                                                            50Hz/60Hz

                                                            Waveform
                                                            Pure Sine Wave

                                                            Transfer Time
                                                            10ms (For Personal Computers) ; 20ms (For Home Appliances)

                                                            Environment
                                                            Overload/Over Temperature/Short Circuit Protection

                                                            Peak Efficiency (PV to INV)
                                                            97%

                                                            Peak Efficiency (Battery to INV)
                                                            93%

                                                            overload Protection
                                                            5s@>=150% load; 10s 110%~150% load

                                                            Crest Factor
                                                            3:01

                                                            Communication Interface
                                                            USB/RS232/Dry-contact

                                                            Admissible Power Factor
                                                            0.6~1(inductive or capacitive)

                                                            Battery Voltage
                                                            24 VDC,	48 VDC,	48 VDC

                                                            Maximum Charge Current
                                                            60A,	80A,	80A,	80A

                                                            Maximum AC Charge Current
                                                            40A,	60A,	60A,	60A

                                                            Floating Charge Voltage
                                                            27 VDC,	54 VDC,	54 VDC

                                                            Maximum Solar Charge Current
                                                            60A,	80A,  80A,	80A

                                                            Overcharge Protection
                                                            33 VDC,	63 VDC,	63 VDC

                                                            Maximum Solar Input Current
                                                            10A,	15A,	18A.	18A

                                                            Charging Method
                                                            CC/CV

                                                            PV Array MPPT Voltage Range
                                                            120VDC~450 VDC

                                                            Solar Charge Type
                                                            MPPT

                                                            Max. PV Array Power
                                                            2000W,	4000W,	5000W,	5000W

                                                            Max. PV Array Open Circuit Voltage
                                                            500 VDC

Features of Solar Inverter

Off-gird main power connected type
Communication with lithium battery via RS485/232, CAN
380V 3phase and 230V single phase option.

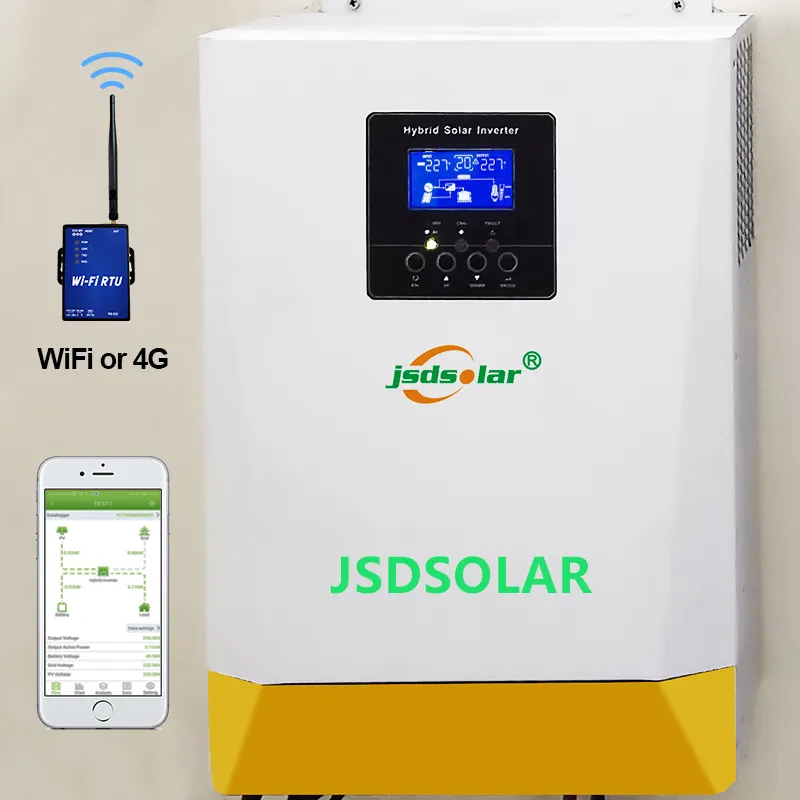

Smart WIFI remote monitoring option.
Output power factory 1
Battery equalization function to optimize battery performance and extend the lifespan
Built-in anti-dusk kit for harsh environment
Working mode priority setting
