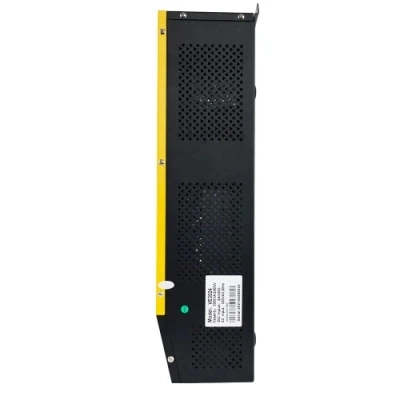

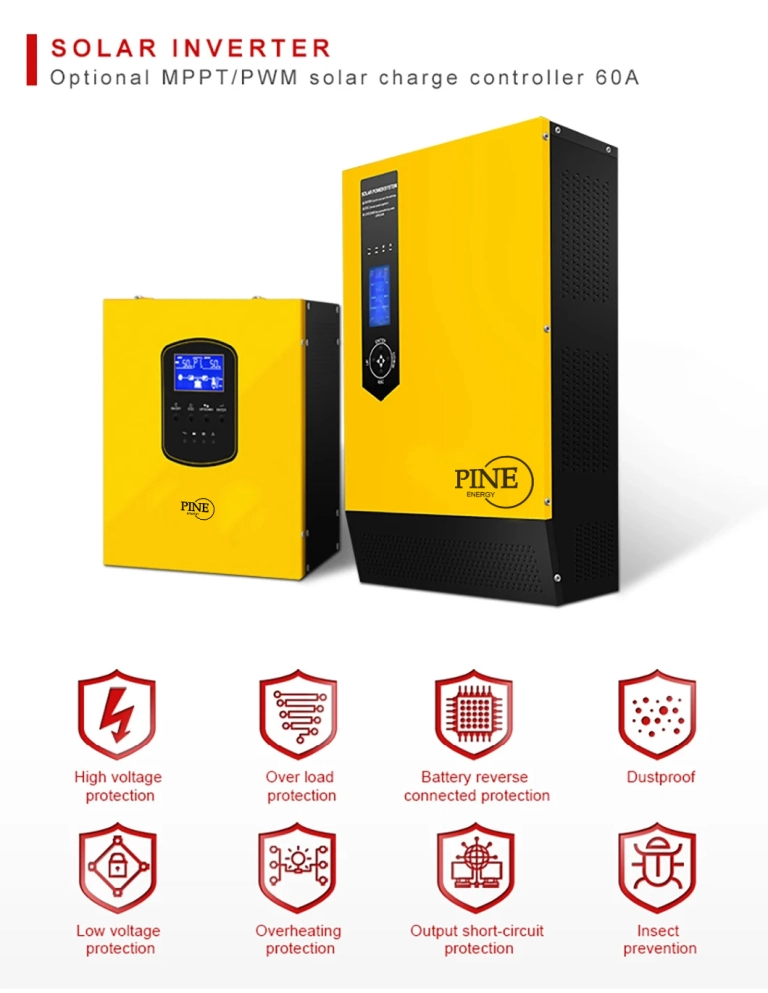

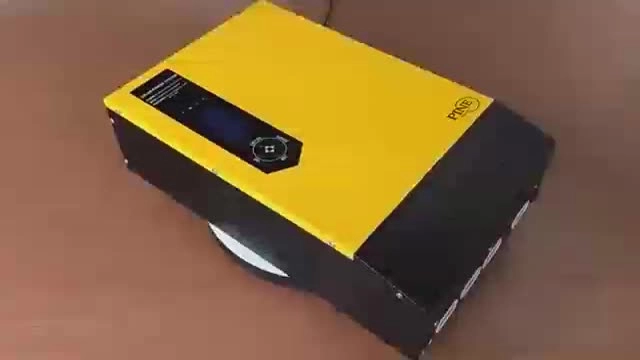

Off Grid Solar Inverter High Quality 3kw 220v 60a Mppt Built In Hybrid Inverter Solar inverter
(0 reviews)
Get Price
(601) Views
(0) Contacts


Contact Company





Pine Energy (shenzhen)Co., Ltd.
messages.no address inserted..
(1232) Views
(5) Contacts

High Quality Off Grid Solar Inverter Mppt 3kw 220v 60a High-end technology has been used to perfect the Built-In Hybrid Inverter.Its design caters to a wide range of client needs both at home and abroad.Furthermore, the product has been qualified.As a result, users can apply it to a broader range of situations.Our goods can also be tailored to meet the specific needs of our customers.

Model
PN-SI3000VA
PN-SI5000VA
Voltage Range
154-264VAC ±3(Normal Mode);185-264VAC±3V (UPS Model);175-285VAC±3V (AVR Model);
Output Voltage (AC)
The output voltage under AC is the same as the input voltage 220VAC±10% (With AVR function)
Rated Power
2400W
4000W
PV Input Voltage Range (PWM Controller)
12V: MPPT 15V-150VDC / PWM 15V-30VDC
24V: MPPT 30V-150VDC / PWM 30V-60VDC

48V: MPPT 60V-150VDC / PWM 60V-105VDC

Maximum photovoltaic display open circuit voltage
12V: MPPT 150VDC / PWM 30VDC
24V: MPPT 150VDC / PWM 60VDC

48V: MPPT 150VDC / PWM 105VDC

Maximum AC charging current
30A/15A
42A/21A
Static power(W)
15W
20W


Place of Origin Guangdong, China
Waveform Pure Sine Wave
Brand Name PINE
Model Number PN-SI5000VA
Input Voltage 220VAC 24V/48V
Output Voltage 220VAC
Output Current 60A
MPPT Efficiency 99. 9%
Output Frequency 50Hz/ 60Hz
Certification CE, ROHS, ISO9001
Output Type Single
Display LCD Display
Size 512*320*136mm
Type DC/AC Inverters
Inverter Efficiency 95%
Certificate CE/RHOS/IEC
Warranty 1 year, 1 Year
Weight 10KG
Inverter Type High Frequency Intelligent Hybrid Inverter
Protection Short Circuit Overload Overvolt Overtemp
Battery Voltage 24 VDC
Warranty 12 months
Nominal Voltage 220VAC(Standard)
Frequency 50/60Hz±5%
Power Factor 0.8
Output Frequency (AC) The output voltage frequency under AC is the same as the input frequency
Size 610x415x235mm
Output Voltage (DC) 220VAC±3%
Output Frequency (DC) 50/60Hz±1%
Net Weight/Gross weight 21.3kgs/ 22.2kgs
Waveform Pure Sine Wave
Battery Charging Voltage 27/54VDC
Battery Type External lead acid battery or water battery
Battery voltage 24/48VDC
Maximum solar charging current 60A
Load peak ratio (MAX)3:1
Battery charging voltage range 154-280VAC
Transfer Time ≤10ms (UPS mode)/≤20ms (INV mode)

Applications of Hybrid Inverter Solar inverter
  • Solar Power System Home
