Digital Conductivity Sensor/ Salinity Sensor

(0 reviews)

515 USD

(409) Views

(0) Contacts

$515.00/ unit1

Contact Company

Xi’an Desun Uniwill Electronic Technology Co., Ltd

Shaanxi, China

(2644) Views

(9) Contacts

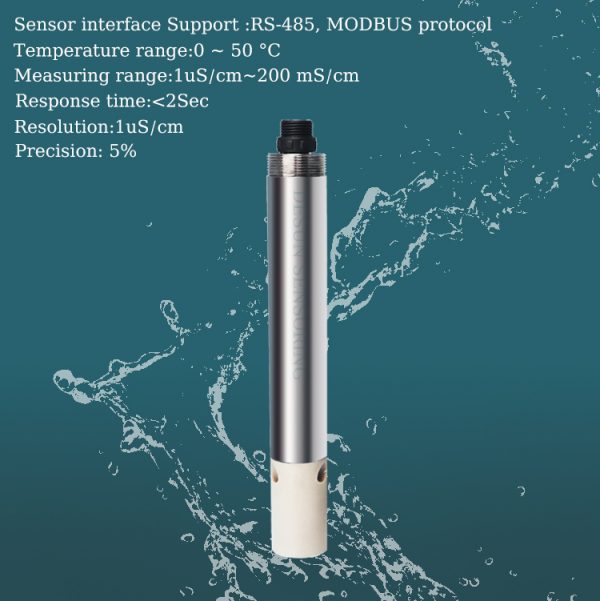

The digital conductivity sensor/ salinity sensor adopts a new generation of four-electrode technology, with a wide measurement range and automatic range switching. Automatic temperature compensation for the changing temperature of the water body. With strong anti-interference ability, the electrode can adapt to a variety of harsh water environments, and the electrode will not be polarized for a long time, reducing maintenance costs.

                                                            Product name
                                                            Digital Conductivity Sensor/ Salinity Sensor

                                                            Waterproof level
                                                            IP68

                                                            Output signal
                                                            RS-485, MODBUS protocol

                                                            Detection principle
                                                            Electrode method

                                                            Under pressure
                                                            3bar

                                                            Calibration method
                                                            1 or 2 point calibration

                                                            Response time
                                                            <2 sec

                                                            Storage temperature
                                                            -20~ 80°C

                                                            Measurement range
                                                            1uS/cm-300 mS/cm

                                                            Temperature range
                                                            0~ 50°C

                                                            Measurement accuracy
                                                            ±1%

                                                            Resolution
                                                            1uS/cm

                                                            Product material
                                                            316/POM

                                                            Product Size
                                                            Φ22 X 165mm

                                                            Power information
                                                            DC 6~12V, current <50mA

                                                            Cable length
                                                            Standard 5 meters

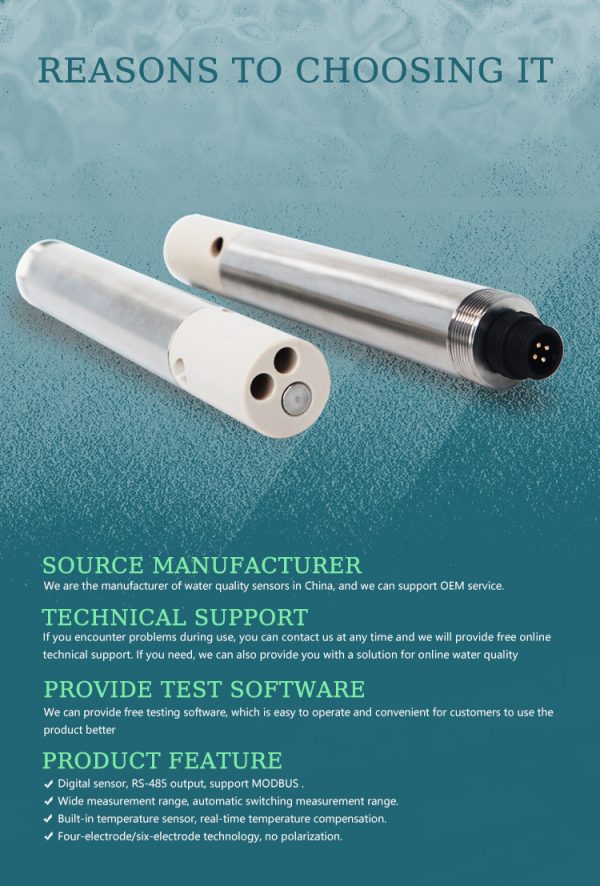

Small in size, can be assembled in many ways.
Wide measurement range, automatic switching of measurement ranges.
Built-in temperature sensor, automatic temperature compensation.
Conductivity sensor/ Salinity sensor use polarization-free, four/six electrode technology.
