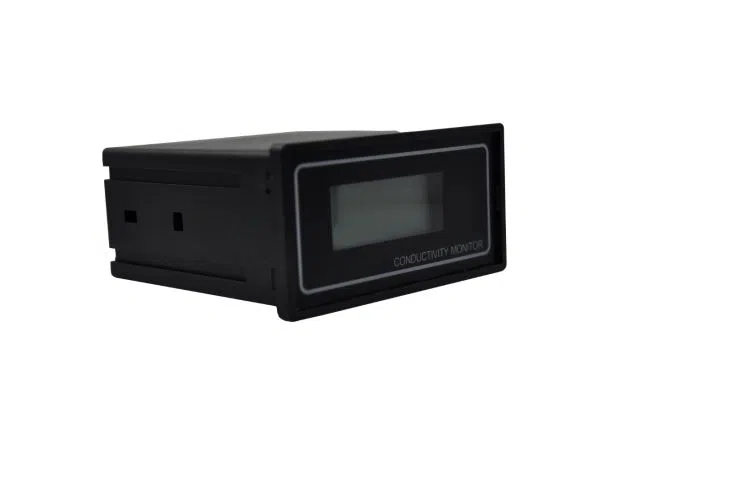

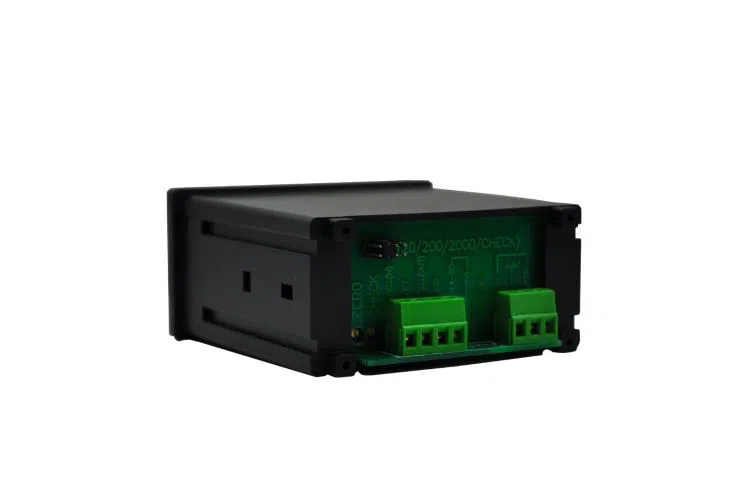

This instrument is a panel instrument for online monitoring of industrial process conductivity. Range switchover and constant check can both be freely set and adjusted through the operation component on the rear panel; unique signal collecting and processing technology and a special thick film circuit are adopted to make measurement accurate and operation stable; there are also other features such as linearized data, automatic temperature compensation, not subject to the length change of cable and maintenance-free. It's an ideal auxiliary instrument for various types of small pure water equipment.

Conductivity: The conductivity of water is usually used to indicate the purity of water. If the conductivity is high, it means that the content of conductive minerals in water is very high, and the purity of water is very low. If the conductivity is very low, it indicates the minerals that can be ionized in water. Rarely, the purity of water is relatively high. For example, the conductivity of high-purity water is EC=0.1.0us/cm; the conductivity of ordinary drinking water is 1~10 us/c.

                                                            Measurement range
                                                            0~20  0~200  0~2000μS/cm

                                                            Accuracy
                                                            1.5% (FS)

                                                            Stability
                                                            ±2 × 10-3 (FS) / 24h

                                                            Auxiliary electrode
                                                            Plastic structure;  constant: 1.0cm-1

                                                            Temperature compensation  component
                                                            NTC

                                                            Thread dimension
                                                            1/2"pipe thread

                                                            Medium temperature
                                                            5~50ºC

                                                            Medium pressure
                                                            0~0.5Mpa

                                                            Cable composition
                                                            Quad cable, copper mesh and foil shielded plastic jacket

                                                            Cable length
                                                            5m or on other agreement (5~30m)

                                                            Temperature compensation
                                                            Automatic compensation, with 25ºC as the reference temperature

                                                            Display
                                                            3.5-bit LCD

                                                            Power supply  AC
                                                            220V ±10%  50Hz

                                                            Power consumption
                                                            ≤1W

                                                            Environment conditions
                                                            (1)   Temperature: 5~50ºC  (2)   Humidity: ≤85%RH

                                                            Dimensions
                                                            48X96X100mm (heightXwidthXdepth)

                                                            Slot dimensions for installation
                                                            45X91mm (heightXwidth)
