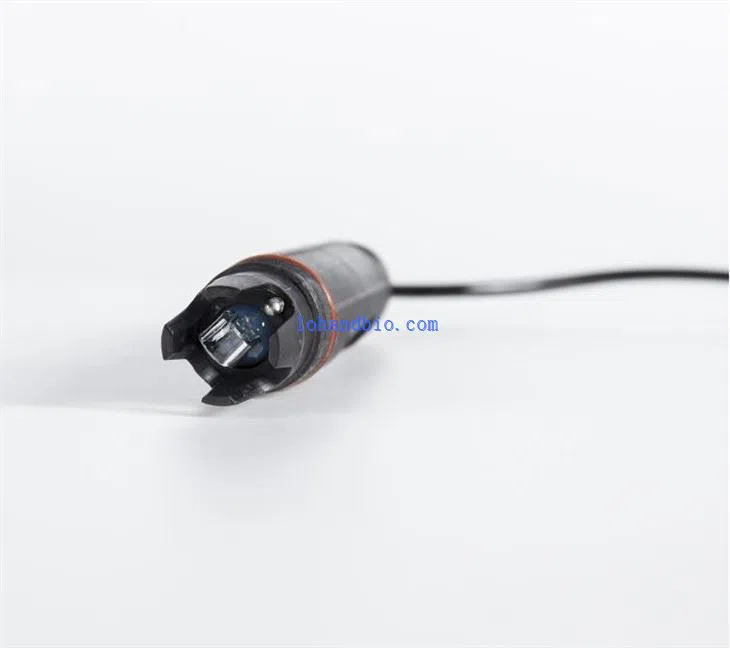

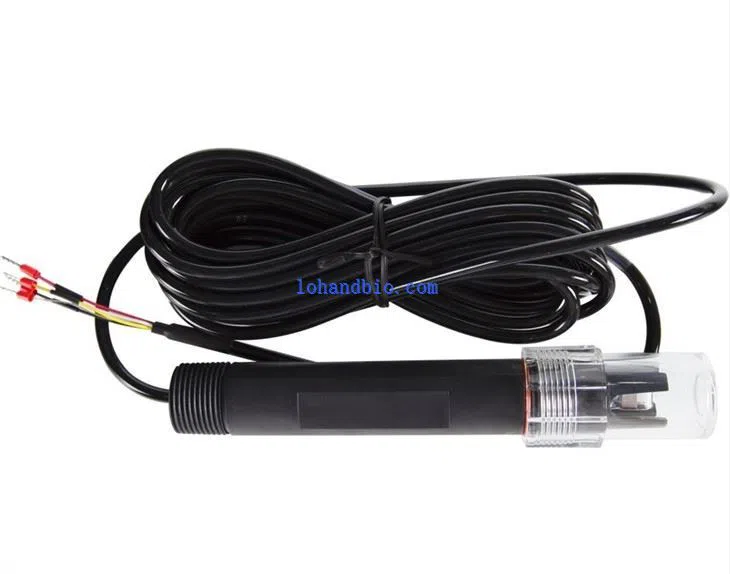

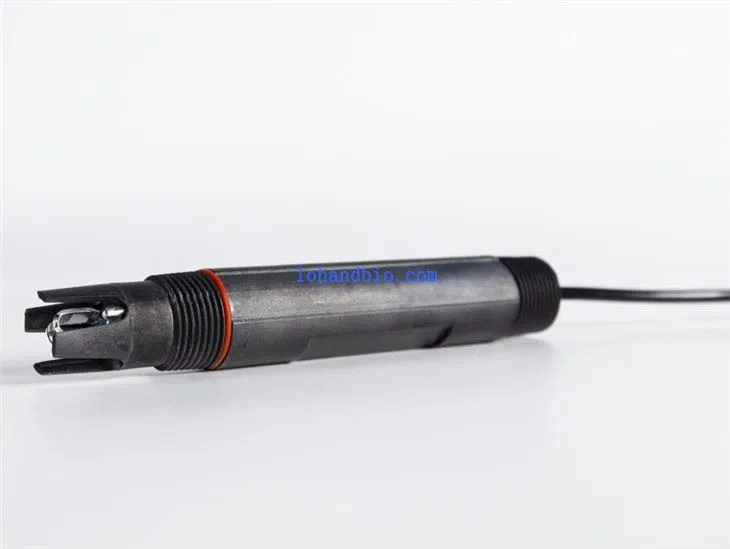

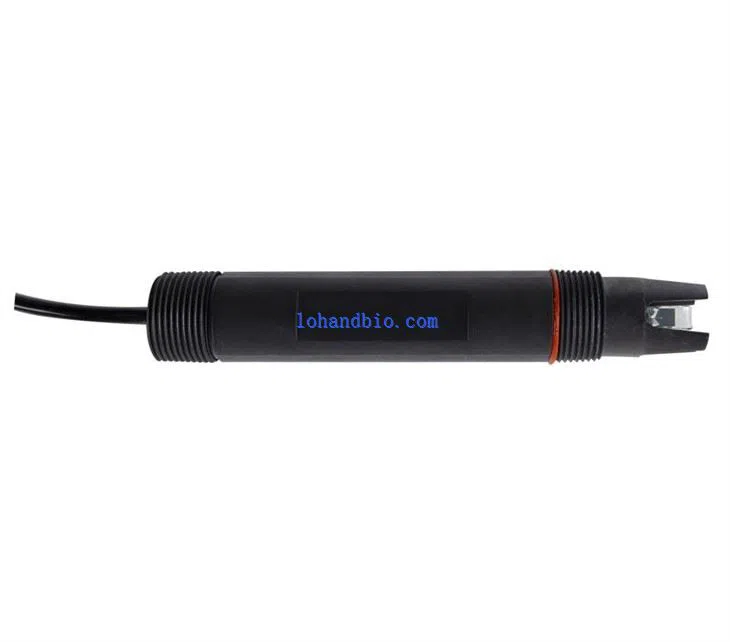

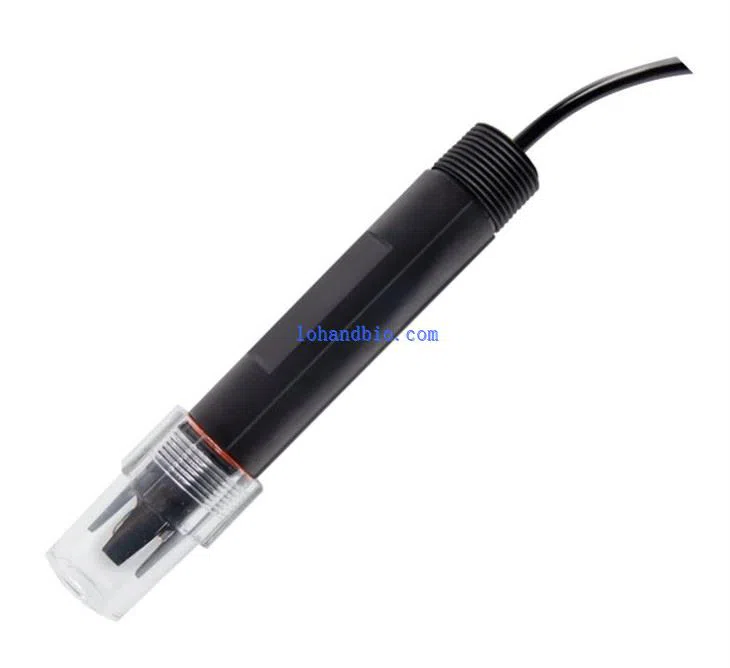

Intelligent Online Conductivity Sensor EC Electrode

(0 reviews)

Get Price

(429) Views

(0) Contacts

Contact Company

Hangzhou Lohand Biological Technology Co.,Ltd

Zhejiang, China

(2214) Views

(18) Contacts

                                                            Item
                                                            Value

                                                            Temperature resolution
                                                            0.1℃

                                                            Power supply
                                                            9~27VDC

                                                            Warranty
                                                            YEAR

                                                            Temperature accuracy
                                                            ±0.5℃

                                                            Data transmission
                                                            RS48/MODBUS-RTU

                                                            Customized support
                                                            OEM

                                                            Temperature measuring range
                                                            -10.0~110.0℃

                                                            Place of Origin
                                                            China

                                                            Cell costant
                                                            0.01/0.1/1.0/10.0 optional

                                                            Brand Name
                                                            Lohand

                                                            Accuracy
                                                            ±1.5%FS

                                                            Product name
                                                            Online Conductivity Sensor

                                                            Conductivity range
                                                            0-200.0ms

                                                            Resolution
                                                            0.001us~0.1ms

RS-485 transmission interface, MODBUS-RTU communication protocol, two-way communication
Power supply and output isolation design to ensure electrical safety
Built-in protection circuit to enhance the anti-interface ability to adapt to a complex environment
The communication protocol is simple and easy to use, can output more electrode diagnostic information, and is more intelligent
Low-power design to cope with more use cases, the internal memory can save calibration and setting information in the event of a power failure
PPS shell, strong corrosion resistance,3/4 front, and rear threads, easy to install
