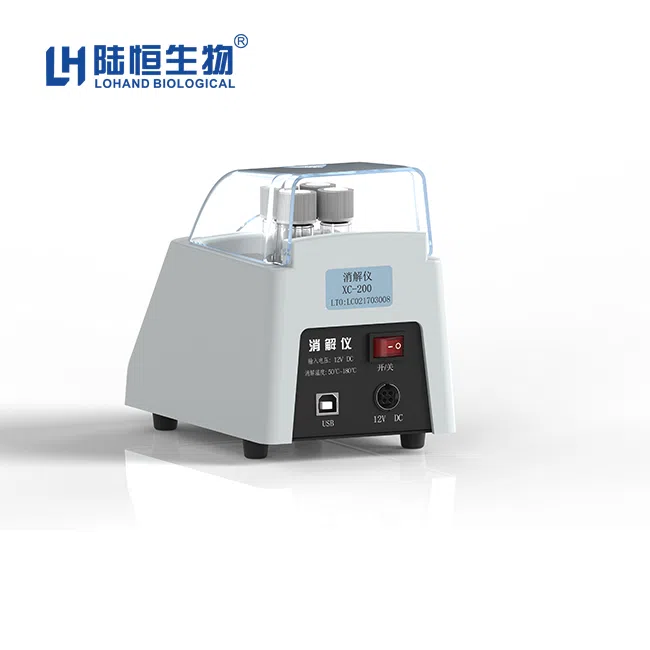

The cod digester XC-200 thermo-reactor is constructed of durable materials with a vial capacity to perform up to 4 digestions simultaneously. The cod digester reactor can set the heating temperature between 20-180℃ and the heating period between 0-120mins.

Contact Company

Hangzhou Lohand Biological Technology Co.,Ltd

Zhejiang, China

(964) Views

(16) Contacts

This cod digester china test tube heater manual will provide you with the necessary information for the correct use of the instrument. Please read it carefully before using the meter.
-The cod digester XC-200 thermo-reactor is constructed of durable materials with a vial capacity to perform up to 4 digestions simultaneously.
-The cod digester reactor can set the heating temperature between 20-180℃ and heating period between 0-120mins.
-The cod digester reactor contains a thermal fuse that prevents overheating, by turning off the heating element automatically with warning beep.
-A beep will be heard and the heating element will turn off at the end of the selected time period.

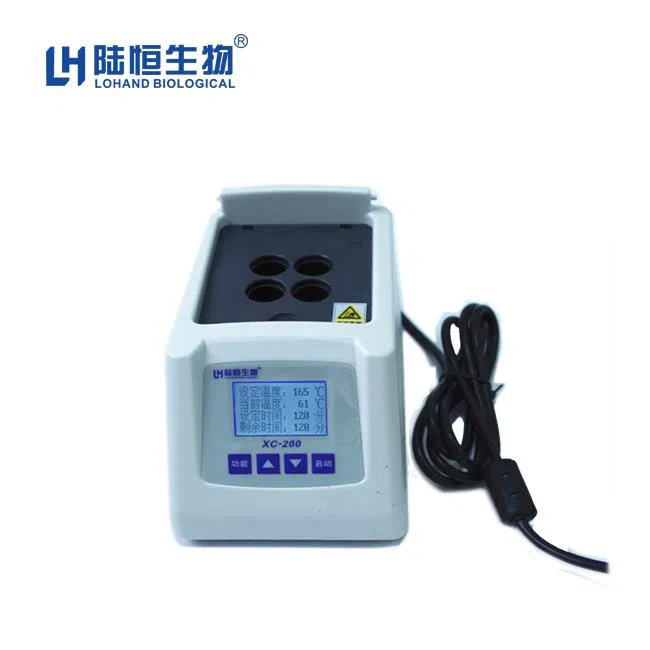

-The temperature is continuously displayed on the LCD even when there is no active temperature program running.
-The reactor equips a transparent plastic protection shield to protect the operator.
-The reactor has USB connector which can connect with 12V Vehicle Power Adaptors for outside using.
-Please examine this product carefully. Make sure that the instrument is not damaged. If any damage occurred during shipment, please notify your Dealer.

Operation processes:
1. Startup
Prepare the reactor as follows:
•Place the reactor on a flat table. Do not place the instrument under direct sunlight.
•Connect the reactor to a power outlet with the ground. Verify the correct voltage and frequency are used.
•” USB” connector is for 12V Vehicle Power Adaptors.
See the label on the instrument.
•Turn the reactor ON using the power switch located on the rear panel. Wait until the unit displays the heater block temperature.
2. Heating temperature setting
Press “Mode” to choose “Temp setting”, then press the UP or DOWN arrow to choose the temperature you need.
3. Heating period setting
Press “Mode” to choose “Time setting”, then press the UP or DOWN arrow to choose the heating period you need.
4. Start heating
Press the "Start" button to trigger the heating process. The reactor will beep once the set temperature is reached. Then, put the test tube into the heater block hole, and the timer will start to count down the setting period. The"balance time" shows on the screen. After the "Balance time" become "0".A beep will be heard and the heating element will turn off. It means the heating process is finished.

                                                            Product name
                                                            cod digester

                                                            Dimensions
                                                            110*170*135 mm

                                                            Temperature Range
                                                            20-180℃

                                                            Power Supply
                                                            DC 12V/10A

                                                            Accuracy
                                                            ±3 ℃(@ 25℃)

                                                            Capacity
                                                            4 vials (the diameter of vial should be not more than 16mm.)

                                                            Environment relative humidity
                                                            <=85%

                                                            Warm-up Time
                                                            10-15 minutes, depending on selected temperature

                                                            Environment temperature
                                                            (0-40)℃

                                                            Heating period
                                                            0-120mins
