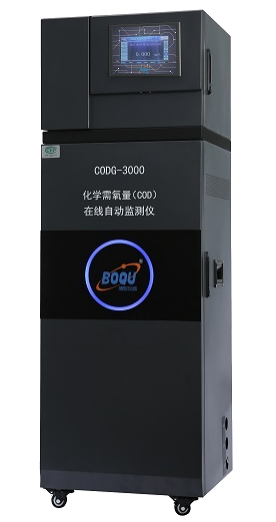

CODG-3000(2.0 Version) Industrial COD Analyzer

(0 reviews)

Get Price

(509) Views

(0) Contacts

Contact Company

Shanghai BOQU Instrument Co., Ltd

Shanghai, China

(2270) Views

(11) Contacts

CODE-3000 type COD automatic industrial online analyzer is developed with completely independent intellectual property rights of COD automatic testing instrument, be able to automatically detect COD of any water for a long time that in unattended condition.
Injection components: vacuum suction peristaltic pump, and the pump tube between the reagent there is always an air buffer, to avoid corrosion of the tubing while making reagent mixing more concise and flexible.
Sealed Digestion components: high–temperature high-pressure digestion system, accelerating the reaction process, to overcome the volatile corrosive gas exposure system equipment corrosion.
Reagent tube: imported transparent modified PTFE hose, diameter greater than 1.5mm, reducing the chance of water-like particles clogging.

                                                            A method based on
                                                            the national standard GB11914-89 << Water Quality – Determination of the chemical oxygen demand – dichromate potassium >>

                                                            Measuring range
                                                            0-1000mg/L, 0-10000mg/L

                                                            Accuracy
                                                            ≥ 100mg / L, no more than ± 10%;   <100mg / L, no more than ± 8mg / L

                                                            Repeatability
                                                            ≥ 100mg / L, no more than ± 10%;  <100mg / L, does not exceed ± 6mg / L

                                                            Measurement period
                                                            The minimum measurement period of 20 minutes, according to the actual water samples, digestion can be modified at any time in the 5 ~ 120min

                                                            Sampling period
                                                            time interval (20 ~ 9999min adjustable), and the whole point of measurement mode;

                                                            Calibration cycle
                                                            1 to 99 days at any arbitrary time interval adjustable

                                                            Maintenance cycle
                                                            general once a month, each about 30 min;

                                                            Reagent consumption
                                                            less than 0.35 RMB / sample

                                                            Output
                                                            RS-232 ,4-20mA ( optional )

                                                            Environmental requirements
                                                            Temperature adjustable interior, recommended temperature +5 ~ 28 ℃; humidity ≤ 90% ( non-condensing );

                                                            Power supply
                                                            AC230 ± 10% V, 50 ± 10% Hz, 5A;

                                                            Size
                                                            1500 × width 550 × height depth 450 (mm);

                                                            Other
                                                            Abnormal alarm and power without losing data；

1. Separation of water and electricity, analyzer combined with a filtering function.
2. Panasonic PLC, faster data processing, long-term stable operation
3. High-temperature and high-pressure resistant valves imported from Japan, operating normally in harsh environments.
4. Digestion tube and measuring tube made of Quartz material to ensure high accuracy of water samples.
5. Set the digestion time freely to meet the customer’s special demands.

Features
The unique design makes this product compared to similar products with a lower failure rate, lower maintenance, lower reagent consumption, and higher cost.
