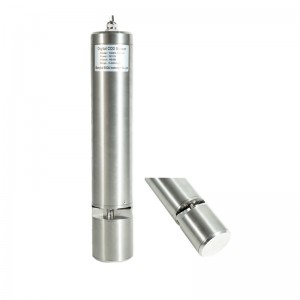

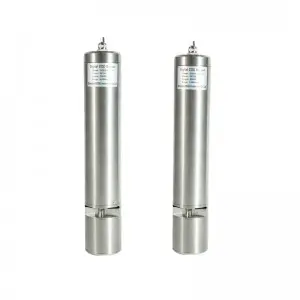

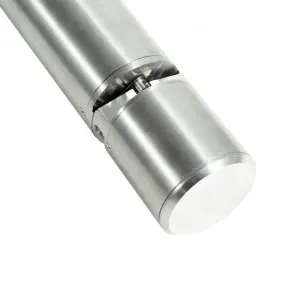

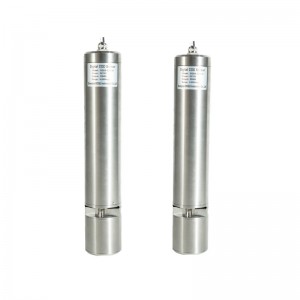

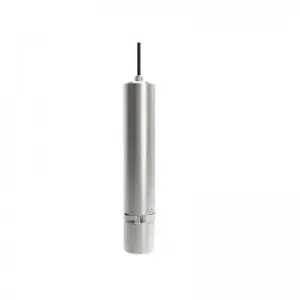

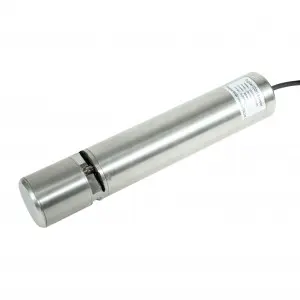

IoT Digital UV COD BOD TOC Sensor

(0 reviews)

Get Price

(127) Views

(0) Contacts

Contact Company

Shanghai BOQU Instrument Co., Ltd

Shanghai, China

(1086) Views

(11) Contacts

Measuring Principle
Online COD sensor is based on the absorption of ultraviolet light by organic matter, and uses the 254 nm spectral absorption coefficient SAC254 to reflect the important measurement parameters of soluble organic matter content in water, and can be converted into COD value under certain conditions. This method allows for continuous monitoring without the need for any reagents.

                                                            Model No
                                                            BH-485-COD

                                                            Protocol
                                                            Modbus RTU RS485

                                                            Power Supply
                                                            DC12V

                                                            Features
                                                            UV light principle, 2-3 years life time

                                                            Measuring range
                                                            0-200mg, 0~1000mg/l COD (2mm optical path)

                                                            Accuracy
                                                            ±5%

                                                            Measurement interval
                                                            minimum 1 minute

                                                            Cable length
                                                            Standard 10m cable, can be extended to 100 meters

                                                            Pressure range
                                                            ≤0.4Mpa

                                                            Sensor material
                                                            SUS316L

                                                            Storage temp
                                                            -15℃ ~ 65℃

                                                            Protection
                                                            IP68/NEMA6P

                                                            Dimension
                                                            70mm*395mm(Diameter*length)

                                                            Operating temperature
                                                            0℃~45℃

1) Continuous monitoring of organic matter load in the sewage treatment process
2) On-line real-time monitoring of influent and outflow water of the wastewater treatment
3) Application: surface water, industrial discharge water, fishery discharge water, etc

Main Features
1) Directly immersion measurement without sampling and pre-processing
2) No chemical reagents, no secondary pollution
3) Quickly response time and continuous measurement
4) With automatic cleaning function and few-maintenance
