Automatic Mineral Pure Water Bottling Plant Price
Water is a multifaceted product: natural spring water, purified water, carbonated water, and flavored water... What process can be used to prevent bromate formation? How do deploy mechanical filling valves to keep the water crystal clear and contaminant free? How to achieve the maximum benefit with speed, accuracy, and lightweight bottles? King Machine, the expert in liquid product filling, will always provide you with the best solution for your products

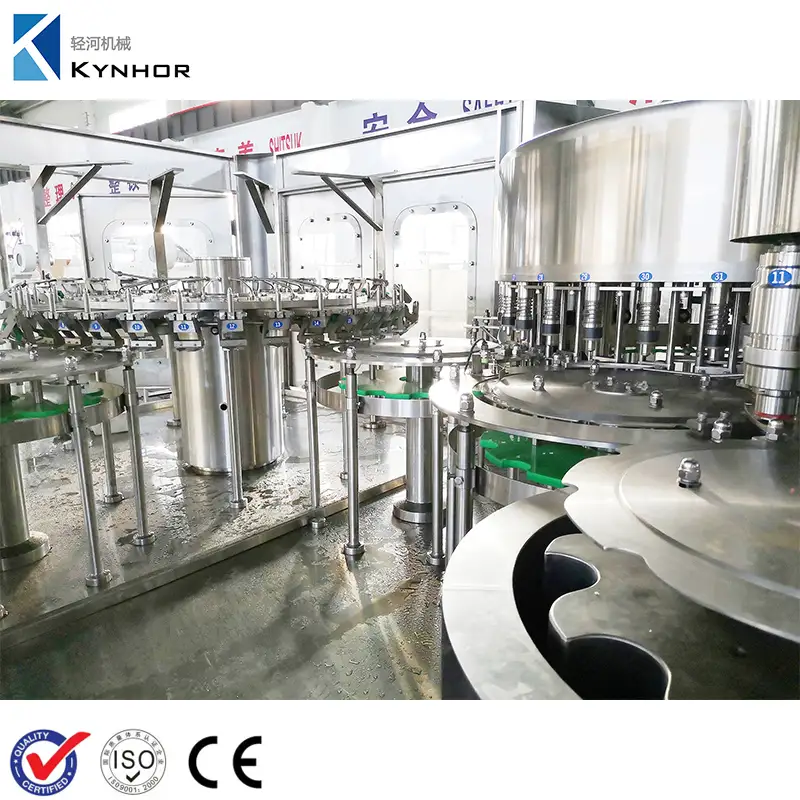

Project name: Drinking water bottling machine
Model	CG8-8-3	CGF14-12-4	CGF18-18-6	CGF24-24-8	CGF32-32-10	CGF40-40-12
Capacity(500ml bottles)	2000	3000-4000	6000-8000	8000-12000	13000-15000	16000-18000
Suitable bottle shapes	PET circular or square
Bottle diameter(mm)	Dia50-Dia115mm
Bottle height (mm)	160-320mm
Compressor air pressure(Mpa)	0.3-0.7Mpa
Washing medium	Aseptic water
Rinsing pressure(Mpa)	>0.06Mpa<0.2Mpa
Application	Bottle water filling machine
Total power (KW)	4.4	4.4	4.4	5.2	6.2	7.8
Overall dimensions(L*W)	2.3*1.9	2.5*1.9	2.8*2.15	3.1*2.5	3.8*2.8	4.5*3.3
Height	2.3m	2.5m	2.5m	2.5m	2.5m	2.6m
Weight(kg)	2500kg	3200kg	4000kg	4500kg	6500kg	8000kg

                                                            Brand Name
                                                            KYNHOR

                                                            Model Number
                                                            CGF

                                                            Place of Origin
                                                            Jiangsu China

                                                            Min.Order Quantity
                                                            1 SET

                                                            Packaging Details
                                                            Wooden case or wooden pellets depended on clients' require

1. Water bottling line is 2,000-2,4000BPH

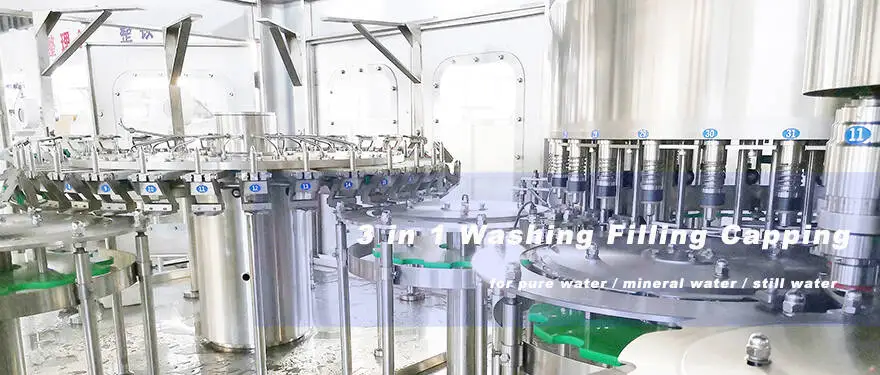

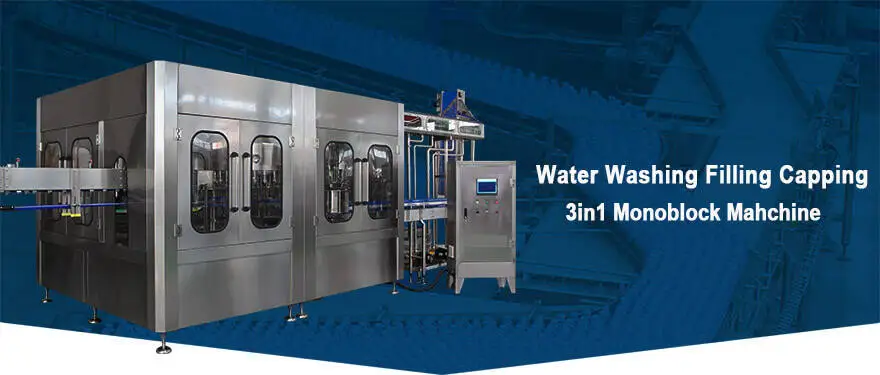

2. Automatic Washing Filling Capping Machine (3-in-1)
3. SS304 stainless steel
4. SIEMENS programmed controller (PLC)
5. ISO9001, CE, SGS

Main Features.
1. Using the wind-sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, enable the change the bottle-shaped become easier.
2. Bottles transmission adopts clip bottleneck technology, bottle-shaped transform does not need to adjust the equipment level, only changes related to the curved plate, wheel, and nylon parts are enough.

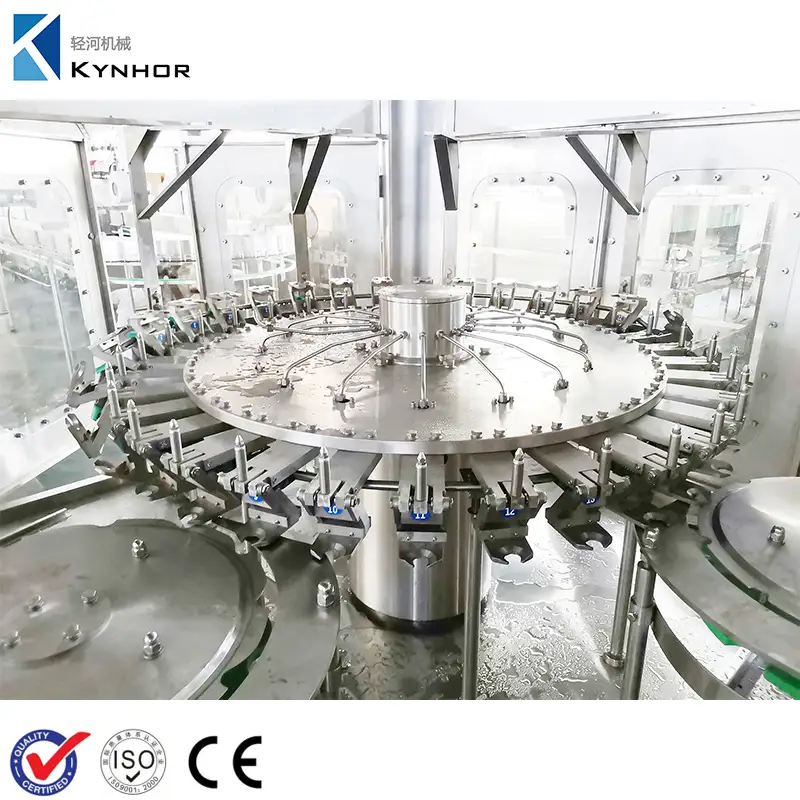

3. The specially designed stainless steel bottle washing machine clip is solid and durable, with no touch with the screw location of the bottle mouth to avoid secondary pollution.
4. High-speed large gravity flow valve filling valve, filling fast, filling accurately, and no liquid loss.
5. Spiraling declines when output bottle, transform bottle shape no need to adjust the height of conveyor chains.

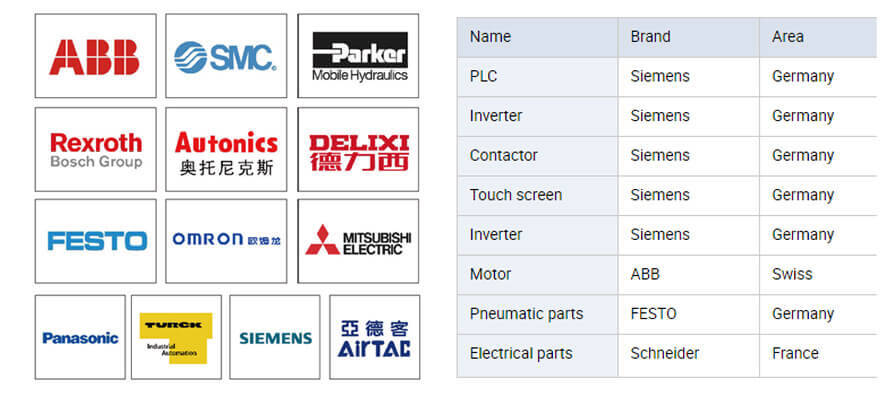

6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.
