This is our linear type small water bottle filling machine price, it is our smallest type filling line
For 500ml, the maximum filling speed can be 1500 bottles per hour
Suitable bottle sizes can be from 250ml to 2000ml.
12 heads rinsing machine working power: 1.5kw.
12 heads filling machine working power: 1.5kw
1 head capping machine working power: 1.5kw
The motor on the conveyor belt working power:0.75kw.
Usually, the length is 7 meters.
12 / 12 / 1 pet pet bottle, bottle washing / filling / sealing. It can be applied to a variety of bottle types by changing the parts, reducing the wear of the bottle body, and ensuring stable transportation. The filling method is micro negative pressure gravity filling, which can accurately control the filling liquid level. The sanitary level circulation management provides a reliable guarantee for product quality. The technology of grasping and pulling the cap introduced in France is at the domestic level. The screw cap and twist cap can be adjusted according to the process requirements of the product.
1. Frame
Structural steel body: the shell is 304 stainless steel layer and 304 stainless steel frame.

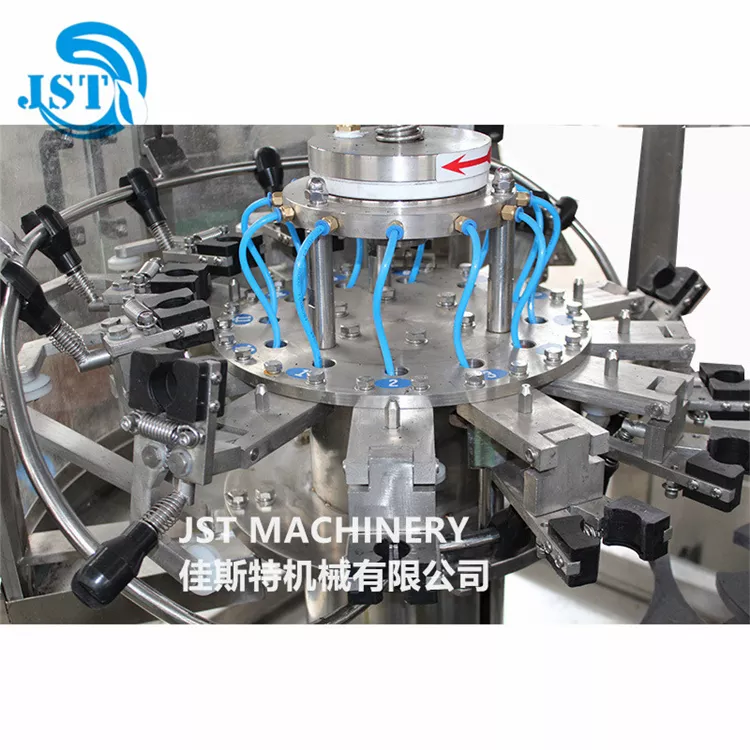

2. Rotary bottle washing part
The number of bottle washing chucks is 12, the bottle washing pliers are stable and reliable, and the bottle washing efficiency is high.
3. Rotary filling part
The number of filling valves is 12, and the parts in contact with the products are 304 stainless steel. The inner and outer surfaces of the filling cylinder are polished.
4. Rotary cover part
The number of capping heads is 1, and the horizontal rotary capping machine has the function of not damaging the surface of the bottle cap.
5. Cover part
Imported motor reducer, 304 stainless steel cover bin, reducing secondary pollution to the bottle cap, 304 stainless steel lower cover groove.
6. Power system
Imported main motor and reducer, with frequency converter, all moving mechanism parts are gear operated. The operation is stable. Each bottle conveying a star wheel is an engineering plastic part with a protective mechanism.
7. Control system and operation panel
Sealed electric control box, 304 stainless steel material, imported PLC, frequency converter (Mitsubishi, Japan), relay, photoelectric switch, induction switch, and relay element.

Main technical parameters:

Production capacity 1500 bottles / hour (500ml)
Filling structure: ± 5mm liquid level positioning gravity self-pressure type
Applicable bottle diameter Φ 50-90 bottle height 150-90
Flushing water pressure: 0.18-0.25mpa
Water consumption for bottle flushing: 200 / h
Overall dimension: 7000x1000x2100

                                                            Type
                                                            Filling Machine

                                                            Warranty
                                                            2 years

                                                            Warranty of core components
                                                            2 years

                                                            Packaging Type
                                                            Barrel, Bottles

                                                            Weight
                                                            3000 KG

                                                            Packaging Material
                                                            Plastic

                                                            Dimension(L*W*H)
                                                            1100*900*1850mm

                                                            Automatic Grade
                                                            Automatic

                                                            Brand Name
                                                            JST

                                                            Driven Type
                                                            Hydraulic

                                                            Voltage
                                                            customized

                                                            Place of Origin
                                                            Jiangsu, China

                                                            Machinery Capacity
                                                            2000BPH, 1000BPH

                                                            Filling Material
                                                            Beer, Milk, Water, Oil, Juice

                                                            Core Components
                                                            Motor, Engine

                                                            Suitable bottle size
                                                            250ml-2000ml

                                                            Filling speed
                                                            0-1500 bottles per hour .

                                                            Material
                                                            SUS304/316

                                                            Cap type
                                                            Screw or snap
