Automatic Spring Water 5 Gallan Filling Line Price

(0 reviews)

Get Price

(577) Views

(0) Contacts

>= 1 sets
$20,000.00

Contact Company

Zhangjiagang JST Machinery Co., Ltd.

Jiangsu, China

(1848) Views

(4) Contacts

This filling line from Zhangjiagang JST Machinery Co., Ltd, can be used to fill 3 gallons or 5 gallons. We have different filling
speeds, such as small ones: 60BPH, 120BPH, and 150BPH.
The middle filling speed:300 BPH,450 BPH, and 600bph.
We also have bigger filling speeds: 800bph,1200bph,1500bph, and so on.
Different types, machine prices, and structures are also different.

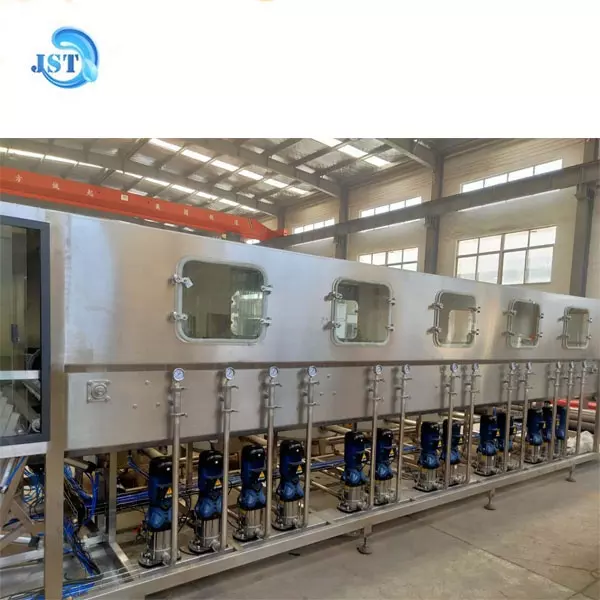

The model in the photo is the QGF-600 type.
It means for one hour, the filling speed can be 600 bottles per hour.
For QGF- 450, it means that for one hour, the filling speed can be 450 bottles per hour.
The capping machine used cylinder-type snapping for the 5-gallon cap.
The 5-gallon complete filling line flow process :
Water treatment system
5-gallon cap removing machine
Bottle leakage checking machine
Outside and inside brushing machine
5 gallon bottle rinsing filling capping 3 in 1 machine (If your filling speed is bigger, the rinsing machine, and filling machine will be separated one )
Light checker
Bottleneck PVC sleeve labeling machine.

                                                            Certification
                                                            CE,ISO

                                                            Packaging Type
                                                            CANS, Bottles, Barrel

                                                            Type
                                                            Filling Machine

                                                            Packaging Material
                                                            Plastic, Glass

                                                            Filling heads
                                                            4

                                                            Automatic Grade
                                                            Automatic

                                                            Driven Type
                                                            Pneumatic, Pneumatic

                                                            Voltage
                                                            Customized

                                                            Place of Origin
                                                            Jiangsu, China

                                                            Size of barrel
                                                            D276 , H490mm

                                                            Filling Material
                                                            Beer, Milk, Water, Oil, Juice

                                                            Brand Name
                                                            JST

                                                            Dimension(L*W*H)
                                                            8000*2300*2000mm

                                                            Warranty
                                                            2 years

                                                            Weight
                                                            3000KGS

                                                            Machinery Capacity
                                                            600BPH

                                                            Filling Accuracy
                                                            +/- 5mm

                                                            Warranty of core components
                                                            2 years

                                                            Core Components
                                                            Motor, Pump, PLC

                                                            Label
                                                            Self-adhesive label
