Water Filling Machine

(0 reviews)

Get Price

(222) Views

(0) Contacts

Glass Bottles / Hour Water Filling Machine

1 set/sets
$9,800.00 - $22,000.00

Contact Company

Zhangjiagang Proman Machine Co.,ltd

Zhejiang, China

(1968) Views

(1) Contacts

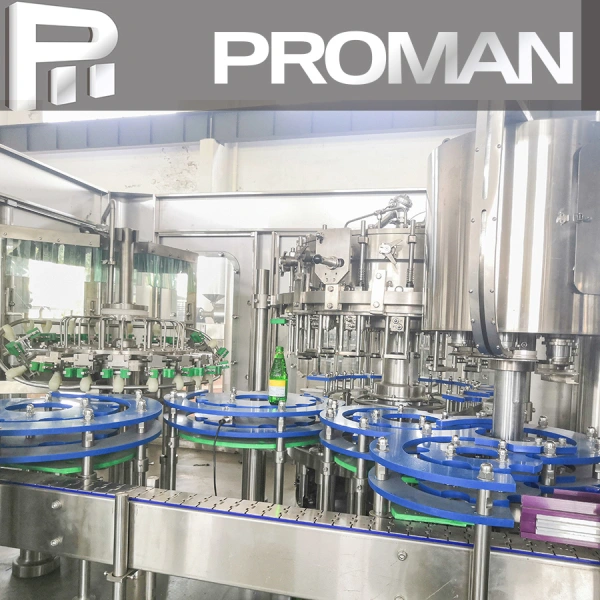

The GCF series bottle water filling machine line is used to fill 200–2000 ml PET bottles with mineral or purified water. Glass bottles can also be used. It just needs to change the conveyor parts. Different models can satisfy various requirements of output from 2000B/H to 24000B/H. The whole process is automatic and suitable for PET bottles, plastic bottle-filling mineral water, and pure water. In comparison to the same model, our machine's output is higher and more efficient because filling methods that use gravity or micro pressure filling make the speed faster and more stable. The machine is controlled by a sophisticated Siemens programmable controller (PLC), which interacts with the inverter to run more steadily and dependably. The photoelectric sensor detects all parts operating in a highly automated and user-friendly manner.

                                                            Model
                                                            CGF16-16-5

                                                            Capacity(500ML)
                                                            6000BPH

                                                            Weight
                                                            5500kg

                                                            Main Motor Power
                                                            6.8kw

                                                            Washing Heads
                                                            16

                                                            Suitable Cap
                                                            Plastic Screw Cap

                                                            Filling Heads
                                                            16

                                                            Height Of Bottle
                                                            150-310MM

                                                            Capping Heads
                                                            5

                                                            Diameter of bottle
                                                            Diameter: 55-110 MM

                                                            Suitable Bottle
                                                            PET Bottle ,Plastic Bottle
