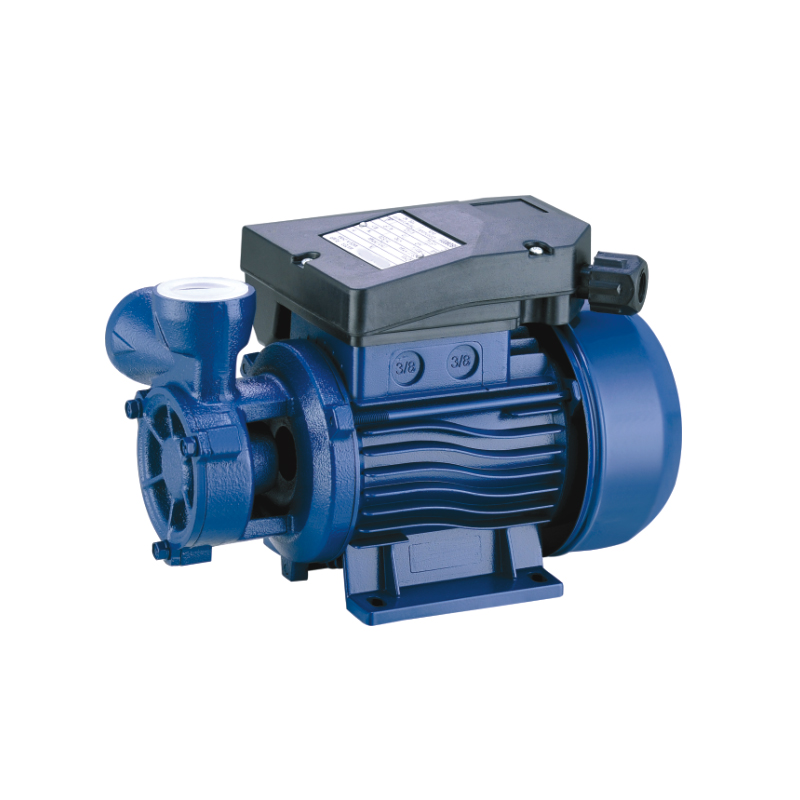

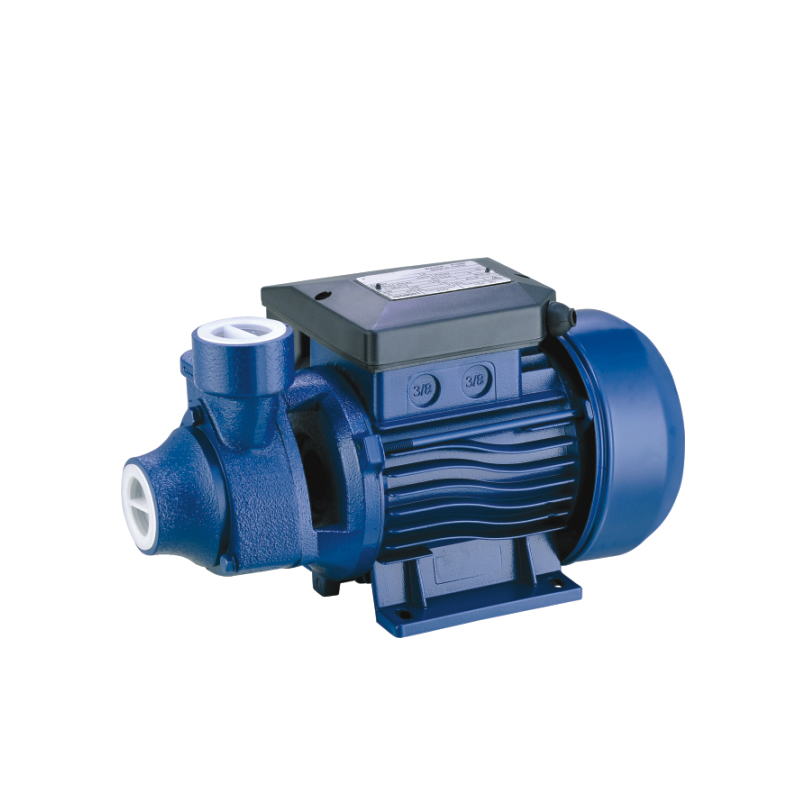

IDB Vortex pump

(0 reviews)

Get Price

(158) Views

(0) Contacts

50 - 499 pieces >= 500 pieces
$25.00 $10.00

Contact Company

Taizhou Qianniu Mechanical And Electrical Co., Ltd.

Zhejiang, China

(532) Views

(8) Contacts

PUMP

Rust-free copper inserts prevent the impeller's block when starting after the pump is unused for a long time.
Brass impeller with evenly arranged radial vanes
Max. liquid temperature: 35°C
Max. Suction:+8m
Cast iron pump body and support
PERFORMANCE CHART AT N=2850rpm.

MOTOR

Motor with copper winding
Shaft: Stainless steel welded shaft/45# steal be electroplated
Insulation class: B or F
Protection class: IPX4
Max. Ambient temperature: +40℃
Cooling: External ventilation

                                                            Warranty
                                                            1 year

                                                            Certification
                                                            ce, IECEE, Coc, SONCAP

                                                            Customized support
                                                            OEM

                                                            Brand Name
                                                            Kingnew

                                                            Model Number
                                                            IDB-35

                                                            Place of Origin
                                                            Zhejiang, China

                                                            Horsepower
                                                            0.5 Hp

                                                            Power Source
                                                            Electric

                                                            Pressure
                                                            3.5 bar

                                                            Structure
                                                            Single-stage Pump

                                                            Cable Length: : : ::
                                                            1 m

                                                            Outlet Size
                                                            1"

                                                            Voltage
                                                            110V/ 220V/230V/380V

                                                            Power
                                                            0.37 kw

                                                            Theory
                                                            Centrifugal Pump

                                                            Pump body
                                                            Cast Iron

                                                            Wire
                                                            100% Copper

                                                            Impeller
                                                            Brass/PPO/Aluminum/plastic

                                                            Frequency
                                                            50 /60 Hz

                                                            Standard or Nonstandard
                                                            Standard

                                                            Gross Weight
                                                            5.3 kg

It can be used to transfer clean water or other quids similar to water in physical and chemical properties.
It is suitable for small living water supply automatic water sprinkler systems, small air conditioner systems or supporting equipment, etc.
Irrigation
Agriculture
Cleaning
Water
Washing
