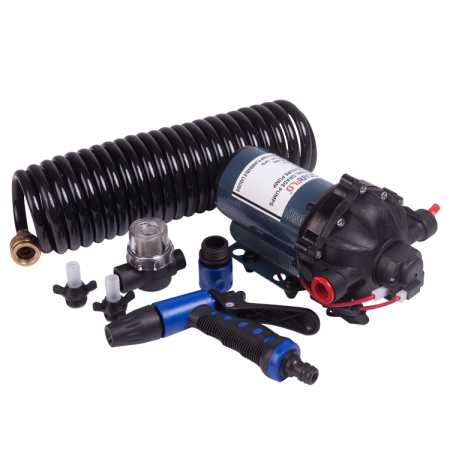

FL-35S 12v Dc 70psi Boat Deck Marine Washdown Pumps

(0 reviews)

Get Price

(186) Views

(0) Contacts

Contact Company

Xiamen Starflo Industry And Trade Co., Ltd.

Fujian, China

(978) Views

(5) Contacts

How a Diaphragm Pump Works
The pump is driven by an AC or DC motor. In front of the motor is a valve assembly containing two to five valve pump chambers. Each valve chamber has a diaphragm behind it in the lower pump housing. As the motor shaft turns, an internal cam positioned behind the diaphragms causes the diaphragms to be pushed forward, then back in a continuous sequence creating a suction. As this suction builds, fluid is pulled through the inlet, through the various valve chamber check valves to the outlet The volume of flow is determined by several factors including the number and size of the pump chambers, cam offset, operating pressure, fluid viscosity

                                                            Housings
                                                            Polypropylene

                                                            Valves
                                                            Viton

                                                            Diaphragm
                                                            Santoprene

                                                            Fasteners
                                                            Stainless Steel

                                                            Motor Shell
                                                            Coated Steel

                                                            Mode
                                                            Demand

                                                            Certifications Option
                                                            CE Approval

                                                            Temperature Limits
                                                            Motor is not equipped with thermal protection. For user safety, optimal performance, and maximum motor life, the motor surface temperature should not exceed 180°F (82°C).

                                                            Duty Cycle
                                                            Continous(under different pressure the continuous working time will also be different)

                                                            Liquid Temperature
                                                            140°F (60°C)

                                                            Max Flow rate
                                                            18.9lpm (5.0gpm)

                                                            Max. Priming Capabilities
                                                            6feet (1.8m)

                                                            Max Pressure
                                                            70psi (4.8bar)

                                                            Inlet/Outlet Ports
                                                            10/13mm pyramid hose barb, 13mm angle hose barb, 1/2 NPT thread filter for your choice.

Agriculture/Yacht / RV/Caravan pressurized water system
Sprayer fixture (Vehicle-mounted sprayer, electric sprayer)
Cleaning machine, Humidifier, Water purification, Medical apparatus
Any other pressurization system
