12 VOLT DC RELAY SWITCH MPQ1-S-112D-C

(0 reviews)

Get Price

(128) Views

(0) Contacts

20 - 2999 pieces 3000 - 5999 pieces >= 6000 pieces
$0.55 $0.53 $0.51

Contact Company

Yueqing Meishuo Import And Export Co., Ltd.

Zhejiang, China

(733) Views

(0) Contacts

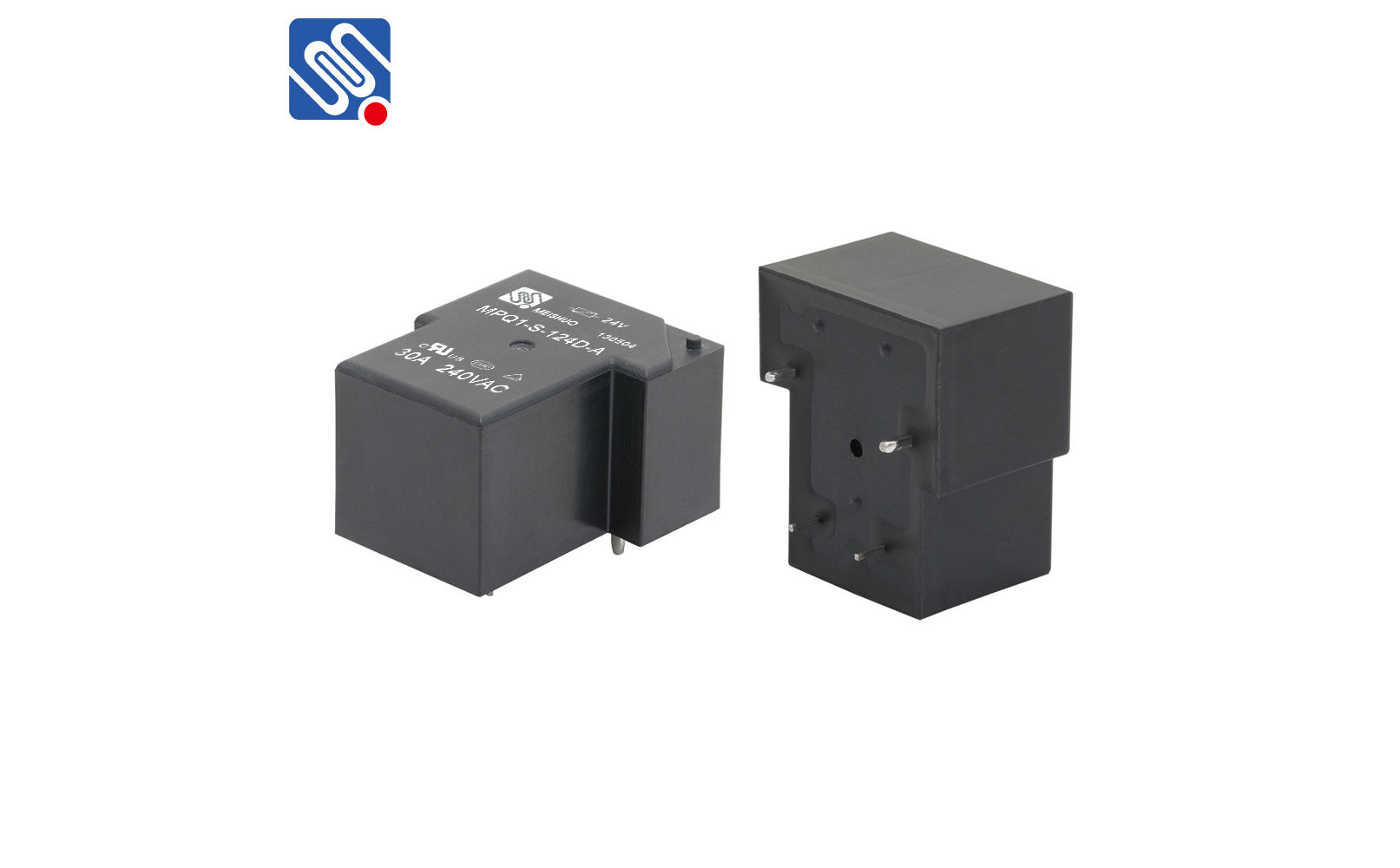

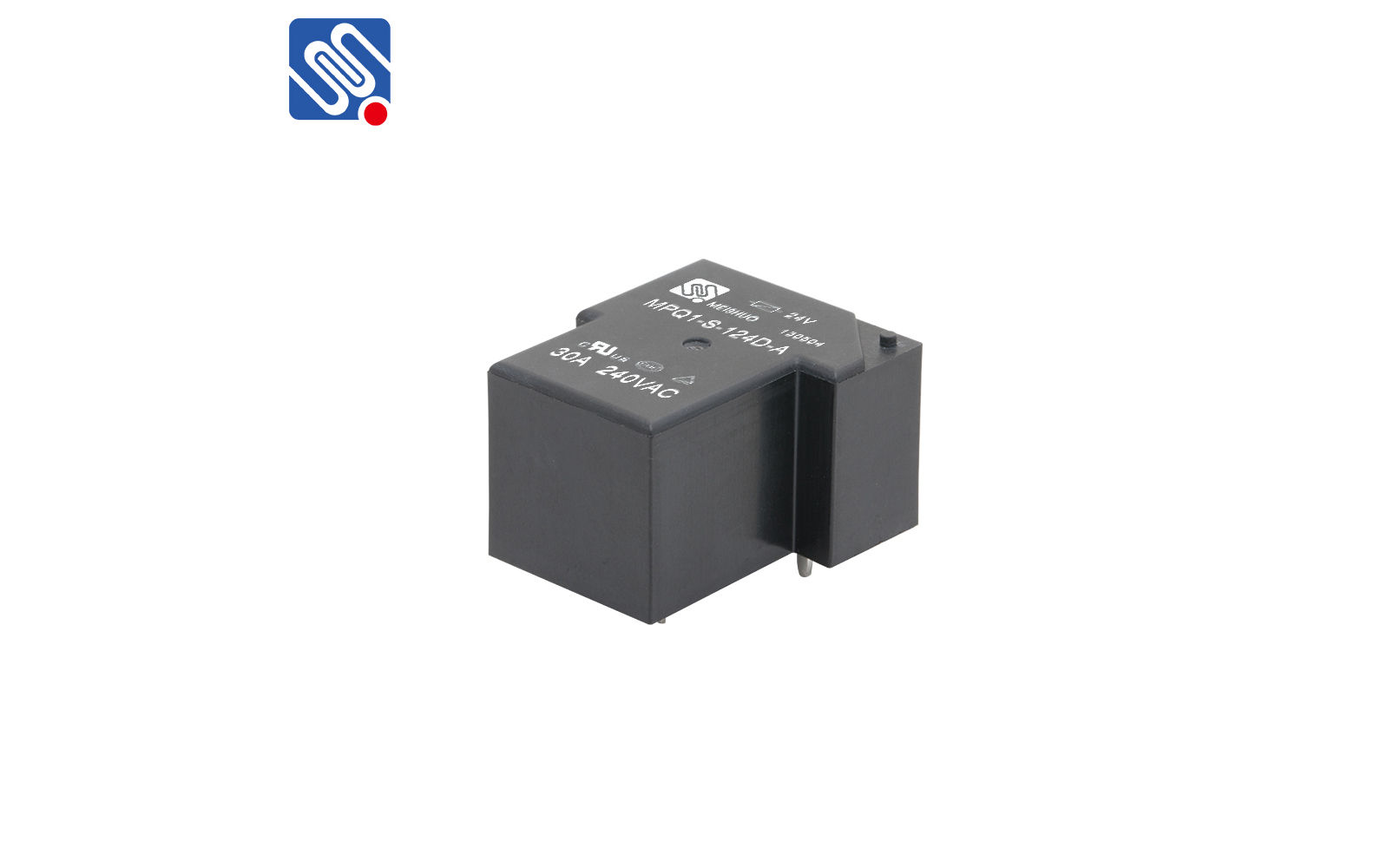

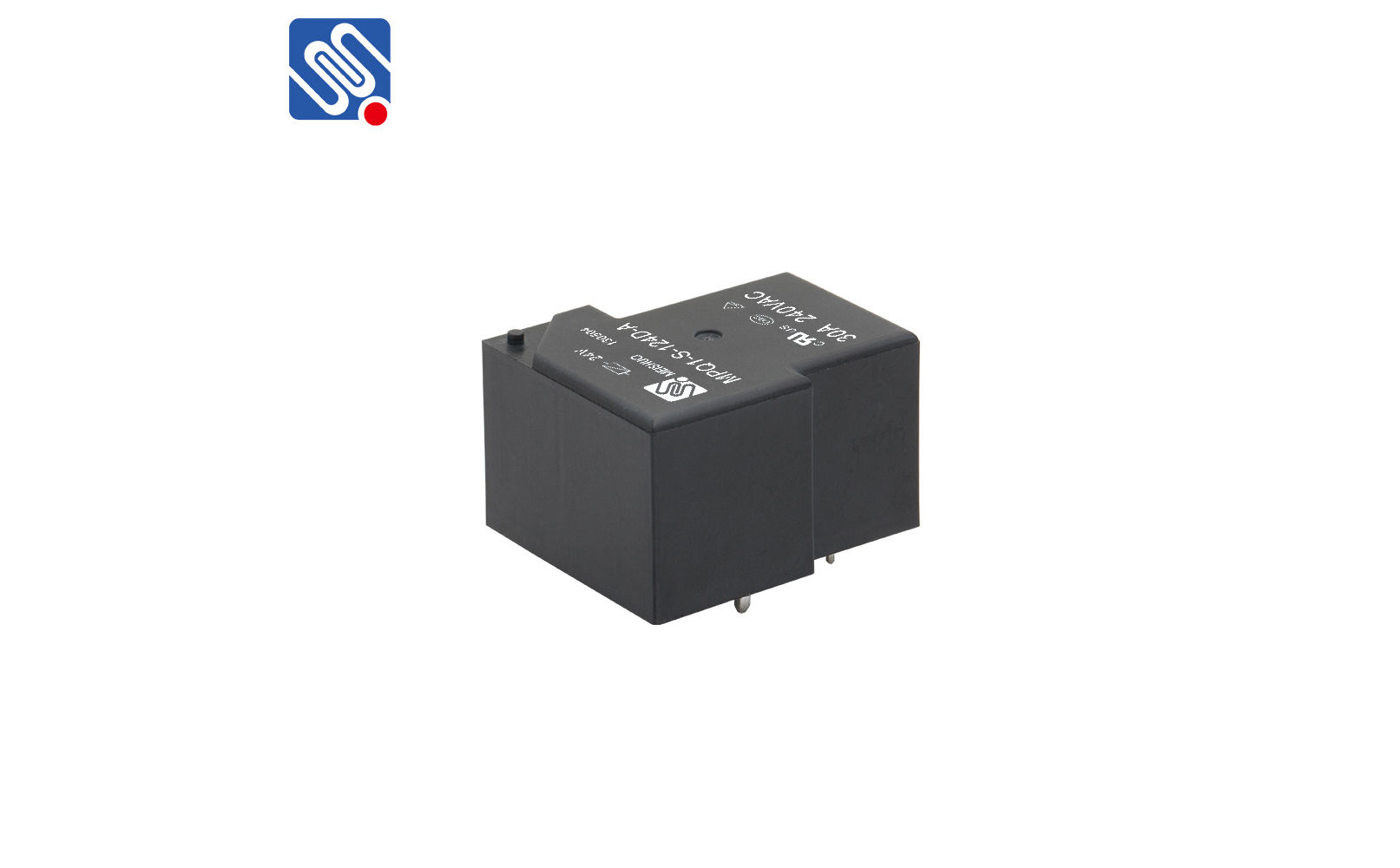

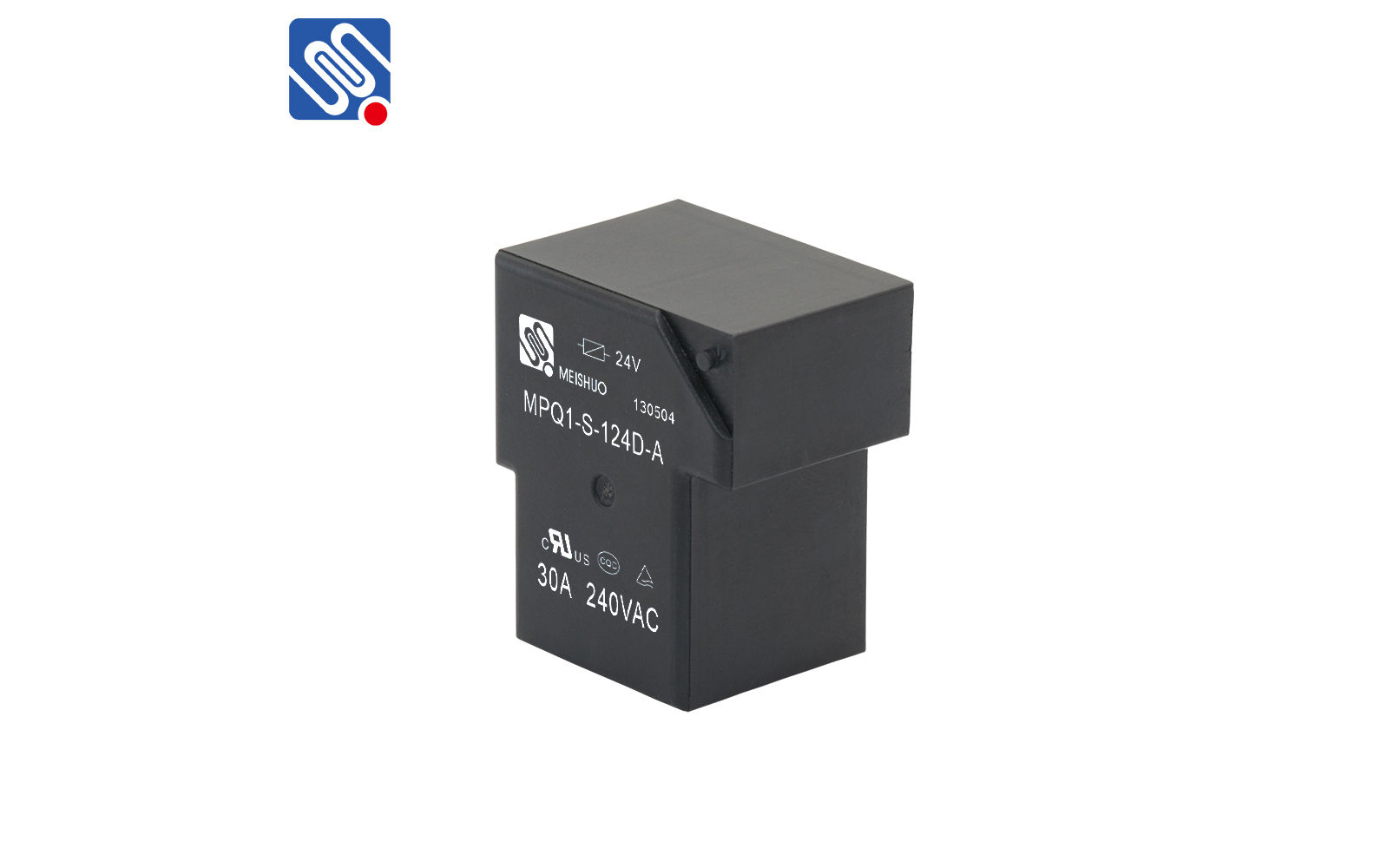

12-volt dc relay switches MPQ1-S-112D-C is a sealed 20A/30A 12vdc one normally open and closed 5pin mini PCB power relay, suitable for water heaters, electric cookers, washing machines, and electric kettle.

PARAMETER

Contact Arrangement: 1A, Open normal type
Contact material: AgNi, AgSnO2
Contact rating: 10A/20A 20A/30A
Coil voltage: 12VDC
Electrical lift: 100,000 cycles
Mechanical Life: 1,000,000 cycles

                                                            Voltage  (VDC)
                                                            12

                                                            Operate Voltage  (VDC)
                                                            ≤9.0

                                                            Release Voltage   (VDC)
                                                            ≥1.2

                                                            Max Allowable coil voltage (VDC)
                                                            15.6

                                                            Coil Resistanc   (Ω±10%)
                                                            160

                                                            Coil Power  (W)
                                                            Approx. 0.9

Air conditioners
Electric cookers
Water heaters
UPS
Microwave oven.
Washing machines
