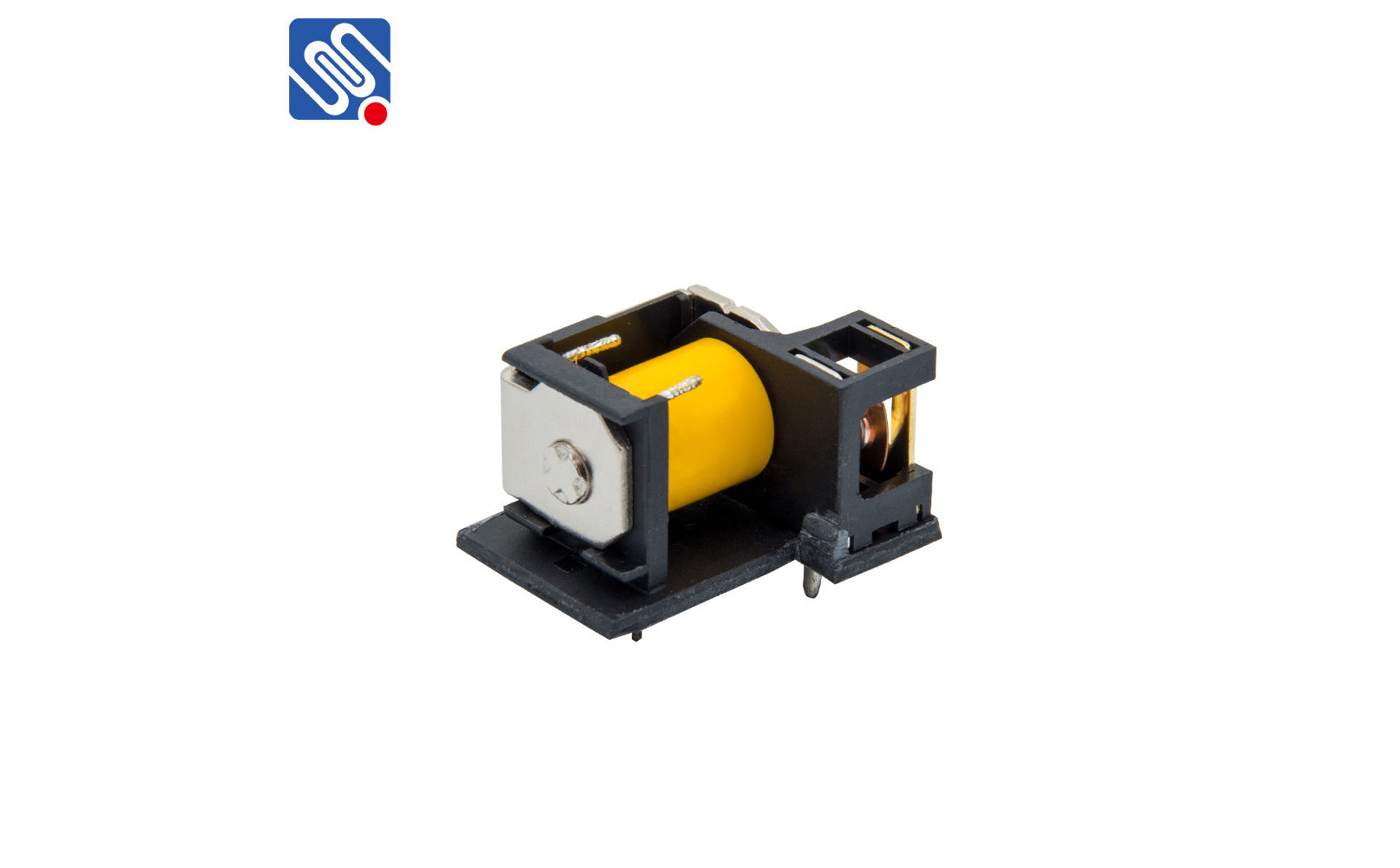

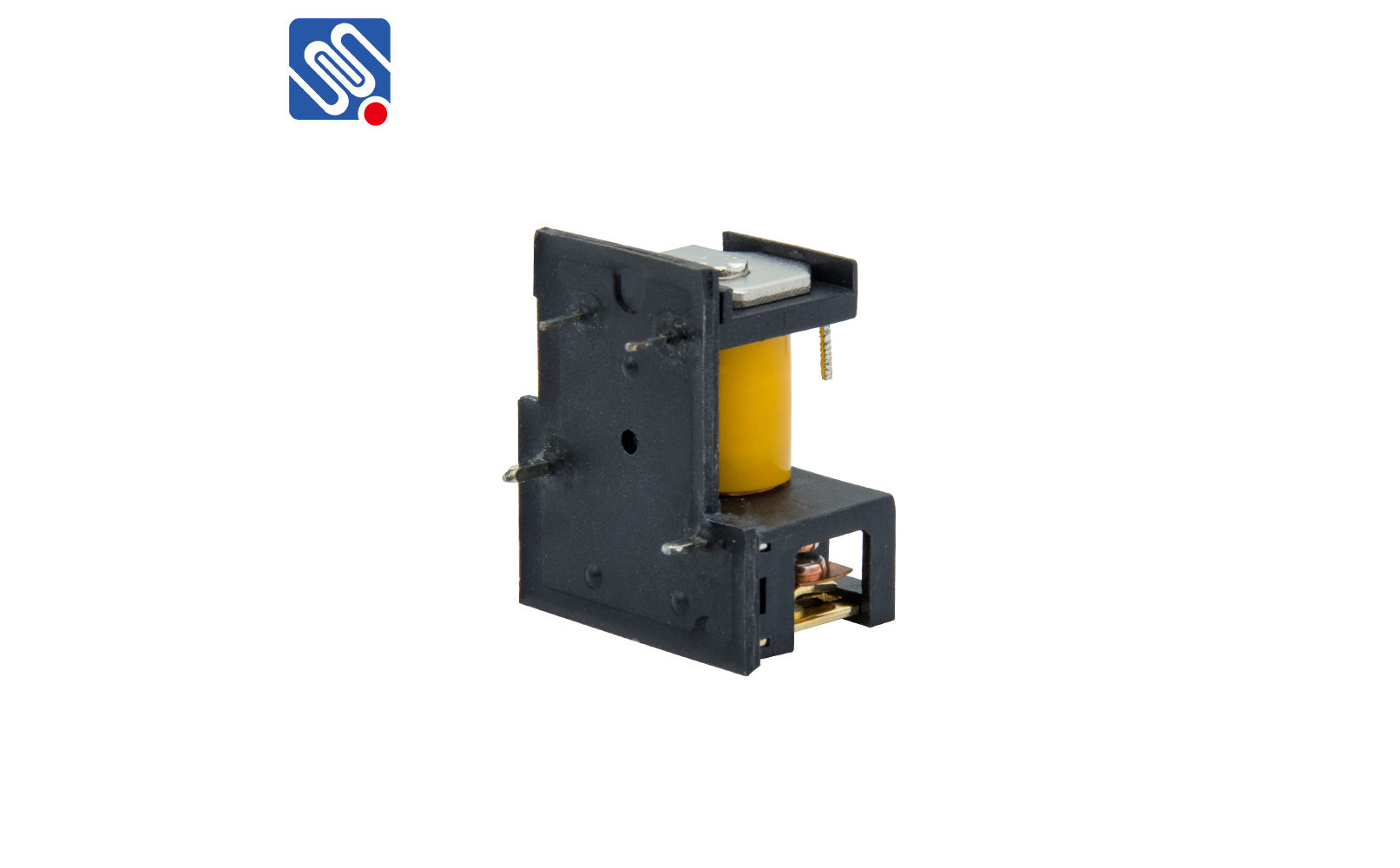

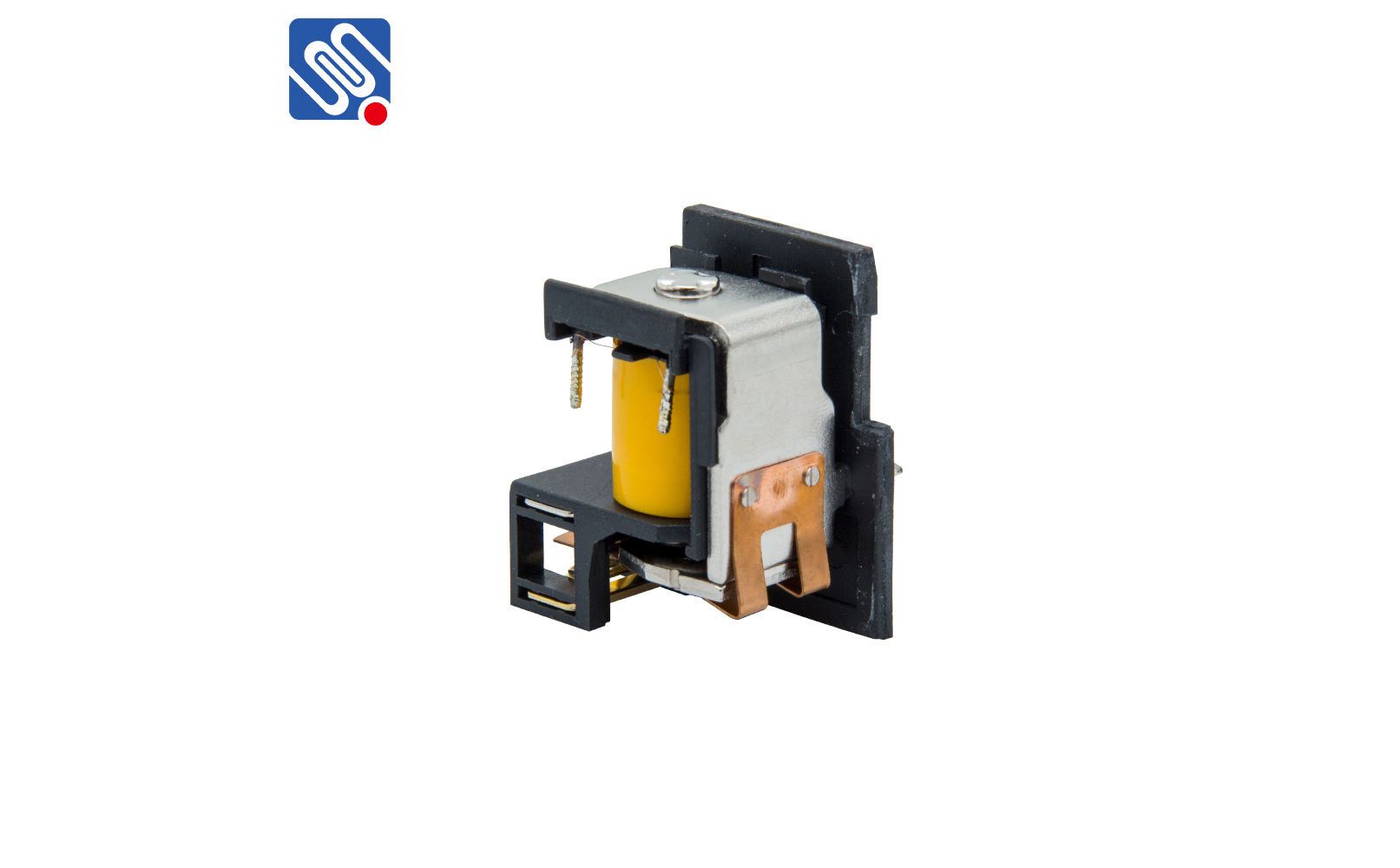

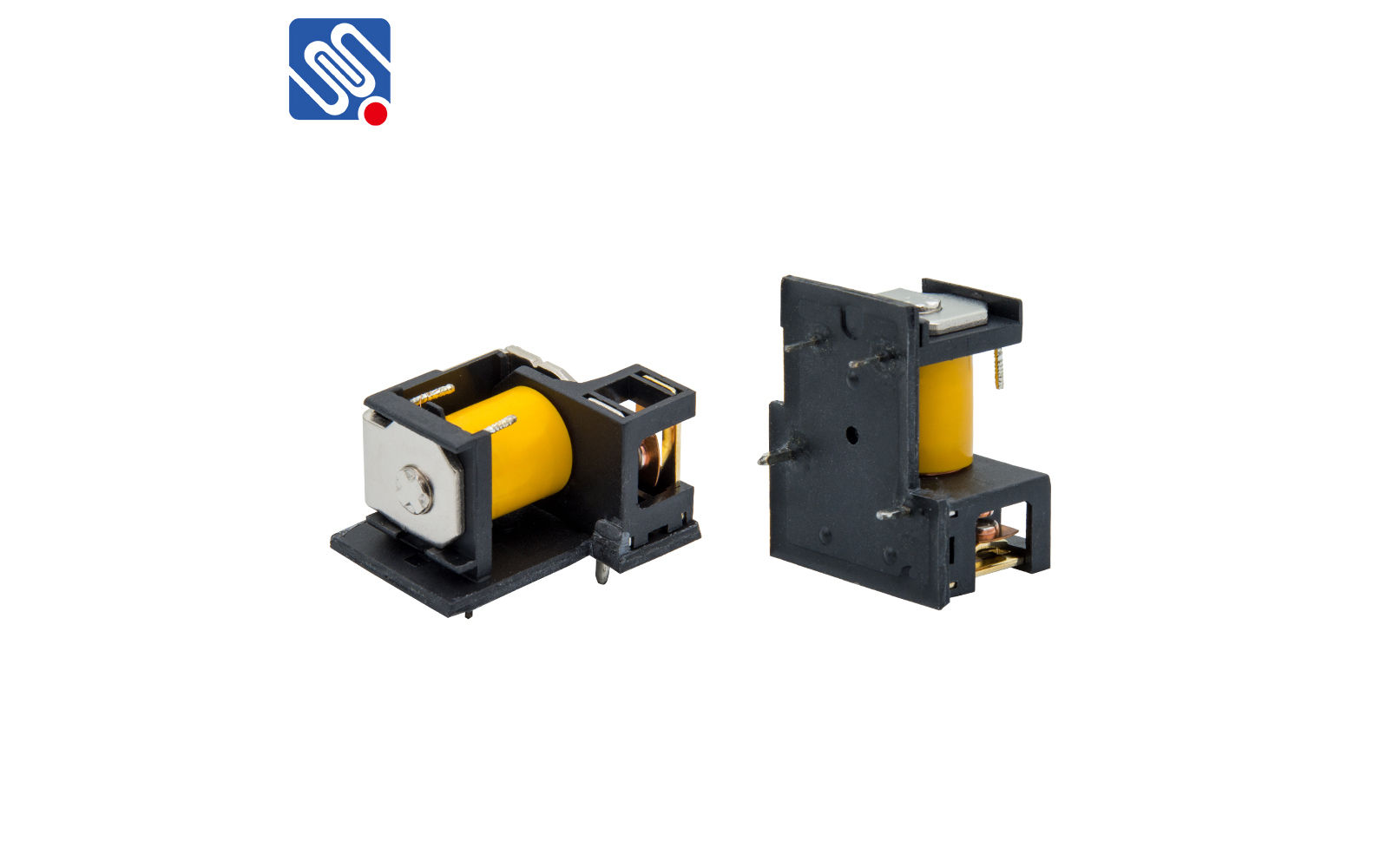

24V RELAY SWITCH MPQ1-124D-A

(0 reviews)

Get Price

(140) Views

(0) Contacts

Contact Company

Yueqing Meishuo Import And Export Co., Ltd.

Zhejiang, China

(712) Views

(0) Contacts

24V RELAY SWITCHES MPQ1-124D-A IS A 30A 24VDC ONE NORMALLY OPEN 4PIN PCB POWER RELAY, SUITABLE FOR WATER HEATERS, AND ELECTRIC COOKERS.

PARAMETER

Contact Arrangement:1A,Change-over type
Contact material:AgNi,AgSnO2
Contact rating:30A
Coil voltage:24VDC
Electrical lift:100,000 cycles
Mechanical Life:1,000,000 cycles

                                                            Voltage   (VDC)
                                                            24

                                                            Operate Voltage  (VDC)
                                                            ≤18

                                                            Release Voltage   (VDC)
                                                            ≥2.4

                                                            Max Allowable coil voltage (VDC)
                                                            31.2

                                                            Coil Resistanc   (Ω±10%)
                                                            640

                                                            Coil Power  (W)
                                                            Approx. 0.9
