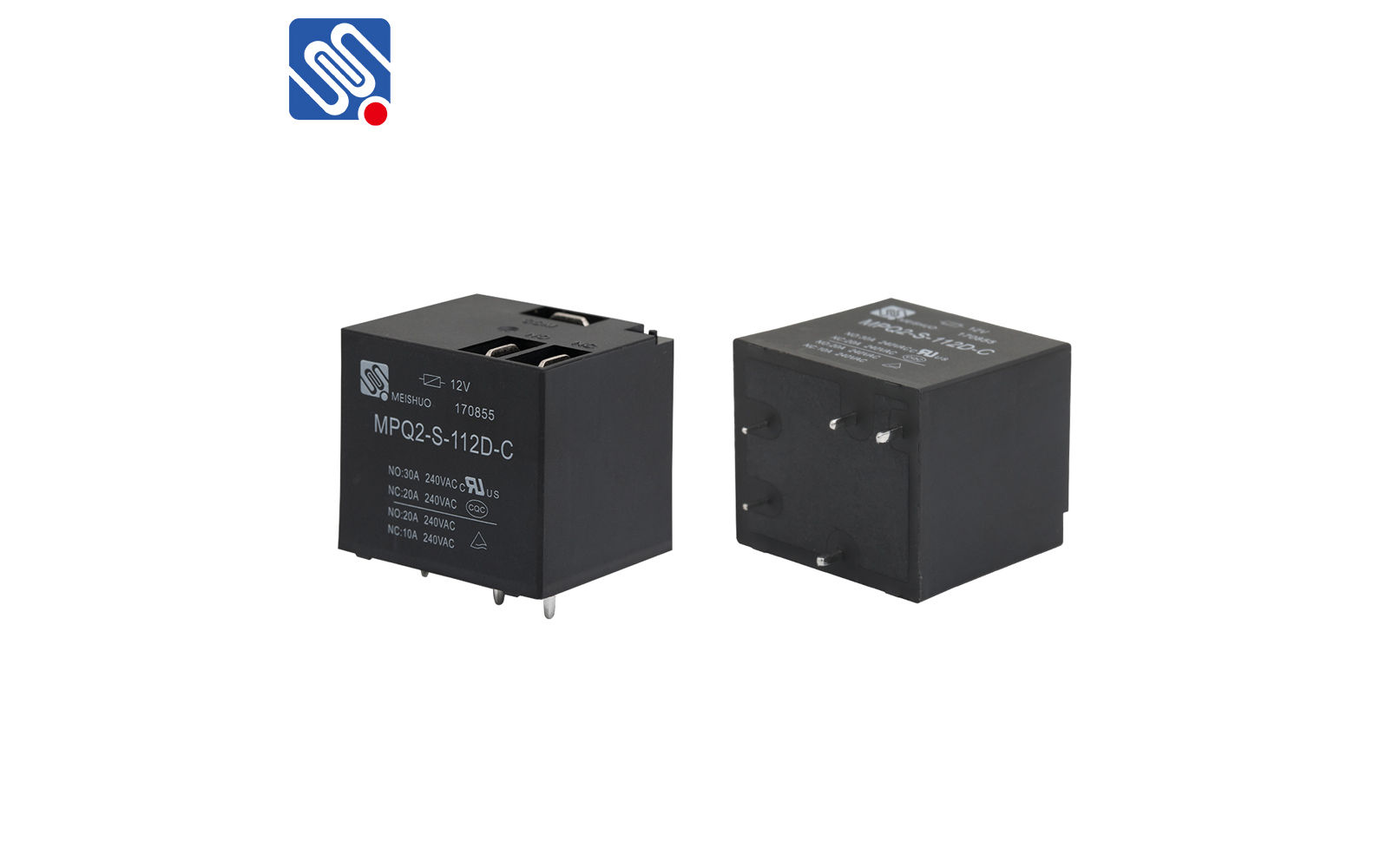

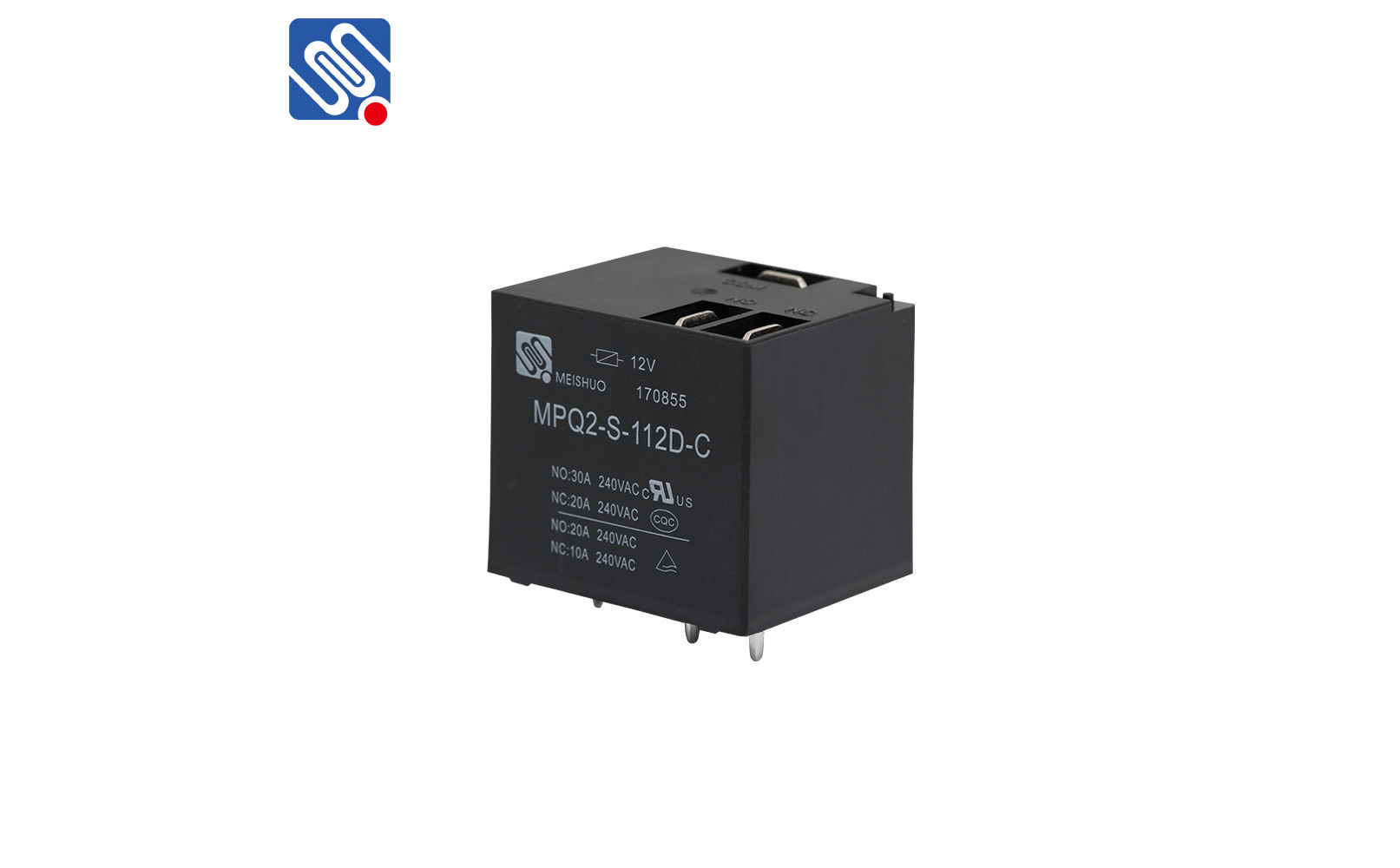

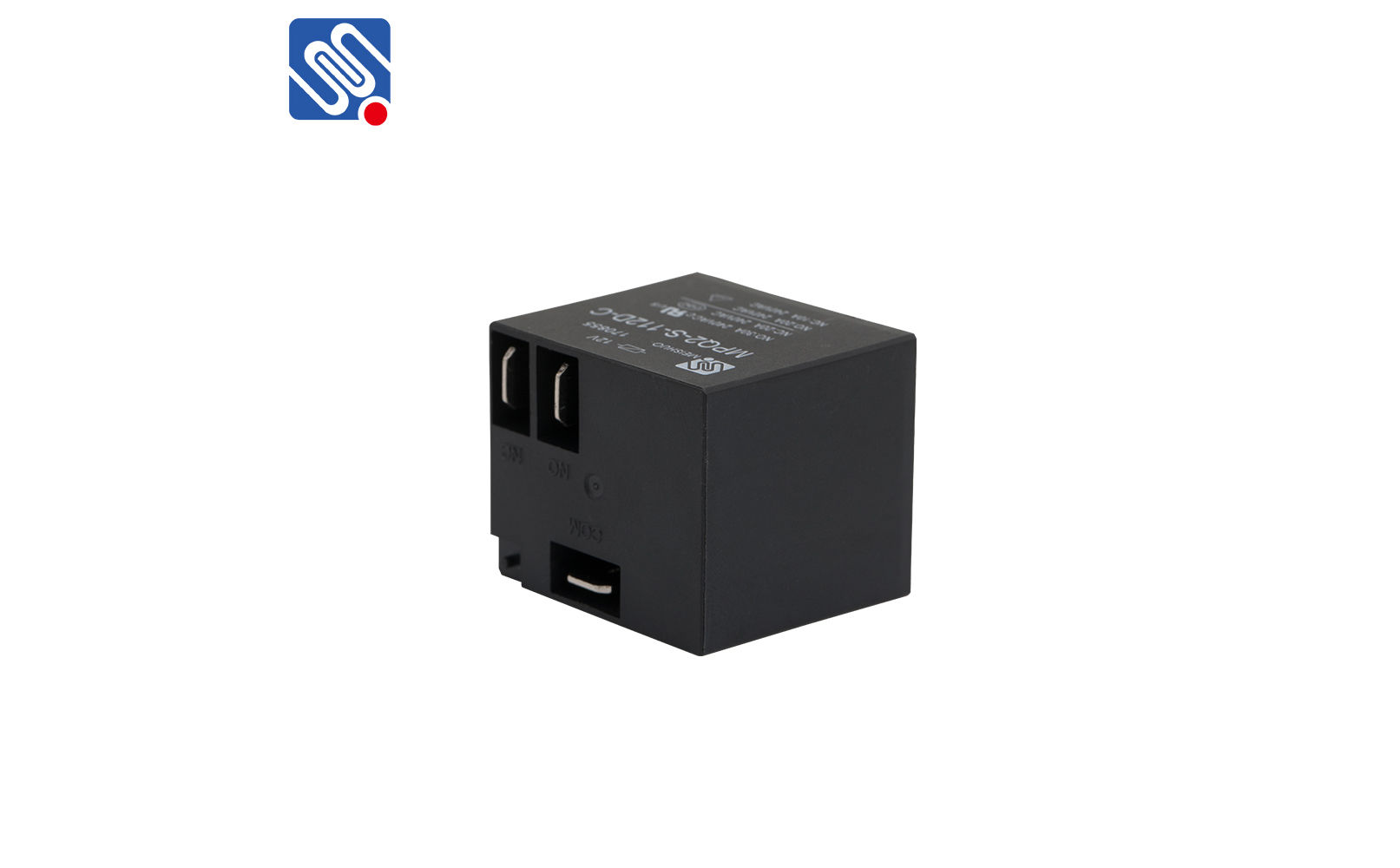

Heavy Duty 12V Relay MPQ2-S-112D-C

(0 reviews)

Get Price

(110) Views

(0) Contacts

2 - 499 pieces 500 - 5999 pieces >= 6000 pieces
$0.85 $0.75 $0.66

Contact Company

Yueqing Meishuo Import And Export Co., Ltd.

Zhejiang, China

(711) Views

(0) Contacts

Heavy Duty 12V Relay MPQ2-S-112D-C is a sealed 30A 5pins mini power relay, suitable for water heaters, electric cookers, washing machines, and UPS.

PARAMETER

Contact Arrangement: 1C,Change-over type
Contact material: AgNi, AgSnO2
Contact rating:10A/20A, 20A/30A
Coil voltage:12VDC
Electrical lift:100,000 cycles
Mechanical Life: 1,000,000 cycles

                                                            Voltage   (VDC)
                                                            12

                                                            Operate Voltage   (VDC)
                                                            ≤19.0

                                                            Release Voltage    (VDC)
                                                            ≥1.2

                                                            Max Allowable coil voltage (VDC)
                                                            15.6

                                                            Coil Power  (W)
                                                            Approx. 0.9

                                                            Coil Resistanc  e (Ω±10%)
                                                            160

Air conditioners
Electric cookers
Water heaters
UPS
microwave oven, etc.
Washing machines
Electric kettles
