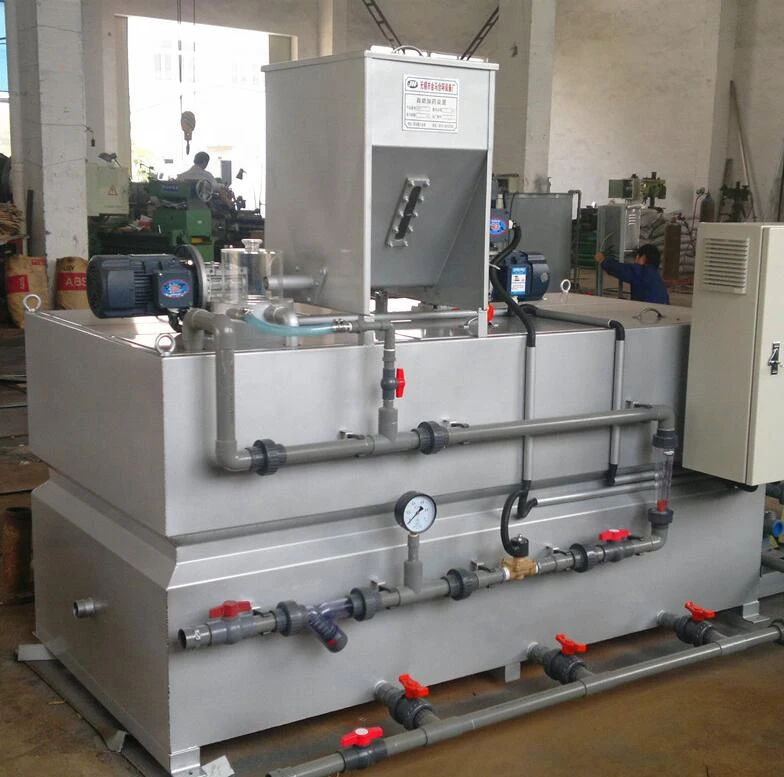

PAM PAC Flocculant Chemical Polymer Dosing System Equipment

(0 reviews)

Get Price

(27) Views

(0) Contacts

1 set/sets
$1,480.00 - $8,990.00

Contact Company

Libaijia (Shandong) Water Treatment Equipment Co., Ltd

Shandong, China

(928) Views

(38) Contacts

An additional piece of machinery that may continuously manufacture and dispense polymer solution is the Automatic Chemical Dosing System. It can effectively and continuously finish the polymer's chemical combination and mixing to produce homogenous, activated solutions. The apparatus is generally applicable to the treatment of sludge dewatering, municipal wastewater, and other technical treatments. The apparatus is a powder medication dosage and configuration system that operates continuously on autopilot. Through the screw propeller located at the bottom of the hopper, the dry powder agent is introduced into the premix along with water. To mix and dilute, the wet material is introduced into the preparation tank. The preparation procedure will automatically end when the liquid level in the storage tank reaches a certain level. Batching will initiate automatically when the solution falls to a low level. Agitators are used in the curing tank and the preparation tank to mature and dilute the agents.
By modifying the inflow flow and the screw shaft's rotational speed, the mixture flow and concentration may be found.

                                                            Function
                                                            Auto Powder Polymer Preparation polymer dosing machine

                                                            Electrical component
                                                            Schneider/Omron/Customize

                                                            Motor
                                                            SEW/NORD/Customize

                                                            Use
                                                            Chemical dosing system for sludge dewatering screw press

                                                            Core components
                                                            Automated 3 series Continuous Flow Polyelectrolyte

                                                            Type
                                                            Automatic polymers making

                                                            Core Components
                                                            Gearbox, Pressure vessel, Pump, Gear, Bearing, Engine, Motor, PLC

                                                            Warranty of core components
                                                            1 Year

                                                            Warranty
                                                            1 Year

                                                            Brand Name
                                                            Flocculant Chemical Polymer Dosing System

                                                            Power
                                                            1.5-1.7kw

                                                            Material
                                                            Wooden package with film, Steel bracket, Stainless Steel, SS304/SS316L/PP/PE

                                                            Weight
                                                            180kgs

                                                            Size
                                                            900*1500*1650

                                                            Productivity
                                                            1000L/Hour

                                                            Weight (KG)
                                                            180 kg

Applications of Flocculant Chemical Polymer Dosing System Equipment

Hotels
Garment Shops
Building Material Shops
Manufacturing Plant
chemical dosing Wastewater Treatment

Benefits of Flocculant Chemical Polymer Dosing System Equipment
1. Using a three-tank integration, which is inexpensive, simple to use, and easy to maintain
2. Dry powder is applied after the dry speculation is carefully moved. The water input can be changed, and the liquid medication's necessary concentration can be set.
3. To prevent caking or degradation, the powder feeder contains heating, anti-condensation, and heat preservation features.
4. The entire preparation procedure is managed by the electric control cabinet, which creates the preparation solution fusion event.
5. To ensure continuous functioning, the alarm system is designed to remind the operator to feed at any time.
6. An RPM LCD screen can be added to the powder feeder to precisely adjust the feeding concentration and speed.
7. Tank: HDPE, PP, SS304, SS316.
