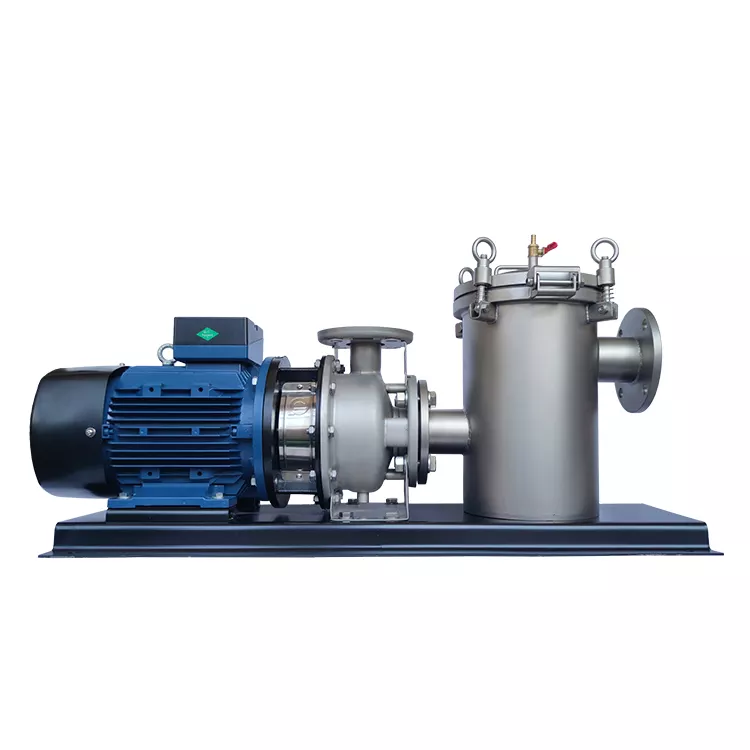

CNP NSZ Stainless Steel Swimming Pool Water Pumps

(0 reviews)

626.15 USD

(241) Views

(0) Contacts

5 piece/pieces
$626.15 - $1,664.60

Contact Company

Tiger (Hangzhou) Flow Systems Co., Ltd.

Zhejiang, China

(461) Views

(0) Contacts

Motor
TEFC motor 2-pole
Protection class： IP 55
Insulation class： F
Standard voltage: 50Hz: 380V 50HZ

Material
Pump body, impeller, filter: Stainless Steel AISI 304
Pump shaft: Stainless Steel AISI 304
Mechanical seal: Graphite/Silicon carbide
Rubber parts: NBR

Operation condition
Flowrate: 0~160m³/h
Head: 0~35.4m
Liquid temperature:-20~100 ℃
Ambient temperature: ≤40 ℃
System pressure: ≤4 bar

                                                            Warranty
                                                            1 year

                                                            Customized support
                                                            OEM, ODM, OBM

                                                            Brand Name
                                                            CNP

                                                            Model Number
                                                            NSZ

                                                            Place of Origin
                                                            Zhejiang, China

                                                            Horsepower
                                                            3~20hp

                                                            Motor
                                                            TEFC Motor

                                                            Power Source
                                                            Electric

                                                            Pressure
                                                            4bar

                                                            Structure
                                                            Single-stage Pump

                                                            Outlet Size
                                                            DN65-100

                                                            Voltage
                                                            380V/220V

                                                            Power
                                                            2.2~15KW

                                                            Keywords
                                                            CNP Sand Filter Circulation Swimming Pool Pump

                                                            Impeller
                                                            Stainless Steel Material

                                                            Material
                                                            Stainless Steel

                                                            Frequency
                                                            50HZ

                                                            Weight
                                                            26-63KG

                                                            IP Class
                                                            IP 55
