Ion exchange water treatment system

(0 reviews)

(146) Views

(0) Contacts

A mixed bed ion exchange in water treatment uses two ion exchange regenerative systems formed in beads shape. It allows the cation and anions resin beads to mix together to remove impurities to produce high-quality water.

$6,000.00 - $17,000.00/ Set|1 Set/Sets(Min. Order)

Contact Company

Dongguan Haiyuan Water Treatment Co., Ltd.

Guangdong, China

(601) Views

(0) Contacts

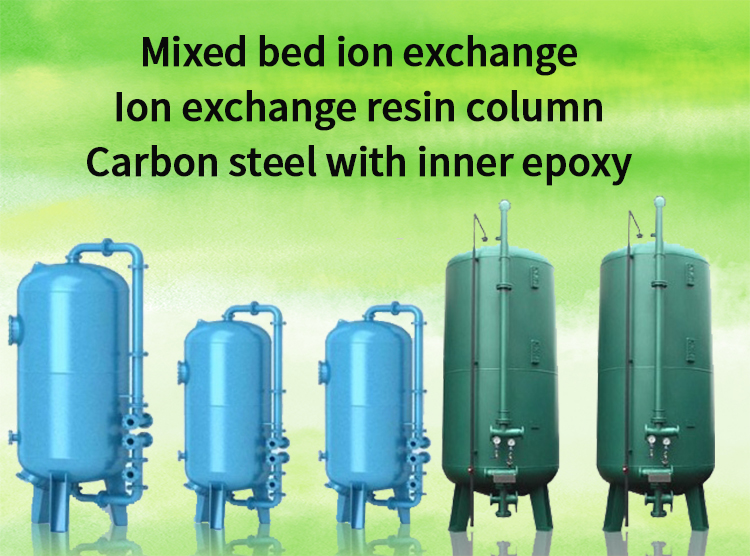

Mixed bed ion exchange

The mixed bed ion exchange acts as a deionizer and effectively removes the ions present in the water.
Efficiently combining both cation and anion resins in a single unit with compressed air for maximum purification results, HY mixed bed polishing systems generate ultra-high purity water with a near-neutral pH and low rinse water requirements.
Cation resin exchanges hydrogen (H+) for cations (i.e. sodium), while anion resin exchanges hydroxyl (OH-) for anions (i.e. chloride).
Hydrogen and hydroxide combine to form water, thereby purifying the incoming water. As the resins effectively remove the last traces of salinity and silica from pretreated water, a purer water is achieved (~18 Megaohm-cm, depending on feedwater quality) than what would otherwise result from conventional demineralization.
Although the process involves more intricate operating procedures (the resins require separation prior to regeneration) our mixed bed exchangers are ideal for polishing certain types of pretreated water streams for use in process condensate, semiconductor industry feed water, and many other applications.

Process function description

1. Ion exchange water treatment system automatic control and semi-control .Pretreatment parts can adopt fiber glass or stainless steel material.

2.Mixed bed ion exchange has protected when no power, poor power, larger electrical current, leakage, short circuit.

3.Ion exchange water treatment system is compact, easy installation.

4.Mixed bed ion exchange equipped with manual and auto control based on user needed.

5. Haiyuan deionizer ion exchanger produce as per ISO and SGS standard and main parts accessories have obtained CE certification.

6. All the ion exchange mixed bed will be commissioning well. Make sure don't have any problem when arrived site.

                                                            Brand Name
                                                            JISHUI

                                                            Type
                                                            Ion exchange water treatment system

                                                            Material
                                                            Wooden box, UPVC or stainless steel

                                                            Origin
                                                            Guangdong, China

                                                            Rejection Efficiency
                                                            99.7%

                                                            Recovery Efficiency
                                                            60%~65%

                                                            Productivity
                                                            1000L/Hour
