Ionic exchange water softener

(0 reviews)

Get Price

(163) Views

(0) Contacts

$100.00 - $666.00/ Piece|1 Piece/Pieces(Min. Order)

Contact Company

Sichuan Jingtang Environmental Equipment Co., Ltd.

Sichuan, China

(809) Views

(3) Contacts

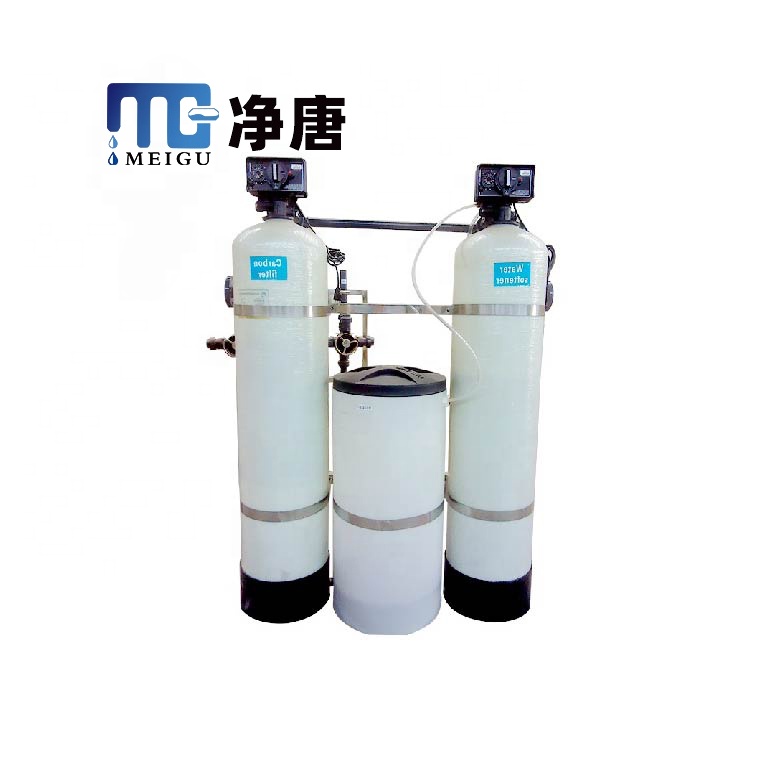

Main Construction:

* Resin pot

* PLC Full Auto Control Valve

* Brine Tank

Introduction of water softeners

The filter element of water softening is resin (we use it to soften water). When water flow into equipment ,

the resin will automatically absorb impurities calcium and magnesium ions in original / source water.

But it will be saturation gradually after using for some time. ,

so then we need saline to restore and regeneration to make resin work again .

Full Auto Water Softener

Widely used for steam boiler , hot water boiler , water heater, Central air conditioning system , superior life water and so on.

Control system : imported from USA, tank material : FRP, carbon steel, Stainless Steel , can design flexiblely as per customer's requirement.

Softening resin : Superior 001x7 Strong acid type sodium ions exchange resin

Brine tank material : PE

                                                            Applicable Industries
                                                            Hotels, Garment Shops, Building Material Shops, Manufa

                                                            Productivity
                                                            1000L/Hour

                                                            Voltage
                                                            100-240V/50-60Hz

                                                            Weight (KG)
                                                            100 kg

                                                            Water-in Pressure
                                                            0.2-0.3Mpa

                                                            Source of water
                                                            Tap water, well water, river etc

                                                            Feature
                                                            Water Softening

                                                            Work Pressure
                                                            0.15-0.6Mpa

                                                            Water-out hardness
                                                            <0.13mmol/L

                                                            Origin
                                                            China

Full Auto PLC Control System
Food grade Resin : ensure softening quality and safety.
PE brine tank with High Density : No deformation
Regeneration programing: Personally design
Humanized double control with both flow and timing type.
Energy saving, time saving , salt saving .
Simple menue operation
Algaecide and anti-bacteria lining : prevent facility pollution
