CM-230 Conductivity meter

This instrument is a panel instrument for on-line monitoring of industrial process conductivity.
Range switch over and constant check can both be freely set and adjusted through the operation component on the rear panel; unique signal collecting and processing technology and special thick film circuit are adopted to make measurement accurate and operation stable; there are also other features such as linearized data, automatic temperature compensation, not subject to the length change of cable and maintenance-free.
Its an ideal auxiliary instrument of various types of small pure water equipment.

Measurement range:	0~20 0~200 0~2000μS/cm
Accuracy	1.5% (FS)
Stability	±2 × 10-3 (FS) / 24h

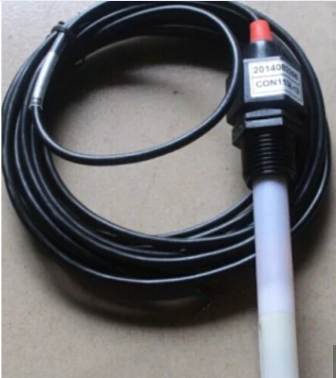

Auxiliary electrode	Plastic structure; constant: 1.0cm-1
Temperature compensation component	NTC
Medium temperature	5~50
Thread dimension	1/2pipe thread
Medium pressure	0~0.5Mpa
Cable composition	Quad cable, copper mesh and foil shielded plastic jacket
Cable length	5m or on other agreement (5~30m)
Temperature compensation	Automatic compensation, with 25 as the reference temperature
Display	3.5-bit LCD
Power supply	AC 220V ±10% 50Hz
Power consumption	≤1W
Environment conditions	(1) Temperature: 5~50 (2) Humidity: ≤85%RH
Dimensions	48 × 96 × 100mm (height × width × depth)
Slot dimensions for installation	45 × 91mm (height × width)

                                                            Origin
                                                            Shanghai, China

                                                            Production Capacity
                                                            10000PCS

                                                            Measuring Range
                                                            0-2000us/Cm

                                                            Supply Voltage
                                                            AC 220V ±10% 50Hz

                                                            Power supply
                                                            AC  220V ±10%  50Hz

                                                            Temperature compensation
                                                            Automatic compensation, with 25 as the reference temperature
