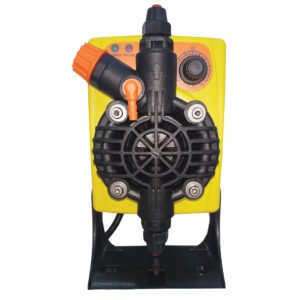

DOSING PUMP NEWDOSE DFD

(0 reviews)

Get Price

(608) Views

(0) Contacts

Contact Company

FAST for Trading & Contracting

Cairo, Egypt

(971) Views

(2) Contacts

Specifications:

Model (M)	Capacity (L/h)	Maximum Pressure (Bar)	Frequency (Strokes number/1’)	Power (W)	Weight (Kg)
DFD-01-07-M	1	7	120	30	2.4
DFD-02-07-M	2	7	120	30	2.4
DFD-03-07-M	3	7	120	30	2.4
DFD-06-05-M	6	5	180	40	2.4
DFD-09-03-M	9	3	180	40	2.4

Model (HX)	Capacity (L/h)	Maximum Pressure (Bar)	Frequency (Strokes number/1’)	Power (W)	Weight (Kg)
DFD-02-20-HX	2	20	180	40	2.4
DFD-05-12-HX	5	12	180	40	2.4
DFD-06-07-HX	6	7	180	40	2.4
DFD-10-05-HX	10	5	200	40	2.4

Model (NX)	Capacity (L/h)	Maximum Pressure (Bar)	Frequency (Strokes number/1’)	Power (W)	Weight (Kg)
DFD-09-07-NX	9	7	160	40	3.2
DFD-12-07-NX	12	7	160	40	3.2
DFD-15-04-NX	15	4	200	40	3.2
DFD-20-03-NX	20	3	200	40	3.2
DFD-25-02-NX	25	2	200	40	3.2

Model (GX)	Capacity (L/h)	Maximum Pressure (Bar)	Frequency (Strokes number/1’)	Power (W)	Weight (Kg)
DFD-06-16-GX	6	16	200	60	3.8
DFD-23-05-GX	23	5	200	60	3.8
DFD-33-03-GX	33	3	200	60	3.8
DFD-55-0.1-GX	55	0.1	240	60	3.8

DOSING PUMP NEWDOSE DFD Benefits and characteristics:
Eco-friendliness and energy efficiency
The pump uses less power and less volume to achieve the same output capacity as other goods of similar nature, which helps to save money, conserve energy, and safeguard the environment.
Superb Small Structure
The PTFE material used for the valve seat offers superior overall tolerance for the liquid contact part. It not only ensures leakproofness but also shields the rubber ring valve seat from corrosion and expansion over time, which could otherwise cause the tightness to decrease and lead to erroneous dosing.
Ultra-low Maintenance Cost:

The diaphragm's extended service life and ultra-excellent tolerance stem from its complete PTFE construction, which significantly lowers the product's maintenance costs. Additionally, we offer a five-year lifetime warranty on the dosing pump's diaphragm.
Leaning to Be Permitted
With an upgraded complete pure PTFE diaphragm, the dosing pump can continue to operate safely and damage-free even after the chemical liquid in the dosing barrel has been used up for a considerable amount of time, if there is no misfeeding or improper operation.
Reduce Complexity in the Process
Efficient and lucid digital display mode and unambiguous parameter configuration save expenses and save time while ensuring flawless control process integration.
Easy to Control Stocking
The uniform valve group, consisting of one-way valves with universal sizes, lessens part and component confusion.
DOSING PUMP NEWDOSE DFD Functional Features:

Manual operating mode that is quick and easy to use.
Whenever the pump runs or stops, the flow can be modified. Buttons are utilized to control the pump's start and stop as well as the stroke frequency (spm). The stroke frequency sitting range is from 1 (spm) to the maximum frequency value.
Maximum pressure is 20 Bar, and the flow range is 1-55 L/h.
There is an alternate five-stage flow that is more precise and manageable.
The operational frequency as of right now is shown digitally.
The NX, GX, and X models have a liquid level switch interface installed.
