Lamella System
(0 reviews)
Get Price
(292) Views
(0) Contacts


Contact Company





Tikal Water & Irrigation Systems
Cairo, Egypt
(1137) Views
(4) Contacts

Lamella clarifiers enhance the traditional sedimentation process by incorporating inclined plates or tubes, providing a larger effective settling area within a compact footprint. This technology is designed to improve particle settling efficiency and optimize the use of space in sedimentation basins,.

Several designs
1- Chevron Tube Settler
An innovative design, a choreography that optimizes settling efficiency.
  • Optimized Tube Configuration: Tubes are strategically arranged to maximize settling surface area.
  • Tube Inclination for Enhanced Performance: Tubes set at 45-60 degrees optimize gravitational forces.
  • Hydraulic Efficiency: Hydraulic loading rates range from 6 to 13 m³/m².hr.
  • Solids Removal Efficiency: Removal rates range from 70% to 90%.
  • Particle Size Handling: Effective for particles as small as 20 micrometers.
  • Footprint Efficiency: Compact design saves 20-50% space.
  • Energy Consumption: Operates under gravity, minimizing energy use.
  • Biosolids Concentration: Achieves 2-5% solid concentrations in dewatered sludge.

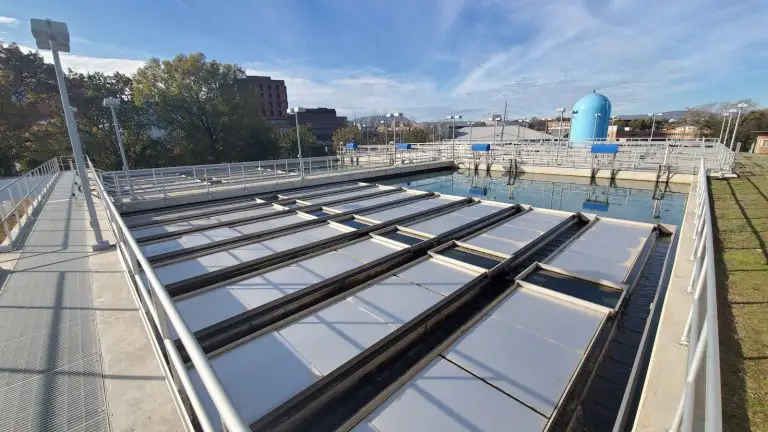

2- Parallel Plate Settlers
  • Parallel plate settlers compose a symphony of closely spaced.
  • Plates are set at a precise inclination angle, typically ranging between 45 to 60 degrees, ensuring optimal particle settling and water drainage.
Surface Area Optimization:
  • The surface area for settling is maximized through the careful arrangement of closely spaced plates.
  • Our PPS units provide up to 2-3 times the settling surface area compared to traditional sedimentation tanks.
  • Achieve hydraulic loading rates range from 1 to 5 m³/m².hr, showcasing exceptional efficiency.
3-Hexagonal Tube Settlers
  • Hexagonal Configuration for Superior Efficiency
  • Tikal’s Hexagonal Tube Settlers feature a unique arrangement of tubes, forming a hexagonal pattern that maximizes the settling surface area.
  • Settling surface area: Achieve a 30% increase in compared to traditional square or circular tube settler designs.
Hydraulic loading rates
  • Low to Moderate Loading Rates: in the range of 1 to 3 m³/m².hr, For applications where a high degree of solids removal is required, such as in drinking water treatment plants, hydraulic loading rates
Moderate to High Loading Rates
  • rates in the range of 3 to 5 m³/m².hr or higher may be employed.
