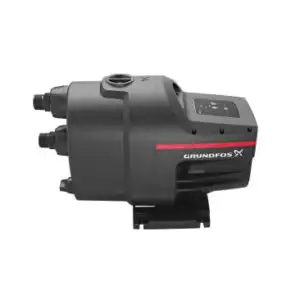

The Grundfos SCALA1 is a self-priming, multistage pump, that incorporates all the components of a pressure booster into a compact composite enclosure.
As it is self-priming, the SCALA1 can pump water from a level below the pump. Provided it is filled with water, the pump can lift water from a depth of 8 m in less than 5 minutes. This facilitates easy installation and start-up of the pump and provides more reliable water supply in installations where there is a risk of dry running and leakages in suction hose or pipes.

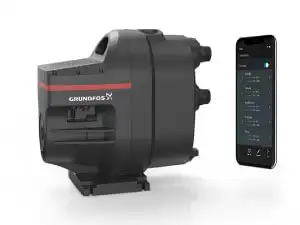

SCALA1 can communicate with Grundfos GO app via built in Bluetooth, which enables detailed pump monitoring and high customization options, making this pump a good fit for every application.

                                                            Made in
                                                            Europe

                                                            Model
                                                            SCALA1 3-35

                                                            Rated flow
                                                            2.78 m³/h

                                                            Rated head
                                                            20 m

                                                            Code for shaft seal
                                                            BVBP

                                                            Pump housing
                                                            Composite

                                                            Impeller
                                                            Composite

                                                            Inlet/Outlet
                                                            25mm (1″)

                                                            Rated power P2
                                                            0.47 kW

                                                            Mains frequency
                                                            60 Hz

                                                            Maximum current consumption
                                                            2.65 A

                                                            Length of cable
                                                            1.5 m

                                                            Weight
                                                            13.5 kg

Applications of Grundfos SCALA1 3-35

Designed for pressure boosting in domestic installations. Use SCALA1 for:

pumping from a roof tank, break tank or ground tank
water supply from shallow wells (less than 8 m.)
pressure boosting from city mains water.

For domestic pressure boosting, you get water on demand for:

taps and showers in the home
garden and lawn irrigation.

Features of Grundfos SCALA1 3-35

Dry running protection that will automatically stop the pump in case of water shortage
Cycling protection which will prevent pump starting frequently in case of minor leakages in installation
Max runtime protection can stop the pump after a desired period of continuous operation, preventing potential damage due flooding in case of pipe breakages.
The pump has a built-in motor protection that will stop the pump if exposed to excessive temperature due to high ambient temperature, in case of seizure or overload, thus preventing a motor burnout.
