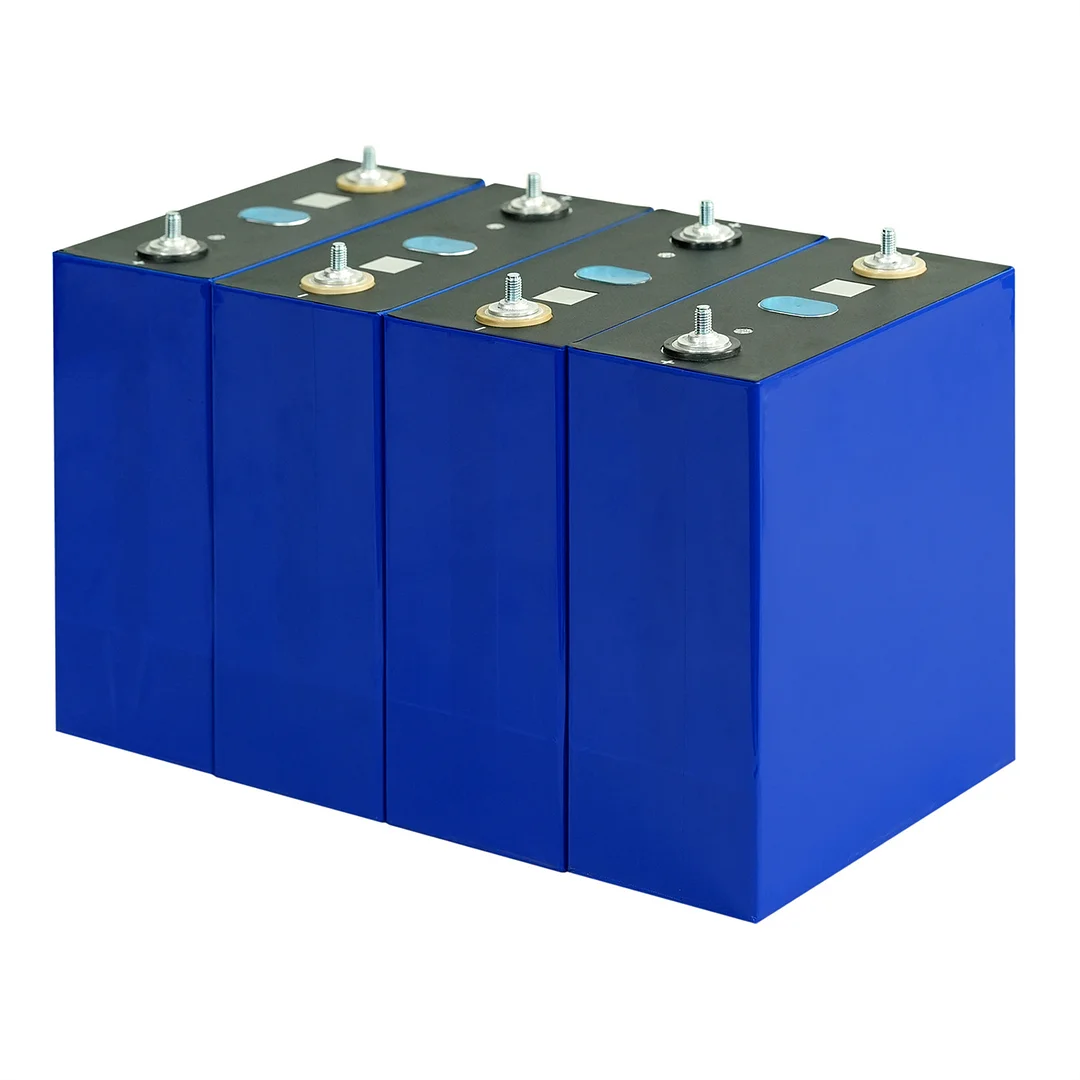

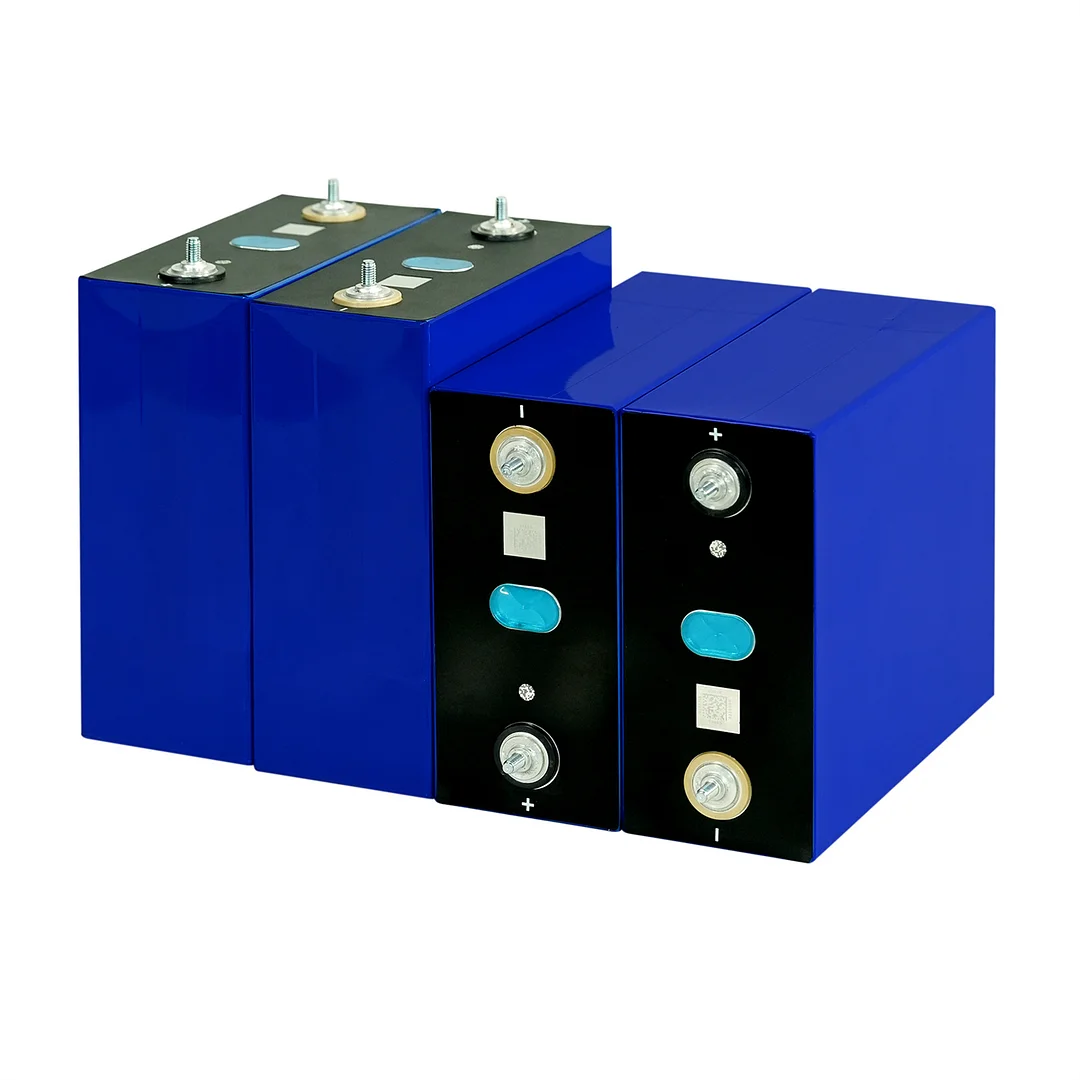

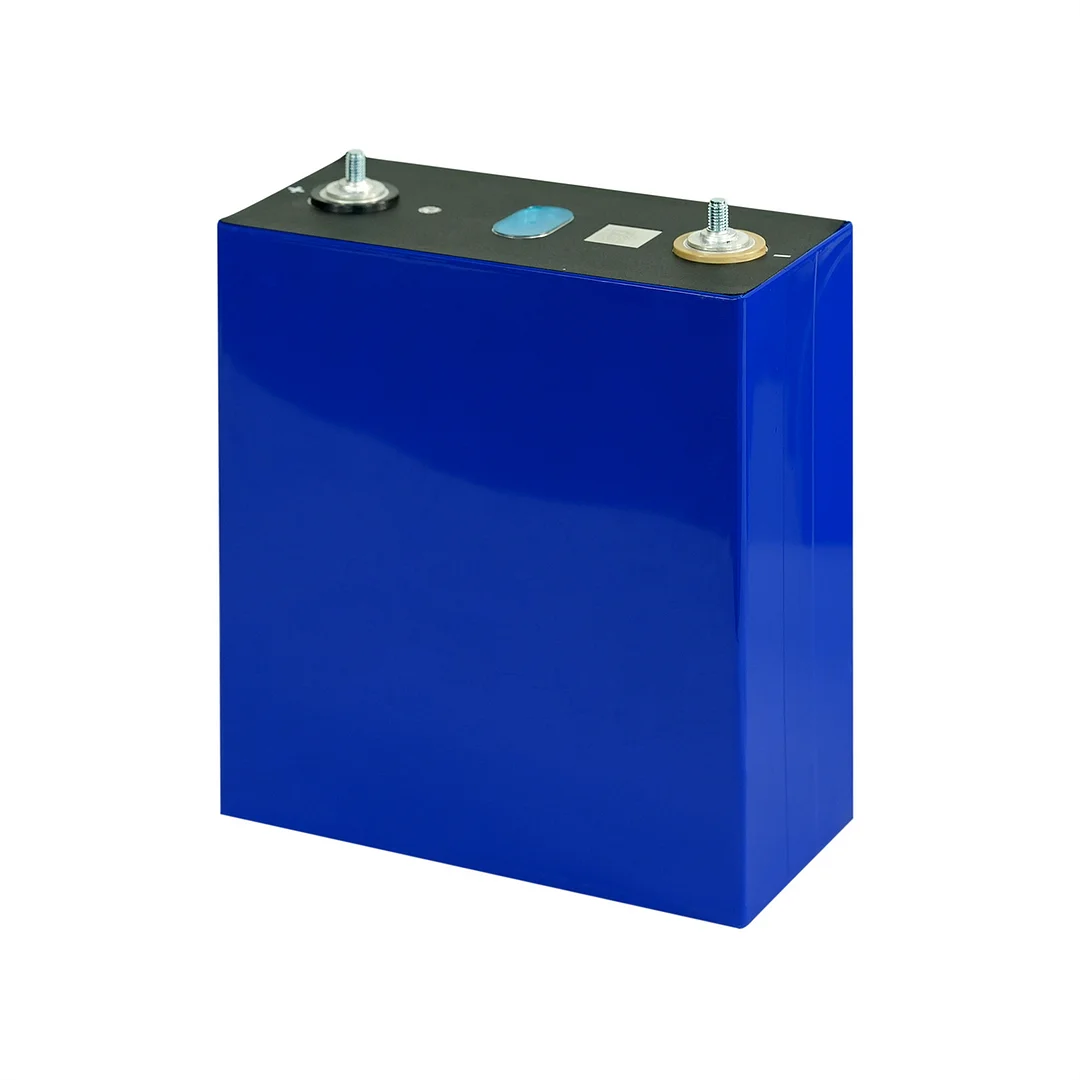

NEW Gotion LiFePO4 340Ah Cell

OFF - 190 $

NEW Gotion LiFePO4 340Ah Cell

(0 reviews)

929 USD - 739 USD

(530) Views

(0) Contacts

$739.00/1 Piece

Contact Company

SOEC Energy Co., Ltd.

Guangdong, China

(1608) Views

(2) Contacts

PLEASE NOTE:
1. One cell will include a busbar, two screw caps, and two shims at no additional cost. (For instance, four pieces) Cells will include eight screw caps, eight shims, and four busbars.)
2. Every cell must be employed under the BMS's rigorous supervision, guidance, and protection.
3. Always charge the cells to full voltage before using them for the first time.
4. Prior to delivery, we will match every cell in terms of capacity, voltage, and resistance.
5. Experienced do-it-yourselfers can use the battery.

                                                            Battery brand
                                                            GOTION

                                                            Material
                                                            Lithium Iron Phosphate(LiFePO4 or LFP)

                                                            Nominal voltage
                                                            3.2V

                                                            Operational voltage
                                                            2.0V – 3.65V

                                                            Nominal capacity
                                                            340Ah

                                                            AC internal resistance
                                                            ≤0.5mΩ

                                                            DC internal resistance
                                                            0.1-0.3mΩ

                                                            Weight
                                                            6.07±0.1kg

                                                            Dimensions (mm)
                                                            202.6(Pole included)*175.4*81.2±1

                                                            Terminal
                                                            M6 Laser Welding Screw Hole

                                                            Cycle life
                                                            ≥4000 cycles (1C/1C, DOD 100%, 25±2℃, SOC≥80%)

                                                            Standard charge/discharge current
                                                            0.5C/0.5C

                                                            Standard charge/discharge cut-off Voltage
                                                            3.65V/2.5V

                                                            Max Continuous charge/discharge current
                                                            1C/1C

                                                            Max Pulse charge/discharge current(30s)
                                                            2C/2C

                                                            Recommended SOC window
                                                            10%～90%

                                                            Residual Capacity loss
                                                            Per month≤3.0%

                                                            Charging temperature
                                                            0℃~55℃

                                                            Discharging temperature
                                                            -30℃~60℃
