100ah 200ah Powerwall Lithium Battery Deep Cycle (AN-LPB-N)

(0 reviews)

Get Price

(1159) Views

(0) Contacts

Contact Company

Guangzhou Anern Energy Technology Co., Ltd

messages.no address inserted..

(2258) Views

(2) Contacts

                                                            Model
                                                            AN-LPB-N-24100, AN-LPB-N-24200,    AN-LPB-N-48100,   AN-LPB-N-48200

                                                            Warranty
                                                            5years

                                                            Battery Type
                                                            LiFePO4

                                                            Typical Capacity(AH)
                                                            100AH, 200AH, 100AH, 200AH

                                                            Weight(kg)
                                                            32kg, 54kg, 55kg, 85kg

                                                            IP Grade
                                                            IP54

                                                            Typical Voltage(V)
                                                            25.6V, 25.6V, 48V, 48V

                                                            Dimension(mm)
                                                            580*400*160mm, 580*400*160mm, 580*400*160mm, 770*500*160mm

                                                            Voltage Working Range(V)
                                                            21.6-29.2V, 21.6-29.2V, 40.5-54.75V, 40.5-54.75V

                                                            Cycle Life
                                                            >6000

                                                            SOC Accuracy
                                                            <8%

                                                            Storage Temperature(°C)
                                                            -20-+35°C

                                                            Max. Discharge Current(A)
                                                            100A, 100A,  100A, 100A

                                                            Nominal Capacity(KWH)
                                                            2.56KWH, 5.12KWH, 4.8KWH, 9.6KWH

                                                            Max. Charge Current(A)
                                                            50A, 50A, 50A, 50A

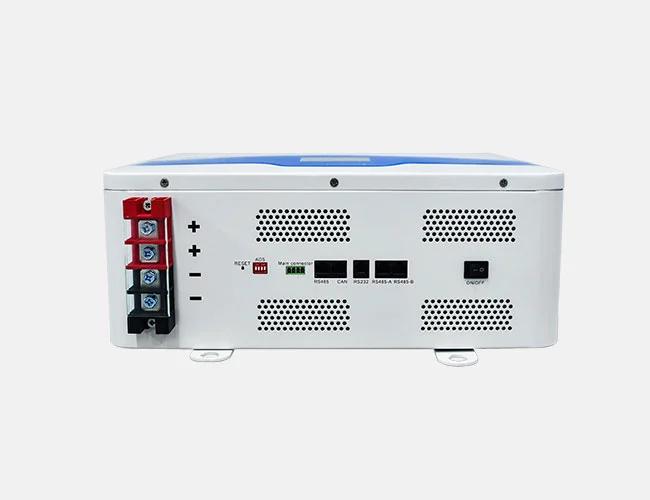

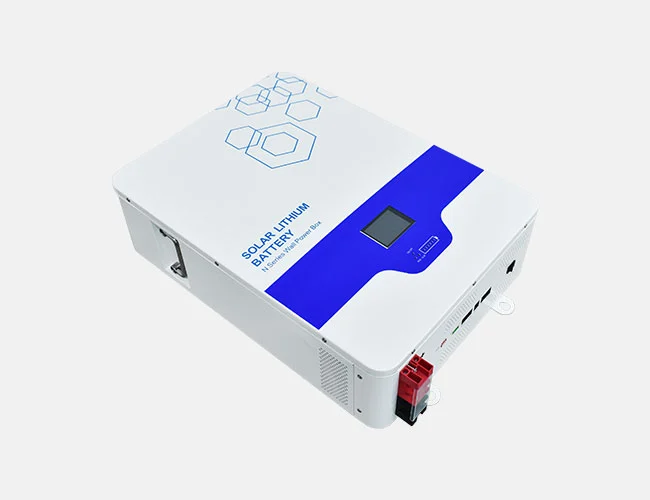

Anern Powerwall solar battery, mainly for home energy storage systems.

Using brand-new A-level square lithium iron phosphate battery cells, the cycles are more than 6000 times under 95% DOD.
With the function of capacity expansion, can support 16 batteries connected in parallel in maximum to meet the needs of capacity requirement.
With an LCD display and LED status indicator, the LCD display can show various parameters of battery operation and the LED indicator can display the working status of the battery in a more intuitive way.
BMS can flexibly adjust the charge and discharge of the battery according to the actual use of the solar system, and protect the battery from overcharge and over-discharge.
