Mcb Miniature Circuit Breaker

(0 reviews)

Get Price

(511) Views

(0) Contacts

100 - 2999 pieces 3000 - 9999 pieces

$0.60 $0.59

>= 10000 pieces

$0.58

Contact Company

Shanghai Cet Electric Co., Ltd

Shanghai, China

(1704) Views

(0) Contacts

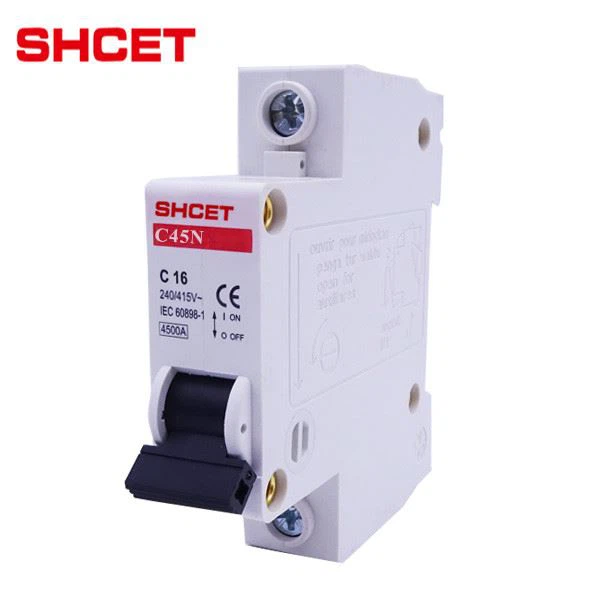

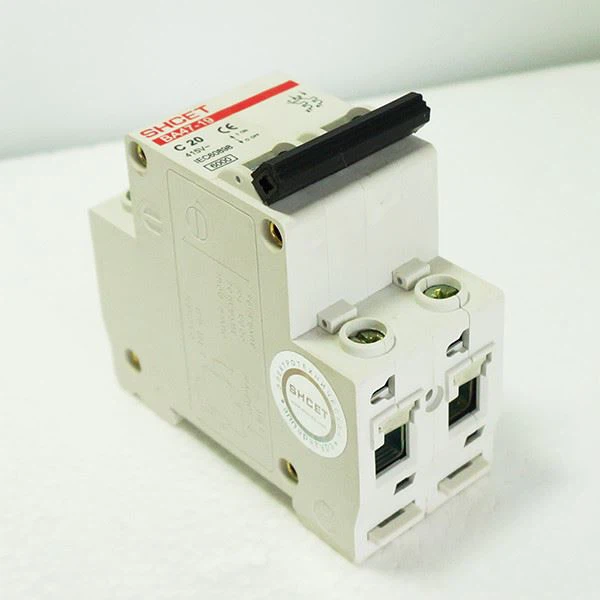

The MCB (Miniature Circuit Breaker) is a critical component in modern electrical systems. It is intended to safeguard electrical circuits from overloads and short circuits, hence assuring the overall system's safety and proper operation. MCB is widely utilized in residential, commercial, and industrial applications and has become an essential component of modern life.

                                                            Model
                                                            C45N

                                                            Storage Temperature  ℃
                                                            -25 - +70

                                                            Rated Current  A
                                                            1, 2, 3, 4, 5, 6, 10, 16, 20, 25, 32, 40, 50, 63

                                                            Protection Degree
                                                            IP20

                                                            Number Of Poles  P
                                                            1P, 2P, 3P, 4P

                                                            Mechanical Life  t
                                                            ≥20000 operations

                                                            Rated Voltage  V
                                                            1P: 240/415V; 2P, 3P, 4P: 415V

                                                            Rated Frequency  Hz
                                                            50/60

                                                            Thermo-magnetic Release Characteristic Curve
                                                            B, C, D

                                                            Rated Breaking Capacity  A
                                                            4500 6000

                                                            Rated Impulse Withstand Voltage (1.2/50) Up  V
                                                            4000

Curve of Characteristics

Thermo-magnetic Expansion Characteristic Mini circuit breakers often have B, C, and D curves.
The B Curve indicates that the MCB trips between 3-5 times full load current.
The C Curve indicates that the MCB trips between 5 and 10 times full load current.
D Curve indicates that the MCB trips 10-14 times the entire load current.
The circuit breaker's relative curve diagram is shown below.
current.
The relative curve diagram is shown below.
