Automatic Transfer Switch ATS MDQ2

(0 reviews)

Get Price

(468) Views

(0) Contacts

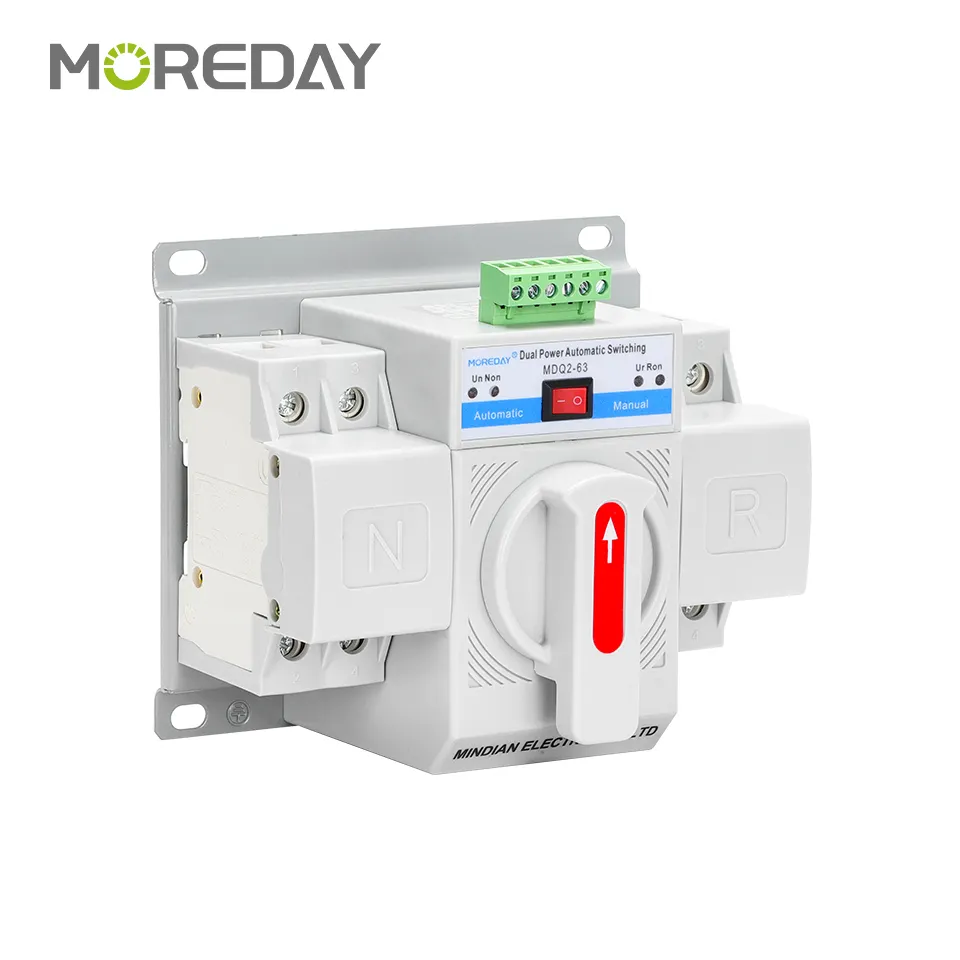

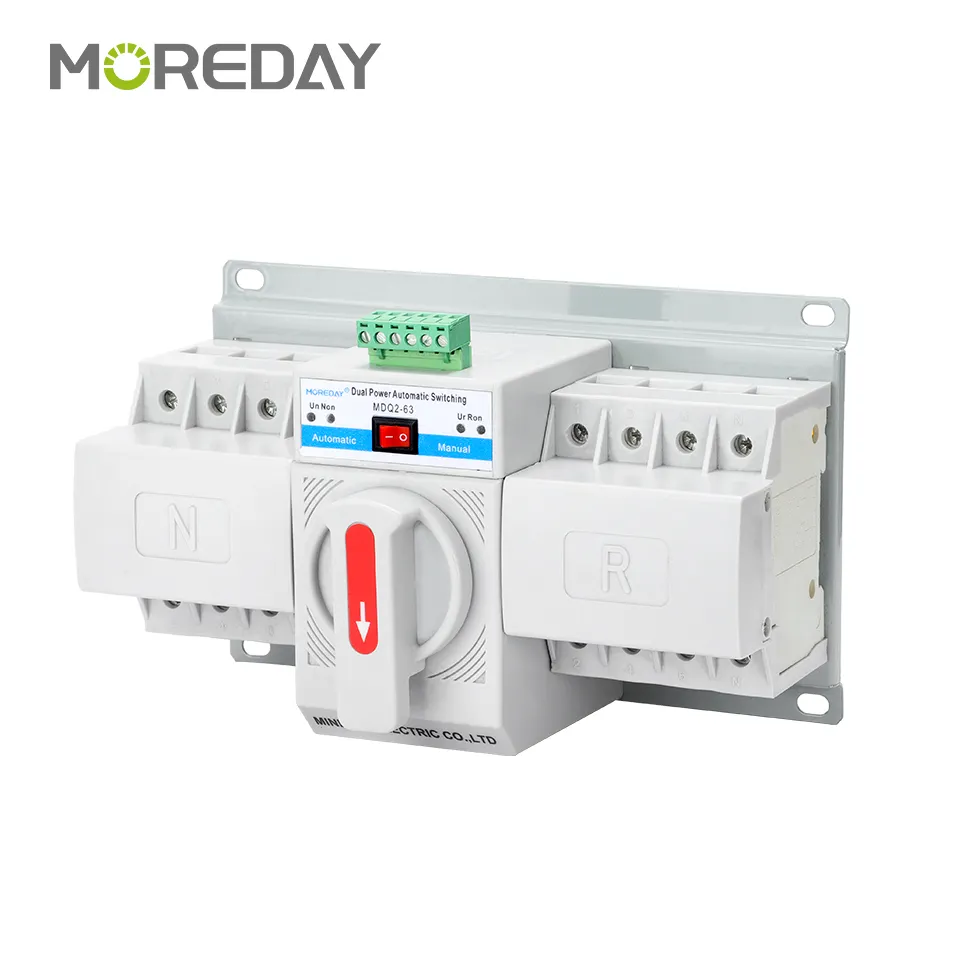

MOREDAY MDQ2 ATS swtich AC 400V 63A CB level

1 - 99 pieces 100 - 999 pieces
$16.85 $15.85
>= 1000 pieces
$14.85

Contact Company

Mindian Electric Co., Ltd.

Zhejiang, China

(2074) Views

(13) Contacts

UP TO 400V 63A CB LEVEL ATS SWITCH
A CB-level automatic transfer switch (ATS) is an essential piece of equipment used to switch the power source between a primary and a backup source, ensuring a continuous flow of electricity in the event of a power outage. CB level stands for “circuit breaker level,” which means that the ATS is designed to handle higher electrical loads.
Automatic transfer switches are crucial for maintaining power continuity in various applications, such as hospitals, data centers, and manufacturing plants. By automatically transferring the power source, they minimize downtime and ensure the safety of both people and equipment.
CB LEVEL ATS CONSISTS OF SEVERAL MAIN COMPONENTS

Main contacts: These are responsible for connecting and disconnecting the power sources.
Control panel: This monitors the power sources and controls the switch operation.
Transfer mechanism: This physically switches between the power sources.
Circuit breakers: These protect the equipment from electrical faults.

                                                            Model
                                                            MDQ2

                                                            Cetification
                                                            CE

                                                            Rated Current
                                                            10A-63A

                                                            Rated Voltage
                                                            AC400V

                                                            Control Voltage
                                                            AC230V

                                                            Rated Short-circuit Breaking Capacity
                                                            3KA

                                                            Rated Short-circuit Making Capacity
                                                            3KA

                                                            Rated Insulation Voltage
                                                            AC500V

                                                            Standard
                                                            IEC60947-1

                                                            Connecting Time
                                                            ≤3S

                                                            Frequency
                                                            50/60HZ

BENEFITS OF CB LEVEL AUTOMATIC TRANSFER SWITCH
A. Reliability
CB-level ATS is designed to handle higher electrical loads, mCB-level making them ideal for applications that require a robust and reliable power transfer solution.
B. Safety
Automatic transfer switches protect equipment and personnel from electrical hazards by automatically isolating faulty power sources and preventing them from harming the connected devices.
C. Flexibility
CB-level automatic transfer switches are compatible with various power sources, such as generators and utility power, making them suitable for a wide range of applications.

Features:
High-quality design, reasonable structure
Full protection
Simple installation and easy operation
Reliable remote double-break
Reliable conversion for optimized energy
CE approval
