DIGITAL TIME SWITCH KG316T FOR STREET LIGHT

(0 reviews)

(135) Views

(0) Contacts

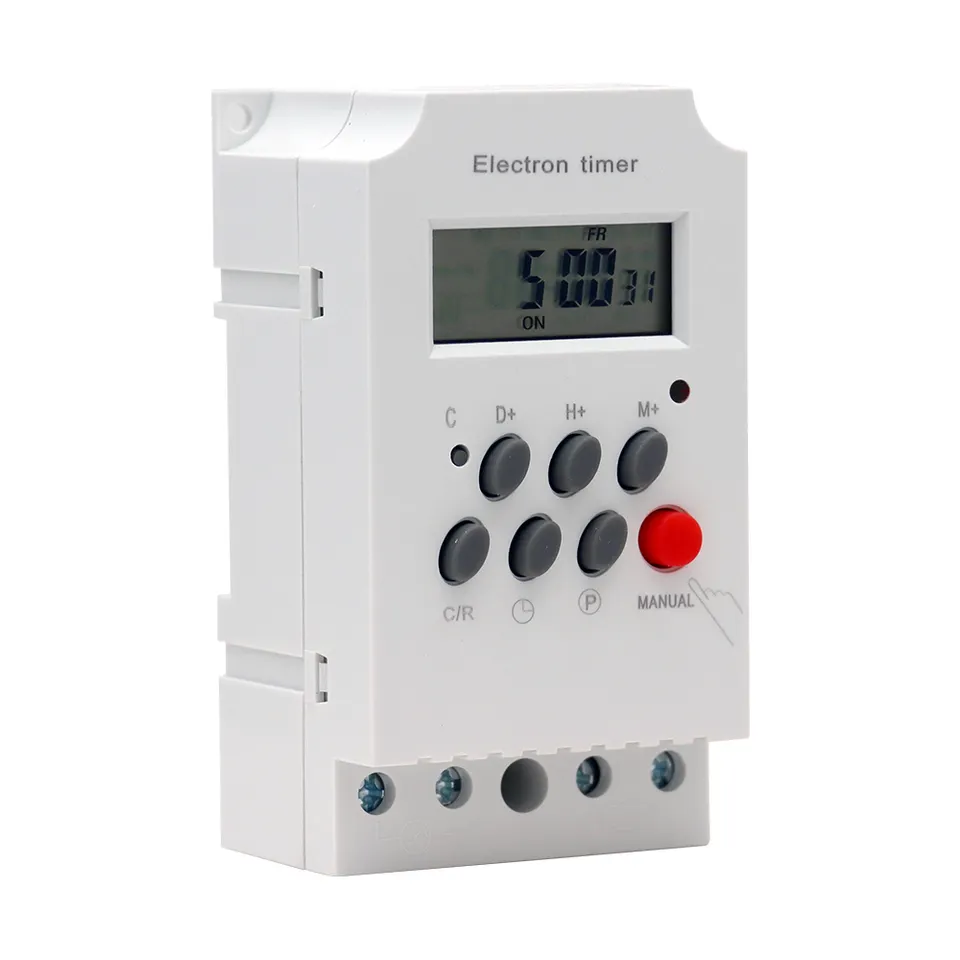

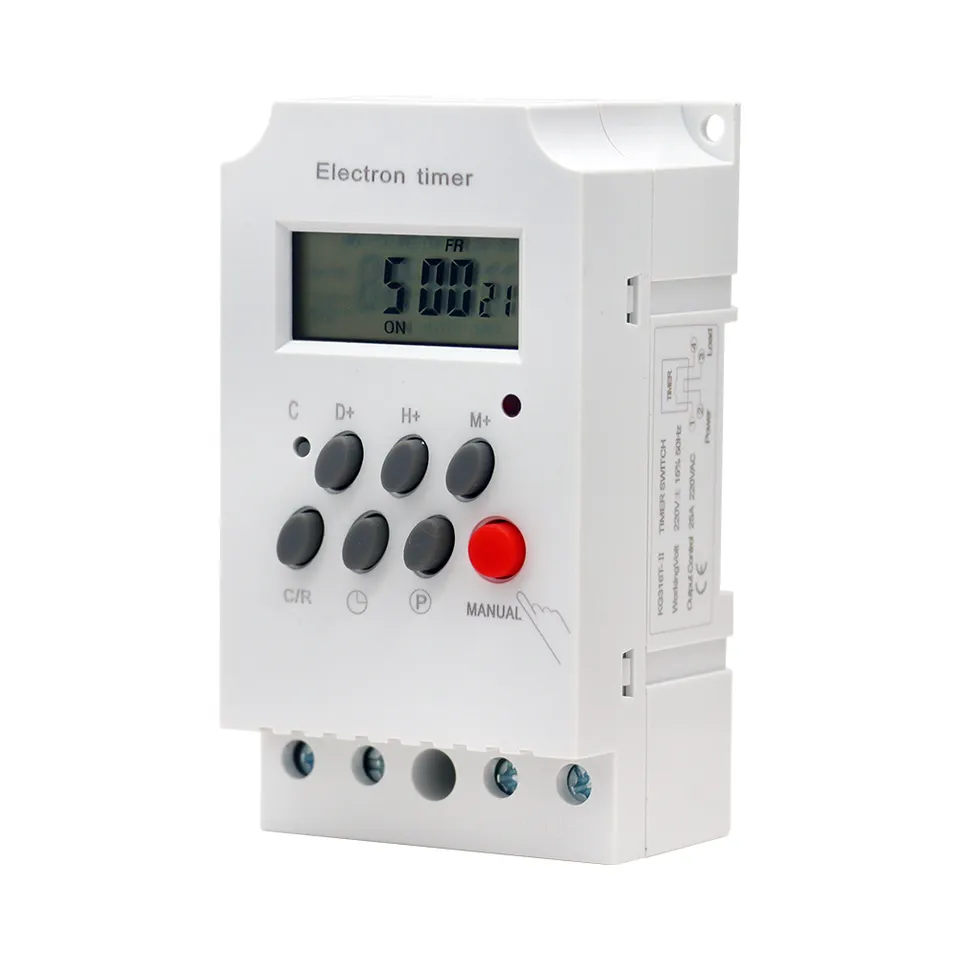

KG316T time control switch is used in the automatic control circuit with AC 50HZ and rated control power supply voltage up to 380V, as the timing on and off control of street lamps, advertising light boxes, and other equipment.

$1.85 - $3.85/ piece |10 piece/pieces

Contact Company

Mindian Electric Co., Ltd.

Zhejiang, China

(702) Views

(5) Contacts

DIGITAL CLOCK SWITCH KG316T FOR ROADSIDE ILLUMINATION
The KG316T digital clock switch is an innovative device designed to control electrical systems, such as lighting, based on a pre-set time schedule. With its advanced programming capabilities and high reliability, the KG316T has become a popular choice for managing roadside illumination systems, ensuring optimal energy efficiency and safety.
Importance of roadside illumination
Roadside illumination plays a critical role in maintaining safe and efficient transportation systems. Proper lighting reduces accidents, enhances visibility for drivers, pedestrians, and cyclists, and contributes to overall urban aesthetics. Therefore, having a reliable and efficient system to manage roadside lighting is essential.

                                                            Model
                                                            KG316T

                                                            Rated Control Power Supply Voltage
                                                            AC 220V 50HZ,AC 380V 50HZ

                                                            Installation Method
                                                            Device Type, Guide Rail Type, Wall-mounted Type

                                                            Allowable Fluctuation Range Of Rated Control Power Supply Voltage
                                                            85%~110%

                                                            Internal Power Supply
                                                            No. 7 Battery (replaceable)

                                                            Ambient Temperature
                                                            -5°C~+40°C

                                                            Way Of Working
                                                            Manual Open, Manual Close, Automatic Switch

                                                            Programmable Number
                                                            16 Groups

                                                            Time Control Range
                                                            1min~168h

                                                            Mechanical Life
                                                            1x10^6

                                                            Timing Error
                                                            +2s/d

                                                            Output Method
                                                            1 No Contact

                                                            Other Functions
                                                            Delay Sleep Function, Automatic Calibration Function

                                                            Electrical Life
                                                            1x10^5

                                                            Contact Rating
                                                            Ue/le: AC-15 240V/3A,AC-12 240V/30A;lth: 30A Ue/le: AC-15 415V/1.9A,AC-12 415V/10A;Ith: 10A

COMMON USE CASES FOR THE KG316T IN ROADSIDE ILLUMINATION
Streetlights
KG316T is perfect for managing streetlight systems, ensuring that they turn on and off at the right times to maintain safety and visibility while conserving energy.
Pedestrian Crossings
The KG316T can be used to control the lighting at pedestrian crossings, ensuring that they are well-lit during peak hours and darker periods while reducing energy usage when the crossings are less frequented.
Traffic Signals
Automating traffic signal lighting with the kg316t can help maintain consistent illumination, improve safety at intersections, and reduce the need for manual monitoring.
Outdoor Advertising
The KG316T can also be utilized to manage the lighting for outdoor advertising displays, ensuring that they are illuminated during peak visibility hours and conserving energy during off-peak times.
Park And Recreational Area Lighting
Proper lighting in parks and recreational areas is crucial for safety and usability. The kg316t can be employed to control lighting systems in these areas, ensuring that they are well-lit when needed and conserving energy when not in use.

Features:

Mainly used In AC 50HZ 380V
Turn on and off street lamps and advertising light boxes
The built-in battery can be replaced
Delay sleep, auto-calibration
Manual open, manual close, automatic switch
Device type, guide rail type, wall-mounted type

KEY FEATURES OF THE KG316T DIGITAL CLOCK SWITCH
Ease Of Use
The KG316T is designed with user-friendliness in mind. Its intuitive interface and easy-to-read digital display make programming and monitoring a breeze.
Advanced Time Control
With 17 on/off settings, the KG316T provides precise control over your lighting schedule. It also offers a built-in rechargeable battery backup to ensure that the timer remains functional even during power outages.
Power Saving
By allowing you to control when your lights turn on and off, the KG316T can significantly reduce energy consumption and lower your electricity bills.
Durability And Weather Resistance
The KG316T is designed to withstand harsh outdoor conditions, making it an excellent choice for managing roadside illumination systems.
BENEFITS OF USING KG316T FOR ROADSIDE ILLUMINATION
Improved Visibility And Safety
By automating your lighting system, the KG316T ensures that your lights are turned on and off at the right times, providing consistent illumination and enhancing road safety.
Energy Efficiency
The KG316T enables you to schedule your lighting more efficiently, ultimately reducing energy consumption and contributing to a greener environment.
Flexibility In Scheduling
With the KG316T, you can easily adjust your lighting schedule based on factors like seasonal changes, special events, or local regulations.
Reduced Maintenance
Automated control of your lighting system reduces the need for manual intervention and minimizes maintenance costs.
