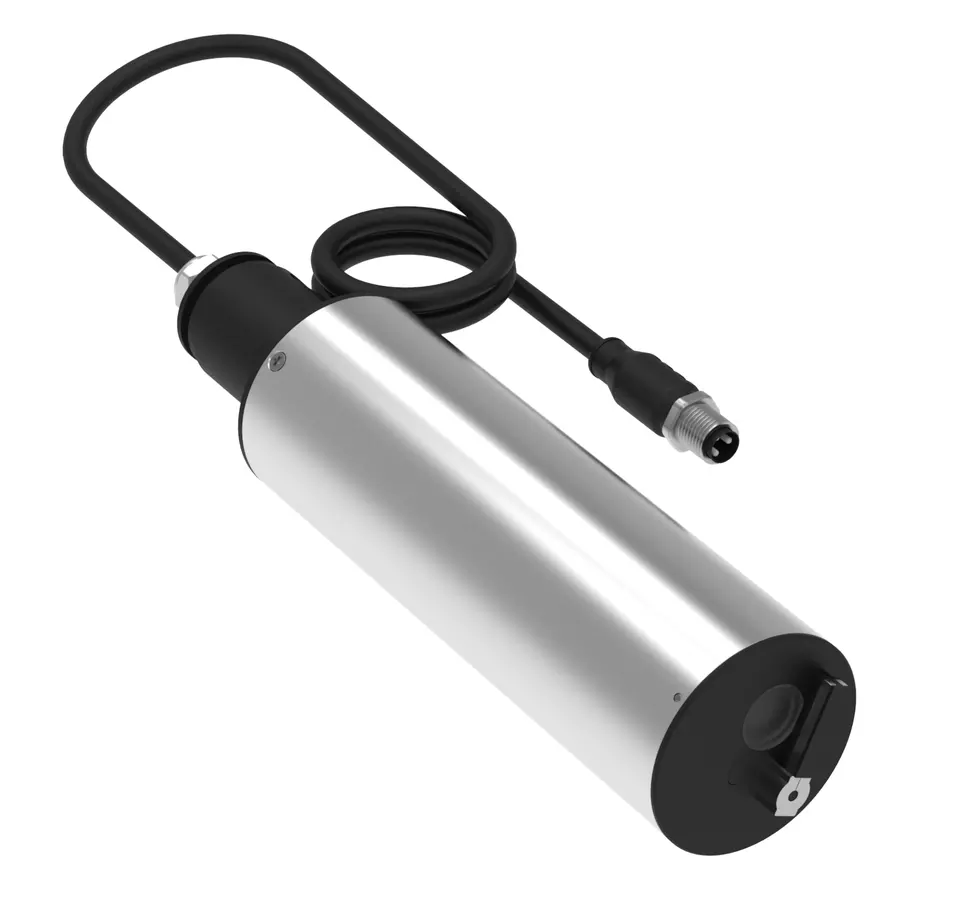

Online Turbidity Meter Probe

(0 reviews)

(159) Views

(0) Contacts

100% test before shipment Reliable Online Turbidity Meter Probe Price Manufacturers. ISO manufacturing with CE certificate FUZHOU PROBEST

Contact Company

Fuzhou Probest Intelligent Technology Co., Ltd.

Fujian, China

(640) Views

(3) Contacts

                                                            Model
                                                            UNI20 PTU800

                                                            Brand
                                                            PROBEST

                                                            Code
                                                            90268090

                                                            Measurement range
                                                            Turbidity：0.01-100 NTU，0.01－4000 NTU

                                                            Cable   length
                                                            Standard:10m,the   maximum may be extended to 100m

                                                            Measurement   accuracy
                                                            Less  than±2%  of    the  measured  reading     or ±0.1NTU,whichever is   greater

                                                            Weight
                                                            Sensor：1.65KG；Transmitter：1.35KG

                                                            Protective rate
                                                            Sensor：IP68/NEMA6P；Transmitter：IP65/ NEMA4X

                                                            Pressure range
                                                            ≤0.4Mpa

                                                            Flow   rate
                                                            ≤2.5m/s、8.2ft/s

                                                            Dimension
                                                            Sensor：Dia 60mm*L 256mm  Transmitter：145*125*162mm(L*W*H)

                                                            Calibration
                                                            Sample calibration,Slope calibration

                                                            Main   material
                                                            Body：SUS316L（fresh   water），Titanium alloy (marine)；  Cover：POM；Cable：PUR

                                                            Communication   protocol
                                                            MODBUS RS485  Storage temperature  -15-50℃  Measuring   temperature  0-45℃（Non-freezing）

                                                            Power supply
                                                            AC：85-500VAC (50/60HZ)    DC：9~36VDC

                                                            Output
                                                            3-way 4-20mA

                                                            Relay
                                                            Three-way relays, programmed response parameter  and response value.

1. Turbidity online monitoring of water inlet, settling basin of the water plant.
2. Turbidity online monitoring of sewage plants, industrial process water, and wastewater treatment.

1. The sensor adopts dual-beam infrared scattered light photometer detection technology and has good repeatability and stability.
2. Use ISO7027 Standard Method (Infrared light scattering technique) to eliminate the effects of sample color.
3. Built-in self-diagnosis function to ensure the accuracy of data. Optional cleaning brush with an automatic cleaning function to reduce the maintenance of the sensor.
4. Digital sensor, high anti-jamming capacity, and far transmission distance.
5. Standard digital signal output, can achieve integration and networking with other equipment without a controller.
6. Plug-and-play sensors, quick and easy installation.
