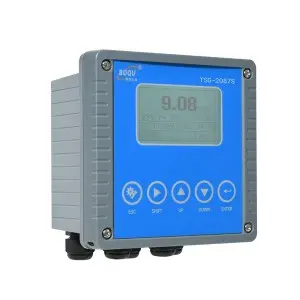

Industrial Total Suspended Solids (TSS) Meter

(0 reviews)

Get Price

(564) Views

(0) Contacts

Contact Company

Shanghai BOQU Instrument Co., Ltd

Shanghai, China

(2213) Views

(11) Contacts

The transmitter can be used to display data measured by the sensor, so the user can get the 4-20mA analog output of the transmitter’s interface configuration and calibration. And it can make relay control, digital communications, and other functions a reality.
What are Total Suspended Solids(TSS)?
Total suspended solids, as a measurement of mass, are reported in milligrams of solids per liter of water (mg/L) 18. Suspended sediment is also measured in mg/L 36. The most accurate method of determining TSS is by filtering and weighing a water sample 44. This is often time-consuming and difficult to measure accurately due to the precision required and the potential for error due to the fiber filter 44.
Solids in water are either in true solution or suspended. Suspended solids remain in suspension because they are so small and light. Turbulence resulting from wind and wave action in impounded water, or the movement of flowing water helps maintain particles in suspension. When turbulence decreases, coarse solids quickly settle from water. Very small particles, however, may have colloidal properties and can remain in suspension for long periods even in completely still water.
The distinction between suspended and dissolved solids is somewhat arbitrary. For practical purposes, filtration of water through a glass fiber filter with openings of 2 μ is the conventional way of separating dissolved and suspended solids. Dissolved solids pass through the filter, while suspended solids remain on the filter.

                                                            Model No
                                                            TBG-2087S

                                                            Output
                                                            4-20mA

                                                            Communication Protocol
                                                            Modbus RTU RS485

                                                            Measure Parameters
                                                            TSS, Temperature

                                                            Features
                                                            IP65 protection grade, 90-260VAC wide power supply

                                                            Measuring range
                                                            0~1000mg/L, 0~99999 mg/L, 99.99~120.0 g/L

                                                            Accuracy
                                                            ±2%

                                                            Warranty Period
                                                            1 year

                                                            Size
                                                            144*144*104mm  L*W*H

                                                            Waterproof Rate
                                                            IP65

                                                            Weight
                                                            0.9kg

                                                            Shell Material
                                                            ABS

                                                            Operation Temperature
                                                            0 to 100℃

                                                            Power Supply
                                                            90 – 260V AC 50/60Hz

                                                            Output
                                                            4-20mA

                                                            Relay
                                                            5A/250V AC   5A/30V DC

                                                            Digital Communication
                                                            MODBUS RS485 communication function, which can transmit real-time measurements
