Glass Fused To Steel Tank

(0 reviews)

Get Price

(157) Views

(0) Contacts

Contact Company

Hebei Wansheng Environmental Protection Engineering Co.,Ltd.

Hebei, China

(615) Views

(2) Contacts

Glass-Fused-to-Steel Tanks is made of glass fused to a steel plate, special sealing material, self-locking screw, and other materials. The thickness of the enamel steel plate can reach to 20 mm, the most used steel plate thickness is 3~10 mm, steel plate has surface oil, contain rust, contain oxide skin, after shot blasting, sand, and another pretreatment process, the steel plate surface will be clean. After 900 ℃ high-temperature second enameling in an electric furnace, 0.3 mm enamel coating is applied on both sides of the steel plate. strong binding force between enamel coating and steel plate. Enamel coating can not only prevent tank corrosion but also has the function of strong acid and alkali resistance. And has extremely strong wear resistance.

Glass Fused to Steel Tanks Installation

Glass-Fused-to-Steel tanks are made from individual sections including steel plates, valves, doors or manhole covers, and roofs. All the individual sections are manufactured and finished offsite to greatly reduce the time and labor involved in the field. Unlike conventional concrete or welded storage solutions, which require extensive fabrication and finishing processes onsite, Glass-Fused-to-Steel tanks offer quick installation and lower shipping costs, and they can be assembled in nearly any type of weather, eliminating many weather-related delays.

Bio-energy
Municipal sewage
Industrial wastewater treatment

Features of Glass-Fused-to-Steel Tanks

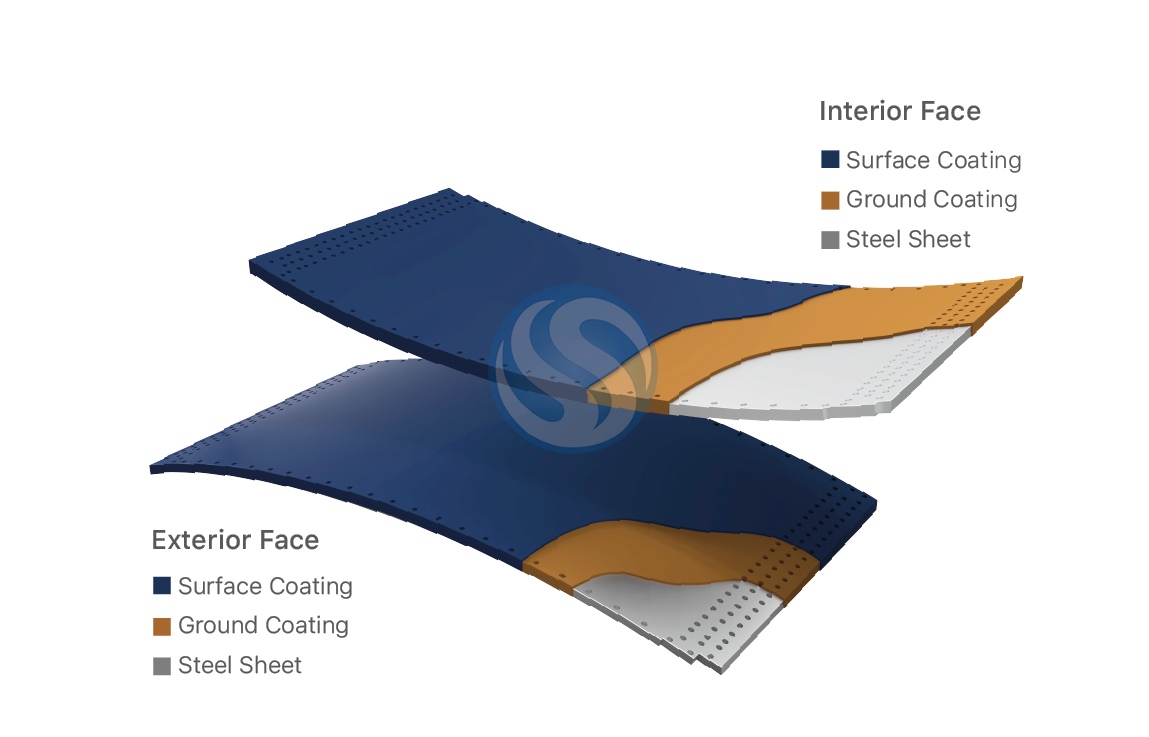

GFS is lined with glass enamel both inside and outside. The enamel is a strong, smooth, and shiny silicate coating. It is melted in a special furnace with a temperature range of 780 to 900 degrees Celsius.
The steel circular (cylindrical) shell of the tank is made of two layers of glass fused sheets, coated on both sides. These plates are fixed with special high-grade bolts and sealed by a continuous flexible silicone (sealant).
Glass-Fused-to-Steel Tanks are popular because of their durability and long service life. Fused coatings are suitable for any application, but they are particularly effective in retaining corrosive liquids (such as wastewater and landfill leachate) because the coatings can withstand chemical attacks that can damage and degrade other types of storage tanks.
GFS storage tanks never need to be repainted, no matter what is stored in them, they can be cleaned with an electric washing machine and almost no maintenance is required.
The connecting materials and housing accessories are all surface-treated. Glass fused to steel tanks can be used to store fluids or lost materials. The characteristic of these storage tanks is that they have been approved for use as industrial storage tanks.
GFS/GLS tanks are also the basic building elements of environmental technology facilities, such as wastewater treatment, fire-fighting water storage, and anaerobic digestion tanks.
Strong technical service support from Wansheng will also be guaranteed.

Advantages of Glass-Fused-to-Steel Tanks

Short erection period, cost-effective tank solution
Excellent corrosion resistance, the longevity of more than 30 years
Easy to install, without large installation equipment and/or very skilled labors
Tank volume can be easily expanded, dismantled, removed, and relocated
Elegant appearance, tank color can be customized
Ideally suited for almost all climates with extreme weather conditions
