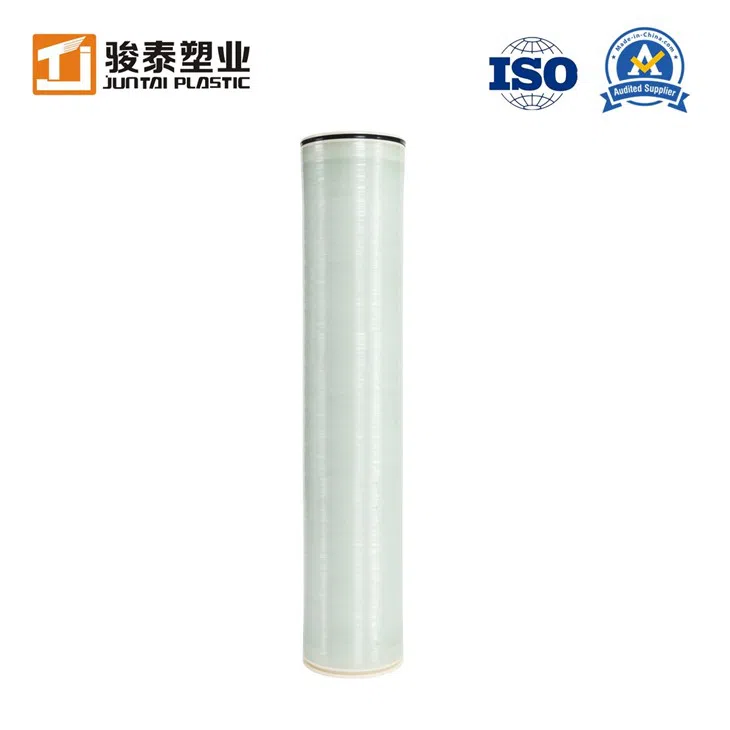

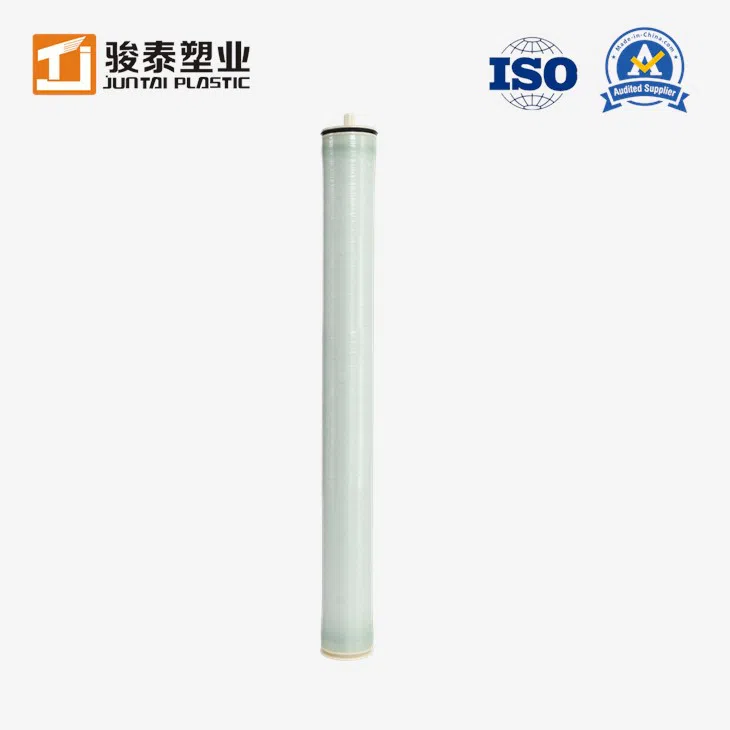

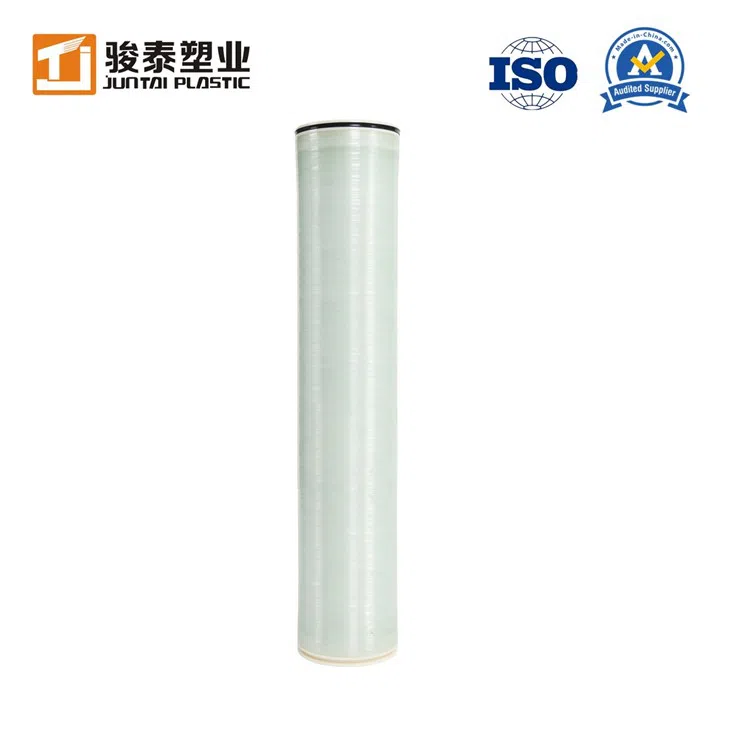

Juntai Nanofiltration membrane for separation and concentration

Juntai Series of nanofiltration membranes are specially developed for the material concentration and separation fields. They are suitable for industries such as salt mine recycling, zero discharge of high saltwater, material separation, and purification.
JuntaiF1 series: it has a high removal rate of total organic carbon (TOC) and a medium rejection rate of inorganic salts. It is embedded with ultralow pressure and pollution-resistant membrane preparation technology to realize the double Improvement of service life and operation energy consumption cutdown in the field of advanced treatment of wastewater. JuntaiF2 series: high rejection rate for multivalent ions, a low rejection rate for monovalent ions, accurate molecular weight interception, and also suitable for the separation and purification of small molecule pharmaceutical drugs. A special grid design is adopted in the inlet channel, which makes the product more obvious advantages in pollution resistance and easy cleaning.

Product Specifications:

Element Model	A	B	C	D
	mm (in)	mm (in)	mm (in)	mm (in)
JTF1/JTF2-8040	1016 (40)	201 (7.9)	29 (1.125)	—
JTF1/JTF2-4040	1016 (40)	96 (3.8)	19 (0.75)	27 (1.05)

Product Performance:

Item Element Parameter	Model	Parameters
		JTF1-8040	JTF l-4040	JTF2-8040	JTF2-4040
	Material of membrane	Polypiperazine-amide
	Structure	spiral wound
	Effective Membrane Area(m)		7.6	37	7.6
	Espace Thickness(mil)	34
Performance	Standard Test Solution	2000mg/L MgSOa 500mg/L NaCl
	Operation Pressure (MPa)	0.50		0.75
	TestTemperature (°C)	25
	Recove ry/Ele me nt (%)	15
	PH	6.5-7
	Permeate Flow Rate	40/10500	8/2100	38/10000	7.6/2000
	Rejection Rate(%)	> 98 (MgSO4) 30±10 (NaCl)		> 99.0 (MgSO。 60±10 (NaCl)
Application limits	Max. Operation Pressure(MPa)/GPM	4.1/600
	Max. Feed Flow(m3/h)/GPM	17/75	3.6/16	17/75	3.6/16
	Feed Temperature Range(°C)	5-45
	Feed pH Range	3-10
	cleaning pH Range	2-11
	Max. Feed Turbidity NTU	1.0
	Max. Feed SDI	5
	Residual Chlorine Control (mg/L)	<0.1
	Max Pressure DropofSingle Element (psi)	15

                                                            Membrane Material
                                                            Homogeneous PVDF Effective

                                                            Membrane Area (m)
                                                            52

                                                            Nominal Pore Size (pm)
                                                            0.03

                                                            Fiber Inside/Outside Diameter (mm)
                                                            0.7/1.3

                                                            Dimension (mm)
                                                            <1)225X1860

                                                            Inlet&Outlet Connection
                                                            DN50

Product Features and Advantages

1. Double affect separation:
Collaborative regulation technology for physical sieve and electrostatic repulsion2.On-demand
2. interception:
Different interception precision can be customized according to requirements
3. Avdrophilic and pollution resistance:
Introduction of hydrophilic groups withstanding wider and more frequent chemical cleaning
4. Secondary polymerization:
It can inhibit the surface defects of the film and be fearless of high saltwater
