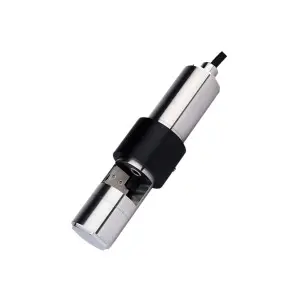

Industrial Turbidity Sensor Output 4-20mA

(0 reviews)

Get Price

(444) Views

(0) Contacts

Contact Company

Shanghai BOQU Instrument Co., Ltd

Shanghai, China

(2213) Views

(11) Contacts

Online turbidity sensors for online measurement of scattered light suspended in the degree of opaque liquid insoluble particulate matter produced by the body and can quantify levels of suspended particulate matter.

What is Turbidity?

Turbidity, a measure of cloudiness in liquids, has been recognized as a simple and basic indicator of water quality. It has been used for monitoring drinking water, including that produced by filtration for decades. Turbidity measurement involves the use of a light beam, with defined characteristics, to determine the semi-quantitative presence of particulate material present in the water or other fluid sample. The light beam is referred to as the incident light beam. The material present in the water causes the incident light beam to scatter and this scattered light is detected and quantified relative to a traceable calibration standard. The higher the quantity of the particulate material contained in a sample, the greater the scattering of the incident light beam and the higher the resulting turbidity.
Any particle within a sample that passes through a defined incident light source (often an incandescent lamp, light emitting diode (LED), or laser diode), can contribute to the overall turbidity in the sample. The goal of filtration is to eliminate particles from any given sample. When filtration systems are performing properly and monitored with a turbidimeter, turbidity of the effluent will be characterized by a low and stable measurement. Some turbidimeters become less effective in super-clean waters, where particle sizes and particle count levels are very low. For those turbidimeters that lack sensitivity at these low levels, turbidity changes that result from a filter breach can be so small that it becomes indistinguishable from the turbidity baseline noise of the instrument.
This baseline noise has several sources including the inherent instrument noise (electronic noise), instrument stray light, sample noise, and noise in the light source itself. These interferences are additive and they become the primary source of false positive turbidity responses and can adversely impact the instrument detection limit.

                                                            Model No
                                                            TC100/500/3000

                                                            Outputl
                                                            4-20mA

                                                            Power Supply
                                                            DC12V

                                                            Features
                                                            Scattered light principle, automatic cleaning system

                                                            Measuring range
                                                            0~100 NTU, 0~500 NTU, 3000NTU

                                                            Inlet pressure
                                                            0.3~3MPa

                                                            Suitable temperature
                                                            5~60℃

                                                            Output signal
                                                            4~20mA

                                                            Features
                                                            Online measurement, good stability, free maintenance

                                                            Accuracy
                                                            <FS (Full scale) ± 2%

                                                            Reproducibility
                                                            <FS± 1%

                                                            Resolution
                                                            0.01NTU

                                                            Hourly drift
                                                            <0.1NTU

                                                            Relative humidity
                                                            <70％RH

                                                            The power supply
                                                            12V

                                                            Power consumption
                                                            <25W

                                                            Dimension of the sensor
                                                            Φ 32 x163mm (Not including the suspension attachment)

                                                            Weight
                                                            1.5kg

                                                            Sensor material
                                                            316L stainless steel

                                                            Deepest depth
                                                            Underwater 2meters

Can be widely used in site online turbidity measurements, power plants, pure water plants, sewage treatment plants, beverage plants, environmental protection departments, industrial water, wine industry and the pharmaceutical industry, epidemic prevention departments, hospitals, and other departments.

1. Check and clean the window every month, with an automatic cleaning brush, and brush for a half hour.
2. Adopt sapphire glass to realize easy maintenance, when cleaning adopts scratch-resistant sapphire glass, don't worry about the wear surface of the window.
3. Compact, not fussy installation place, just put in to can complete the installation.
4. Continuous measurement can be achieved, built-in 4~20mA analog output can transmit data to the various machine according to the need.
5. Wide measurement range, according to different needs, providing 0-100 degrees, 0-500 degrees, and 0-3000 degrees three optional measurement ranges.
