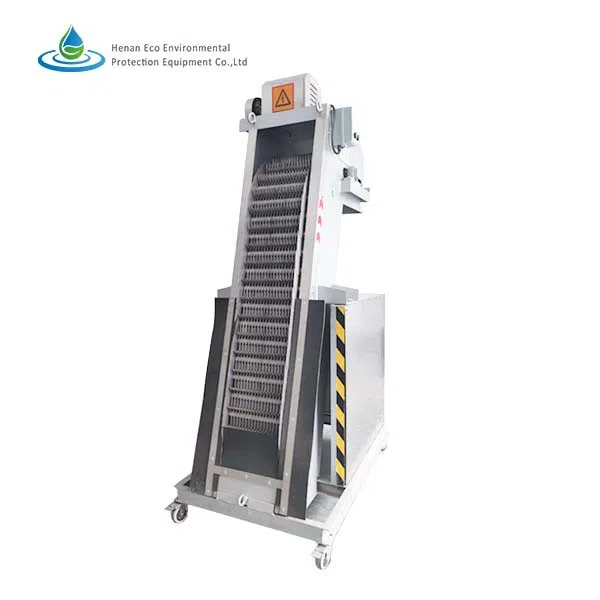

LK-GS Mechanical Bar Screen is automatic equipment that is being installed directly in the channels of wastewater treatment plants, during the continuous operation phase what does not pass through the spacing of the grid is collected and discharged from the discharge spout located at the top of the machine.
The smooth-running, endless track system employs a gear-driven cleaning rake to carry screenings from the submerged bar rack to a discharge chute for removal – without the use of chains, sprockets, cables, or any underwater moving parts.

                                                            Frame Width
                                                            500~3000mm(customized by tank width)

                                                            Fastener
                                                            SUS 304

                                                            Available clearance
                                                            2,3,5,8,10,20mm(optional)

                                                            Reducer
                                                            CYCLO

                                                            Mounting Angle
                                                            75°

                                                            Cover
                                                            SUS 304

                                                            Slagging Height
                                                            800mm from floor level

                                                            Driving chain
                                                            SUS 304

                                                            Rack
                                                            SUS304, thickness≥6mm

                                                            Cleaning Bar
                                                            SUS304

                                                            Chain wheel and guide wheel
                                                            ASTM SUS 304

                                                            Bar Shaft
                                                            SUS 304, diameter≥18mm
