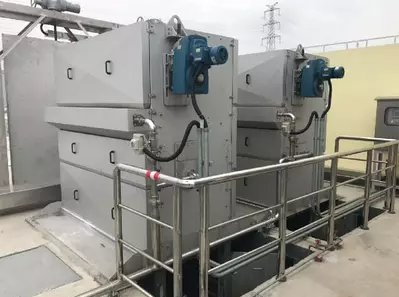

Automatic In-Feeding Plate Mesh Screen

(0 reviews)

Get Price

(514) Views

(0) Contacts

Category: Screens

Contact Company

HC Flourish Industry Group Co.,Ltd.

Zhejiang, China

(2299) Views

(13) Contacts

The structure and working principle Of the internal flow

the fine grille is mainly composed of the drive device, the gate frame, the gate frame support system, the flushing system, the control system, and other components.
When working, sewage enters from the front of the grid frame, the grid slag is intercepted by the grid, after the grid slag is intercepted through the grid teeth, the grating slag is flushed by pressure water and gravity bar slag into the body funnel, and then transported to the garbage can or high-draining spiral press for dewatering after removal.
Inward flow rotating fine grille unique way of water intake, sewage into the grille after the dirt is completely intercepted, removed.
Will no longer be brought into the grille (and the garbage intercepted by a rotary decontamination machine with grille forward water may be brought back into the channel behind the grille, not to achieve the desired treatment).

Main features
1. High capture rate: a unique way of water intake, to ensure the efficient capture of all types of small grid slag.
2. Large flow: single-channel grid overwater design, greatly improve the flow of water and reduce the loss of water head small.
3. Save time: Vertical installation saves space.
4. Easy to maintain: The gate plate is a plug-in for easy removal and replacement.
5. Installation of the whole machine, no need to change the original civil structure, suitable for the update of old equipment.
6. Full automatic control can be achieved by timing and level difference.
