Automatic Polymer Industrial Wastewater Treatment Machine

(0 reviews)

(733) Views

(0) Contacts

This machine is used to waste water treatment. We use separation tank to separator water and Impurities. Sludge will into sludge tank and use filter press to solve it. Water will used and filter and carbob filter tower.

1 Set 2+ Sets

US $89,000 US $85,000

Contact Company

Jiangsu Mooge Machine Co., Ltd.

Jiangsu, China

(1657) Views

(4) Contacts

Model	WT-5	WT-10	WT-15	WT-20
Capacity	5 tons/h	10 tons/h	15 tons/h	20 tons/h
Running Power	13 kw	21 kw	24 kw	26kw
Laber Request	1-2 worker	1-2 worker	2-3 worker	3-4 worker
Line Dimension	1165m	1365m	1675m	1975m

Chemical Feeding

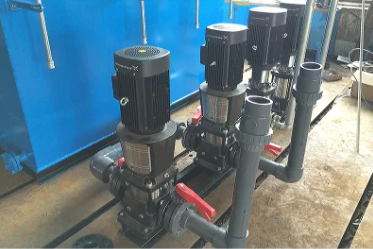

-Three PE Barrel filled with chemical reaction material-Each barrel with individual pump and chemical feeding device
-The PH of the water will be adjusted to best reaction state by the three automatically feeding.

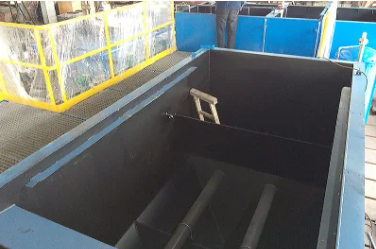

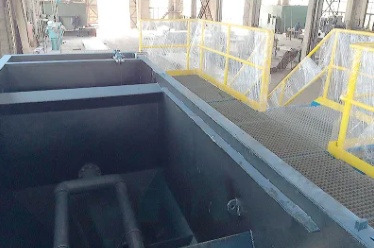

Air Floating Tank
-Used for solid-liquid separation
-With the dissolved air pump and tower will easily separate the solid and liquid water
-The whole tank is made by stainless steel-With sludge scraper made by PVDF

Filter Tank
-Two filter tank: carbon filter tank and sand filter tank-Each tank with the filter material inside
-The tank are also made by stainless steel
-The water after filter will be more clean

Plate and Frame Press Filter
-Press the sludge into dry form for easily carry-away-The sludge after press will get two kinds of form, dry form and liquid form
-Dry form will be carried away and liquid form will come back to the water treatment for further processing

                                                            PH
                                                            8.5~11

                                                            Carbon Filter
                                                            Active carbon

                                                            Specification
                                                            30 Tons

                                                            Production Capacity
                                                            2~50t/H

                                                            Trademark
                                                            mooge

                                                            Origin
                                                            China
