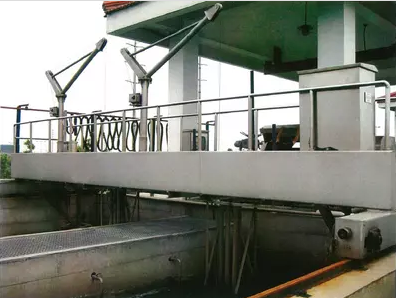

QXS Type Desand Travelling Bridge

(0 reviews)

Get Price

(972) Views

(0) Contacts

Contact Company

HC Flourish Industry Group Co.,Ltd.

Zhejiang, China

(3222) Views

(15) Contacts

Structure and working principle:

The equipment adopts a mobile bridge type and pumps suction type.
When the sand suction machine does not work, it stops at the water inlet end; When the sand suction machine is working, the crane is under the command of electrical control.
When driving along the water flow, put down the skimming board first, scrape and collect the scum and skim it into the steel skimming tank at the pool end; When driving in the reverse direction, the skimming rake is lifted to leave the liquid level to prevent the reverse flow of scum: the sand water at the bottom of the tank is discharged into the sand collecting tank at the side of the tank through the suction pipe by the sand suction pump, and then flows into the sand water separator through the pipe for the next step of treatment, so as to make a round-trip work movement, so as to achieve the purpose of sand suction, sand discharge, and slag removal.

locally / remotely.
1. It can adapt to a horizontal flow grit chamber or aeration grit chamber
2. The wheels at both ends are driven by the central independent driving device to ensure the synchronization of walking. 3. The patented rail clamping anti deviation device will never gnaw the rail
4. Two sand discharge methods, air stripping or pumping, can be selected
5. The water skimming (oil) device port is equipped with an electric control cabinet, and the control equipment operates fully automatically according to the set mode
6. Optional materials: carbon steel Epoxy Corrosion protection, carbon steel hot-dip galvanizing, stainless steel SS304 or SS316L
7. Optional power supply device: safety sliding contact wire, flexible cable and support port, optional accessories: steel rail, etc

Sand water treatment of urban sewage treatment plant or tap water aeration grit chamber to lift the sand particles, cinders, and other large particles at the bottom.
Sewage mixture to the sand discharge tank beside the tank: oil and slag handling devices can be added according to user requirements.
