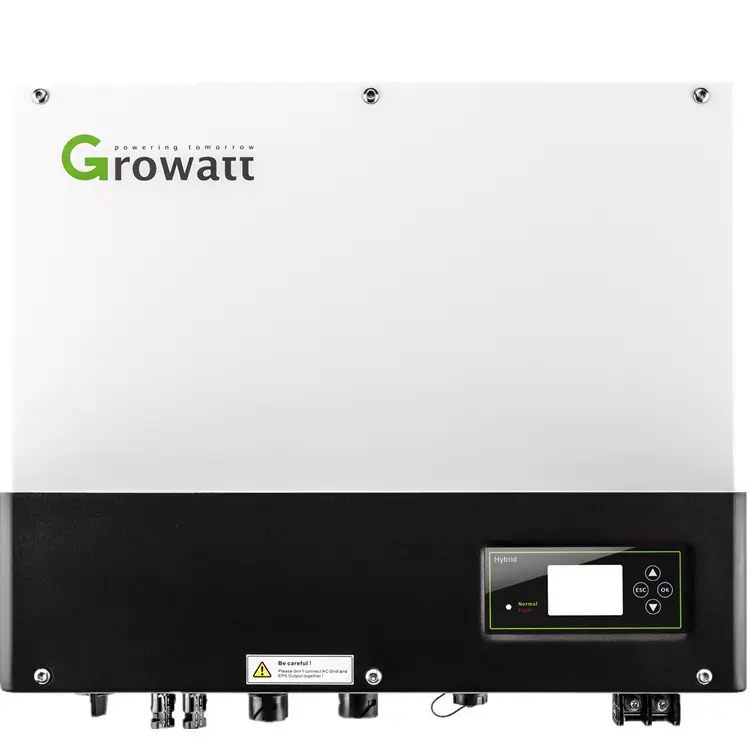

Growatt Inverter 10kw Hybrid Inverter Growatt SPH10000TL3 BH Power Solar Inverter

Contact Company

Anhui Hepburn Energy Technology Co., Ltd.

Anhui, China

(573) Views

(2) Contacts

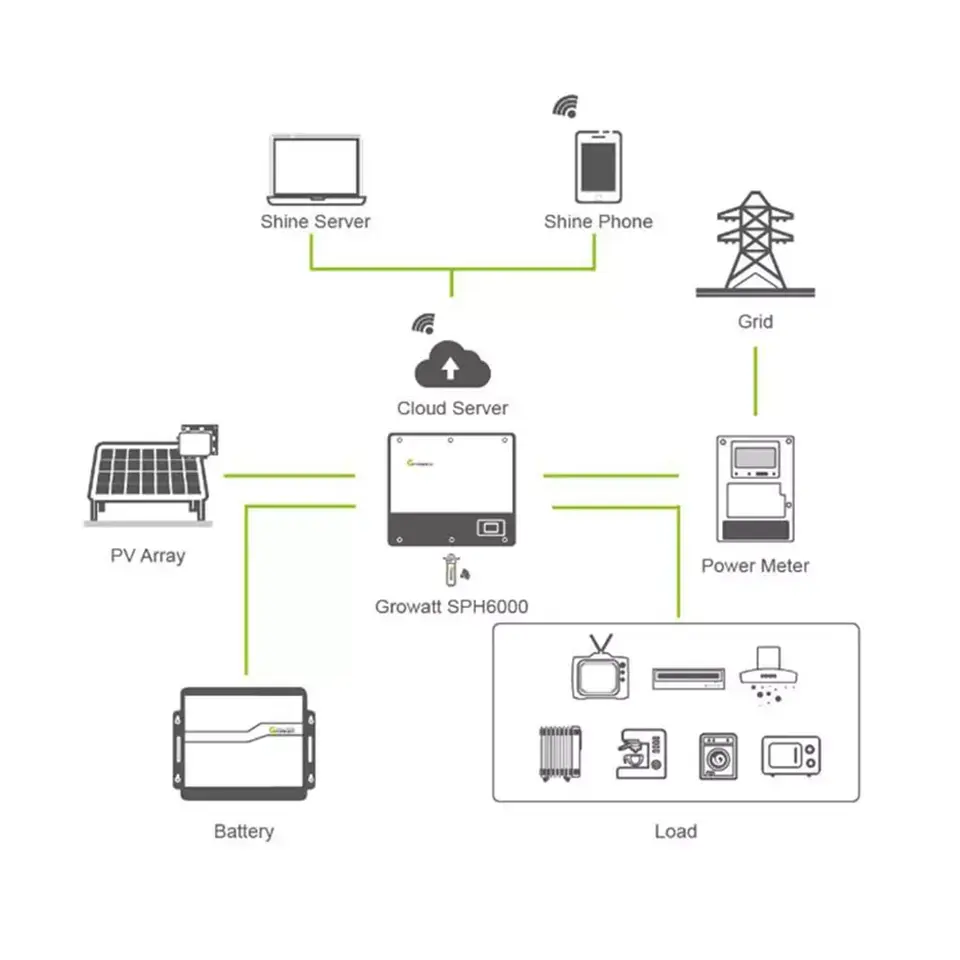

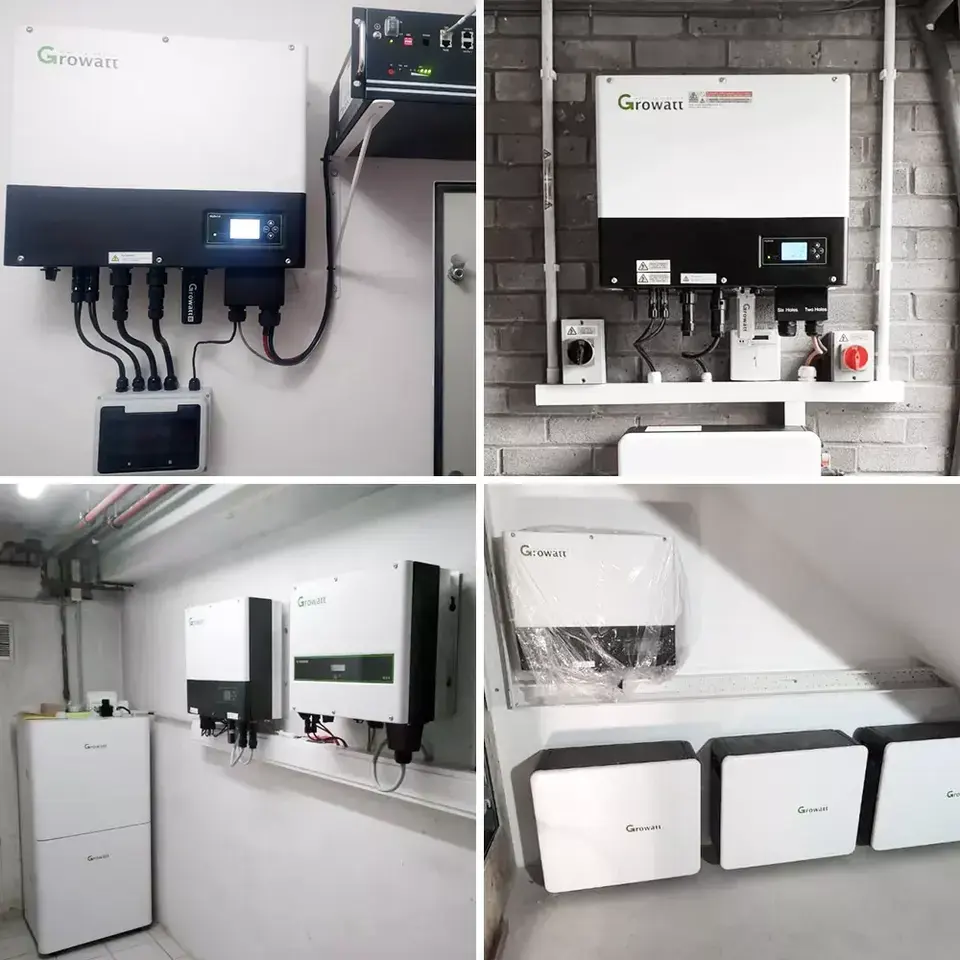

All of the equipment is connected to the hybrid solar inverter, making it the most crucial component of the system. Because hybrid solar inverters can serve as both on- and off-grid inverters, hybrid solar systems enjoy the advantages of both. For household systems, this single-phase all-in-one hybrid inverter is perfect. Beautiful IP65 protection level, more robust and adaptable for installation; several programmable operating modes, allowing you to customize how to achieve self-sufficiency and maximize your system's performance; the EPS output can even serve as a backup supply in the event of a grid outage; extensive accessories, such as a battery, meter, and datalogger, are optional for various application scenarios.

Data

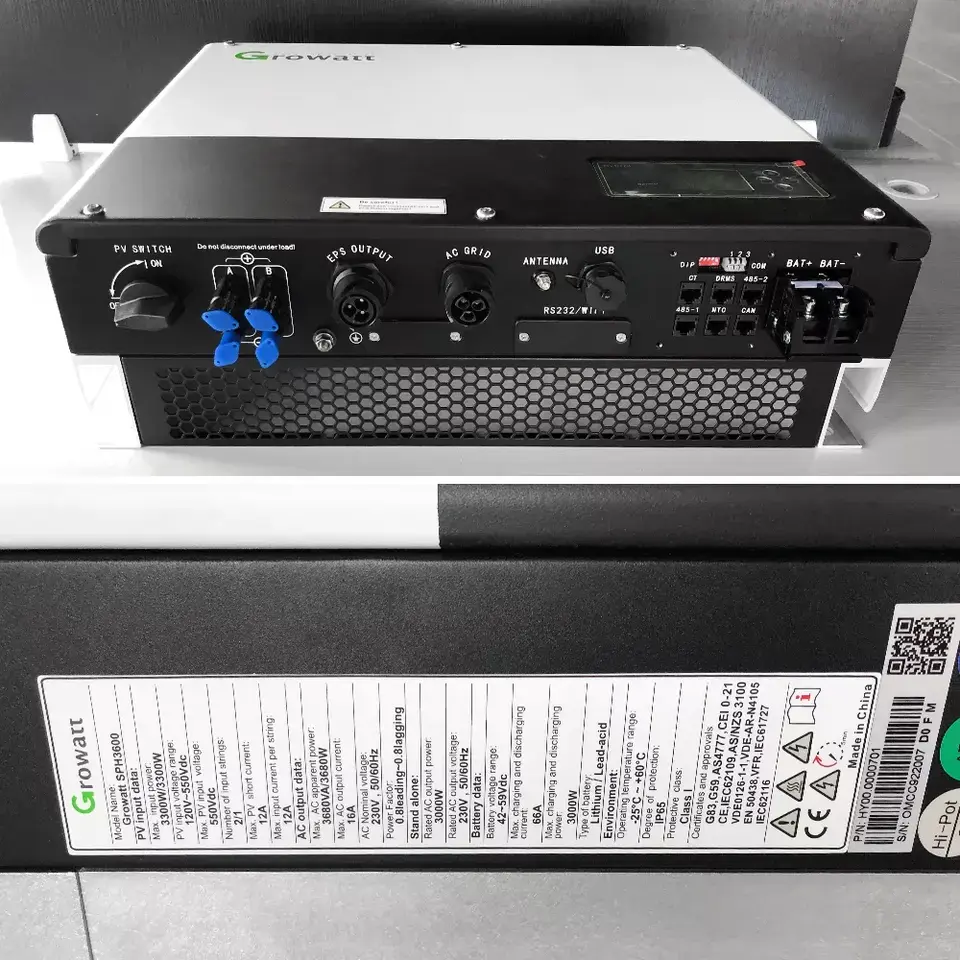

Inverter Model	SPH3000	SPH3600	SPH4000	SPH4600	SPH5000	SPH6000
DC input data
Max. recommended PV power	6600W	6600W	6600W	8000W	8000W	8000W
AC Output
Rated AC output power	3000W	3680W	4000W	4600W	4999W	6000W
Max. AC apparent power	3000VA	3680VA	4000VA	4600VA	5000VA	6000VA
Max. output current	16A	16A	22A	22A	22A	27A
Efficiency
Max. efficiency	97.5%	97.5%	97.5%	97.6%	97.6%	97.7%
Euro European efficiency	97.0%	97.0%	97.0%	97.1%	97.1%	97.1%

                                                            MPPT efficiency
                                                            99.5%

                                                            DC switch
                                                            yes

                                                            DC reverse polarity protection
                                                            yes

                                                            Battery reverse protection
                                                            yes

                                                            Output over current protection
                                                            yes

                                                            Output over voltage protection
                                                            yes

                                                            Integrated all - pole sensitive leakage
                                                            yes

                                                            Ground fault monitoring
                                                            yes

                                                            Grid monitoring
                                                            yes

                                                            Automatic switchover time
                                                            <0.5S

                                                            Capacity of battery
                                                            3~12kWh

                                                            Battery voltage range
                                                            42~59V

                                                            Max. charging voltage
                                                            58V

                                                            Deep of discharging
                                                            80%DOD/50%DOD

                                                            Max charging and discharging  current
                                                            66A

                                                            Battery type
                                                            lithium /Lead-acid

                                                            Max charging and discharging  power
                                                            3000W

                                                            Nominal AC output voltage
                                                            230V

                                                            Rated AC output frequency
                                                            50/60Hz

                                                            Rated AC output voltage
                                                            230Vac

                                                            Nominal grid frequency
                                                            50/60Hz

                                                            Max. output power
                                                            3000W

                                                            Power factor at rated power
                                                            1

                                                            THDI
                                                            <3%

                                                            Start voltage
                                                            150V

                                                            Max. PV voltage
                                                            550V

                                                            PV voltage range
                                                            120V-550V

                                                            MPPT voltage range  /Nominal voltage
                                                            150V-550V /360V

                                                            Number of MPP trackers / strings per MPP tracker
                                                            2/1

                                                            Max. input current of tracker A/B
                                                            12A/12A
