On Off Grid Hybrid Solar Inverter 7200W 8200W 10200W

(0 reviews)

(845) Views

(0) Contacts

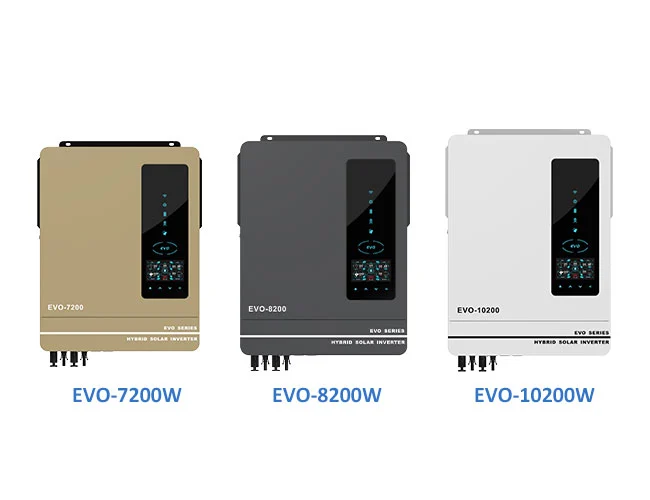

SCI-EVO series 7.2KW 8.2KW 10.2KW inverter is a pure sine wave hybrid solar inverter that can self-consumption and feeds into the grid. With dual PV input and dual AC output and a newly developed colour LCD display screen, supports running without a battery. This 7.2kw to 10.2kw solar inverter is a great solar energy backup power solution for homes and small businesses.

Contact Company

Guangzhou Anern Energy Technology Co., Ltd

messages.no address inserted..

(2258) Views

(2) Contacts

The Details of the Hybrid Inverter with Inbuilt MPPT Controller

Built-in Lithium battery automatic activation can activate the dormant lithium battery by charging.
WIFI function to remotely monitor the real-time running status of the product.
RGB lighting for different working modes: Battery mode, Utility mode, and PV mode.
The inverter can run without batteries, which helps reduce the cost of solar power systems.

                                                            Model
                                                            SCI-EVO-7200  SCI-EVO-8200  SCI-EVO-10200

                                                            Storage Temperature
                                                            –15°C - 60°C

                                                            RATED POWER
                                                            7200W  8200W  10200W

                                                            Maximum PV Input Power
                                                            7200W  8200W  10200W

                                                            Nominal DC Voltage/Maximum DC Voltage
                                                            360VDC/500VDC

                                                            Operating Temperature
                                                            –10°C - 50°C

                                                            Humidity
                                                            5% to 95% Relative Humidity (Non-condensing)

                                                            Start-up Voltage/Initial Feeding Voltage
                                                            90VDC/120VDC

                                                            Communication interface
                                                            WIFI

                                                            MPPT DC Voltage Range
                                                            90-450VDC

                                                            Number of MPPT Trackers/Maximum Input Current
                                                            1/27A  2/18A

                                                            Net Weight (kgs)
                                                            14.2KG  14.2KG  14.5KG

                                                            Nominal AC Output Voltage
                                                            220/230/240VAC

                                                            Dimension, D x W x H (mm)
                                                            500*390*130mm  500*390*130mm  530*390*130mm

                                                            AC Output Voltage Range
                                                            195.5-253VAC

                                                            Maximum AC Charging Current
                                                            120A  140A  160A

                                                            Nominal AC Output Current
                                                            31.3A  35.6A  44.3A

                                                            Maximum Charging Current(Solar to AC)
                                                            140A  160A  160A

                                                            Power Factor
                                                            >0.99

                                                            Nominal DC Voltage
                                                            48VDC  48VDC  48VDC

                                                            Feed-in Grid Frequency Range
                                                            49-51±1Hz / 59-61±1Hz

                                                            Output Waveform
                                                            Pure sine wave

                                                            Maximum Conversion Efficiency (Solar to AC)
                                                            98%

                                                            Efficiency (DC to AC)
                                                            94%

                                                            Nominal Output Voltage
                                                            220/230/240VAC

                                                            Acceptable AC Input Voltage Range
                                                            90-280VAC or 170-280VAC

                                                            Full Load
                                                            7200W  8200W  10200W

                                                            Maximum Main Load
                                                            7200W  8200W  10200W

                                                            Maximum Second Load (battery mode)
                                                            2400W  2733W  3400W

                                                            Main Load Cut-Off Voltage
                                                            44VDC  44VDC  44VDC

                                                            Main Load Return Voltage
                                                            48VDC  48VDC  48VDC

                                                            AC Start-up Voltage/Auto Restart Voltage
                                                            120-140VAC/180VAC

                                                            Surge Power
                                                            14400W  16400W  20400W

                                                            Maximum AC Input Current
                                                            40A  40A  50A

                                                            Nominal Operating Frequency
                                                            50/60Hz

Feature of On Off Grid Hybrid Solar Inverter

Pure sine wave solar inverter
Self-consumption and feed-in to the grid.
Inverter running without battery.
One-key restoration to factory settings.
Built-in lithium battery automatic activation.
Built-in 160A MPPT solar controller (for 8.2KW,10.2KW), 140A(for 7.2KW)
High PV input voltage range(90-450VDC).
Built-in anti-dusk kit for harsh environments.
Smart battery charge design to optimize battery life.
WIFI available for IOS and Android
