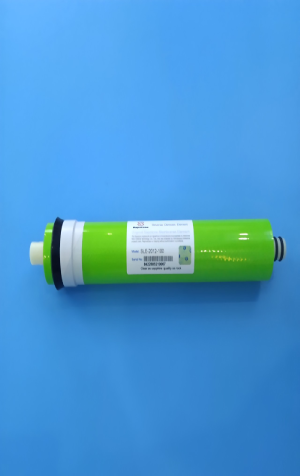

High Flow RO Membrane 100GPD 13 Layers

(0 reviews)

Get Price

(181) Views

(0) Contacts

1000 - 4999 pieces 5000 - 9999 pieces
$3.80 $3.70
>= 10000 pieces
$3.60

Tianjin, China

(1186) Views

(1) Contacts

RO Membrane Performance

Type	Model	Performance			Structural Parameters
		Stable rejection /%	Average permeate flow /Gpd(m3/d)		Effective membrane area /ft2	Flow path width /Mil	Pipe Dia /Mm
LE Series	LE-8040	99.0	11000(41.6)		380	31	28.7
	LE-8040-400	99.0	12500(47.4)		400	30	28.7
	LE-4040	99.0	2500(9.5)		90	31	19.0
	LE-4040-HR	99.5	2300(8.7)		90	31	19.0
	LE-4021	99.0	1000(3.8)		38	31	19.0
	Testing condition
	Testing pressure			150 psi (1.03 MPa)
	Testing Temperature			25 ℃
	Testing concentration (NaCl)			1500 mg/L
	pH Value of testing			7.5
	Recovery of single membrane element			20%
	Operation limits and conditions
	Max working pressure			600 psi (4.14 MPa)
	Max feed water flow			6 gpm(1.36 m3/h)
	Max flow temperature			45 ℃
	Max flowSDI15			5
	Residual chlorine concentration of feed water			<0.1 mg/L
	Ph range of feed water during continuous operation			3~10
	Ph range of feed water during chemical cleaning			2~12
	Max. Pressure drop of single membrane element			15 psi (0.1 MPa)

Applications of RO Membrane Performance

Surface water, groundwater with less than 2000 mg/L of salt, and certain low-pollution water following desalination are all covered by the membrane element. It also applies to replacing the outdated system, desalinating low-salinity water, and enhanced secondary depth treatment, among other things.
At the moment, it is widely used in a variety of fields, including food processing and pharmaceutical manufacturing, water treatment, drinking water supply and drainage in municipal landscape and agricultural irrigation systems, boiler make-up water for hospitals and medical facilities, and laboratory pure water equipment.
