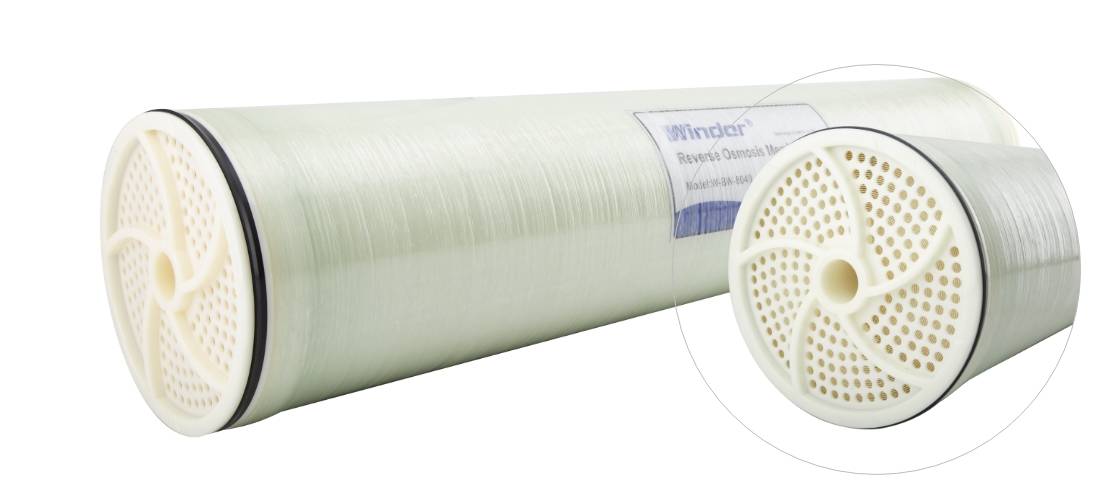

Membrane Element

(0 reviews)

Get Price

(498) Views

(0) Contacts

BW membrane element series has the characteristics of high water production and good desalination performance.

Contact Company

Hebei ChengDa Water Technology Co., Ltd.

Hebei, China

(2389) Views

(80) Contacts

                                                            Max. single membrane element pressure drop
                                                            15 psi (0.1 MPa)

                                                            Active Membrane Ft²(m2)
                                                            400 (37)

                                                            Operational pressure psi (MPa)
                                                            255 (1.55)

                                                            Average yield GPD (m³/d)
                                                            10500 (39.5)

                                                            Salt rejection (%)
                                                            99.5

                                                            Recovery rate (%)
                                                            15

                                                            Max. Operating pressure psi (MPa)
                                                            600 psi (4.1 MPa)

                                                            Model
                                                            W-BW-8040

                                                            PH Range of Feed Water During Continuous Operation
                                                            2–12

                                                            Max. inflow temperature (°C)
                                                            45 °C

                                                            Free chlorine concentration
                                                            ﹤ 0.1 ppm

                                                            Max. inflow SDI
                                                            5

                                                            Max. water flow GPM (m³/h)
                                                            75 GPM (17 m³/h)
